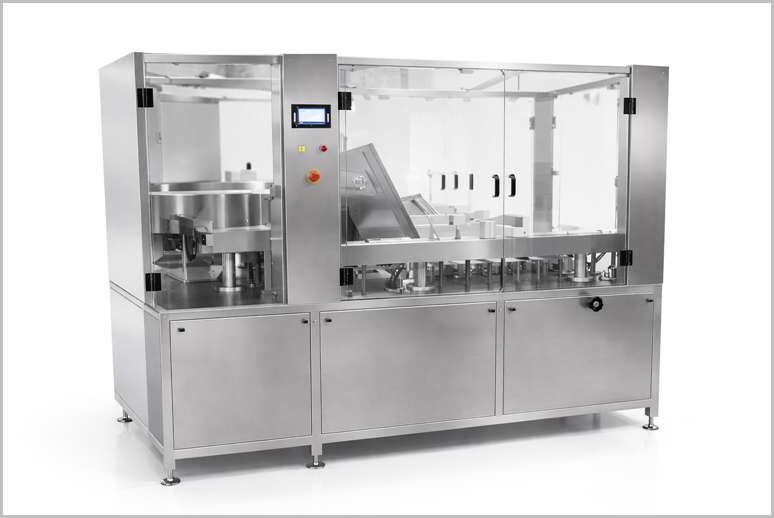

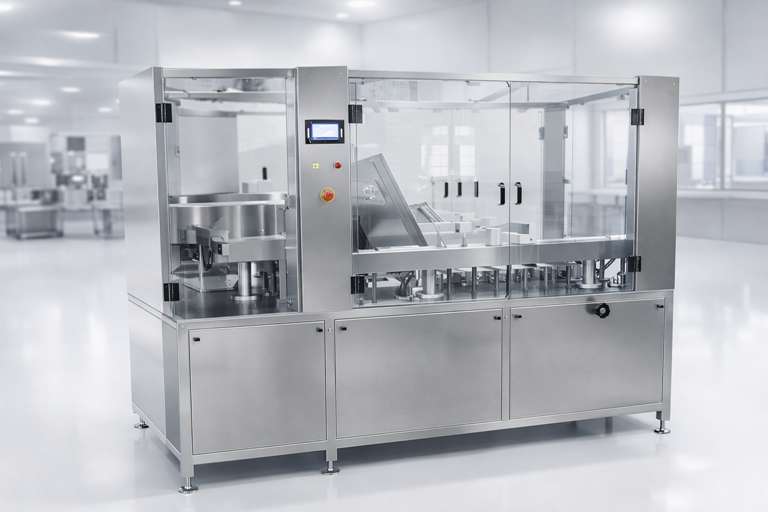

High Speed Bottle Unscrambler

Q: What are the key features of the High Speed Bottle Unscrambler?

High Throughput : Capable of handling large volumes at high speeds. Versatile Bottle Handling : Suitable for various shapes and sizes with quick, tool-less changeovers. cGMP-Compliant Design : Stainless steel construction for hygiene and durability. Advanced Automation : Features safety interlocks, jam detection, precise speed control, and optional air/water rinsing. Compact & Reliable : Ergonomic design with easy integration, low maintenance, and high efficiency (up to 98.5%).

Q: What are the main advantages of using a High Speed Bottle Unscrambler?

Increased Efficiency : Significantly reduces labor costs and boosts production speed. Flexibility : Handles diverse bottle types with minimal adjustments. Hygienic & Reliable : Stainless steel build and optional cleaning systems ensure compliance with industry standards and minimize downtime. Cost-Effective : Lowers long-term operational costs despite the initial investment. Safety : Includes automatic alarms, jam pauses, and operator-friendly features.

Description

High Speed Bottle Unscrambler is an automated packaging machine designed to efficiently sort, orient, and feed empty bottles onto production lines at high speeds, typically for industries like pharmaceuticals, food and beverage, cosmetics, and chemicals. It eliminates the need for manual labor by automatically handling large volumes of disordered bottles and arranging them upright on a conveyor for downstream processes such as filling, capping, and labeling. High-speed bottle unscramblers are essential for automating and optimizing bottling lines, offering high throughput, versatility, and reliability. They are designed to handle a variety of non-fragile bottles with minimal human intervention, ensuring efficiency and compliance with industry standards. When selecting a model, consider production speed, bottle type, space constraints, and integration needs.

If you need details on specific models and pricing, let me know!

Salient Features of High Speed Bottle Unscrambler

Structure body made from high-quality Stainless Steel materials for durability, hygiene, and compliance with cGMP standards.
suitable for various bottle shapes and sizes.
Allows precise speed control to match downstream equipment (filling, capping, labeling) for smooth integration.
cGMP-compliant, with optional features like rinsing (air/water)

safety interlocks, and robust sensors for reliable performance in pharmaceutical, cosmetic, food & beverage, and chemical industries.
Validation support available for regulated industries.
Minimum change-over time with tool-less adjustments for different bottle formats.
easy-to-clean design.

Working Principle of High Speed Bottle Unscrambler

The operation of a High-Speed Bottle Unscrambler typically involves the following steps:

Bottle Loading: Disordered bottles are manually or automatically loaded into a large hopper or elevator, which can hold thousands of bottles.

Sorting and Orientation: Bottles are fed from the hopper to a sorting mechanism (e.g., rotary disk, centrifugal drum, or vibratory bowl). Centrifugal force, belts, or starwheels align bottles into a consistent orientation (upright, neck-up, or base-up).

Transfer to Conveyor: Properly oriented bottles are discharged onto a conveyor belt, often stabilized by air jets or soft conveying systems to prevent tipping or damage.

Integration with Production Line: The unscrambler feeds bottles to downstream equipment (e.g., fillers, cappers) via conveyors or air-fed systems, ensuring a continuous flow.

Limitations of High Speed Bottle Unscrambler

Initial Cost: High-speed models can be expensive, especially for large-scale or custom systems.

Space Requirements: While compact models exist, commercial high-speed unscramblers may require significant floor space.

Fragile Bottles: Not ideal for glass, ceramic, or fragile containers, which may require specialized equipment like depalletizers.

Maintenance: Regular maintenance is needed for rotary or vibratory systems to ensure smooth operation, particularly for high-speed applications.

Types of Bottle Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Bottle Filling Machine

Advantages of High Speed Bottle Unscrambler

Efficiency: Automates bottle feeding, reducing labor costs and increasing production speed compared to manual or semi-automatic systems.

Flexibility: Handles diverse bottle types and sizes with minimal adjustments, making it adaptable to various production needs.

Reliability: High efficiency (up to 98.5%) with minimal downtime due to robust design and automated error correction.

Hygienic Operation: Stainless steel construction and optional cleaning systems (e.g., ionized air rinse) ensure compliance with strict industry standards.

Cost-Effective: Reduces recurring labor costs and improves long-term productivity, despite high initial investment.

Key Features of High Speed Bottle Unscrambler

High Throughput:
- Capable of processing a wide range of speeds, from 60 to over 12,000 bottles per hour, depending on bottle size and machine design.
- Suitable for high-volume production lines, ensuring continuous operation without bottlenecks.

Versatile Bottle Handling:
- Handles various bottle types, including round, square, oval, and rectangular shapes, typically made of plastic or non-fragile materials.
- Accommodates a wide range of bottle sizes, from 1oz (10ml) to gallons (3000ml), often without requiring change parts for different sizes.

Compact and Ergonomic Design:
- Features a low-profile design with a small footprint, ideal for space-constrained facilities.
- Constructed with high-quality stainless steel and FDA-approved materials for durability, hygiene, and compliance with pharmaceutical and food industry standards.

Advanced Sorting Mechanisms:
- Utilizes rotary disks, starwheels, centrifugal force, or vibratory bowls to orient bottles.
- Incorporates multi-stage belts, hook mechanisms, or infeed screws to flip bottles into the correct orientation.
- Auto-reversing disc pre-sorters and sensors automatically clear misfed or jammed bottles, ensuring smooth operation without operator intervention.

Quick and Easy Changeovers:
- Designed for tool-less or minimal change parts, enabling rapid adjustments for different bottle sizes and shapes.
- Features like HMI touchscreens and PLC programming allow for programmable settings and repeatable changeovers.

Automation and Integration:
- Equipped with sensors for Automatic Bottle Feeding, stopping when bottles are full, and starting when supply is low.
- Integrates seamlessly with conveyors, filling machines, cappers, and labelers, acting as a buffer to reduce conveyor length and enhance line efficiency.
- Optional features include ionized air rinsing, vacuum cleaning, bottle coding, inspection, and rejection systems for faulty products.

Safety and Reliability:
- Built with safety features like automatic alarms and pauses for jams, and enclosed designs with transparent panels to reduce noise and ensure operator safety.
- Low failure rates due to high-quality components, imported electrical/pneumatic systems, and robust construction.

FAQ for High Speed Bottle Unscrambler

What is a High Speed Bottle Unscrambler?

A High Speed Bottle Unscrambler is an automated packaging machine that efficiently sorts, orients, and feeds empty bottles from a disordered bulk state into an upright position on a conveyor belt. It is designed for high-speed production lines in industries such as pharmaceuticals, cosmetics, food & beverage, and chemicals, eliminating manual labor and ensuring a continuous supply of bottles to downstream equipment like fillers, cappers, and labelers.

What are the key features of the High Speed Bottle Unscrambler?

High Throughput: Capable of handling large volumes at high speeds.
Versatile Bottle Handling: Suitable for various shapes and sizes with quick, tool-less changeovers.
cGMP-Compliant Design: Stainless steel construction for hygiene and durability.
Advanced Automation: Features safety interlocks, jam detection, precise speed control, and optional air/water rinsing.
Compact & Reliable: Ergonomic design with easy integration, low maintenance, and high efficiency (up to 98.5%).

How does the High Speed Bottle Unscrambler work?

The machine operates in these main steps:

Disordered bottles are loaded into a large hopper or elevator.
Bottles are fed to a sorting mechanism (rotary disk, centrifugal, or vibratory) that orients them upright using centrifugal force or mechanical guides.
Oriented bottles are gently transferred to a conveyor belt, often stabilized by air jets.
They are then fed seamlessly into the production line for filling, capping, and labeling.

What are the main advantages of using a High Speed Bottle Unscrambler?

Increased Efficiency: Significantly reduces labor costs and boosts production speed.
Flexibility: Handles diverse bottle types with minimal adjustments.
Hygienic & Reliable: Stainless steel build and optional cleaning systems ensure compliance with industry standards and minimize downtime.
Cost-Effective: Lowers long-term operational costs despite the initial investment.
Safety: Includes automatic alarms, jam pauses, and operator-friendly features.

What industries and bottle types is the High Speed Bottle Unscrambler suitable for?

It is ideal for the Pharmaceutical, Cosmetic, Food & Beverage, Chemical, and Biotech industries. The machine works best with plastic or stable bottles of various shapes and sizes. It is generally not recommended for fragile materials like glass or ceramics, which may require specialized handling equipment.
