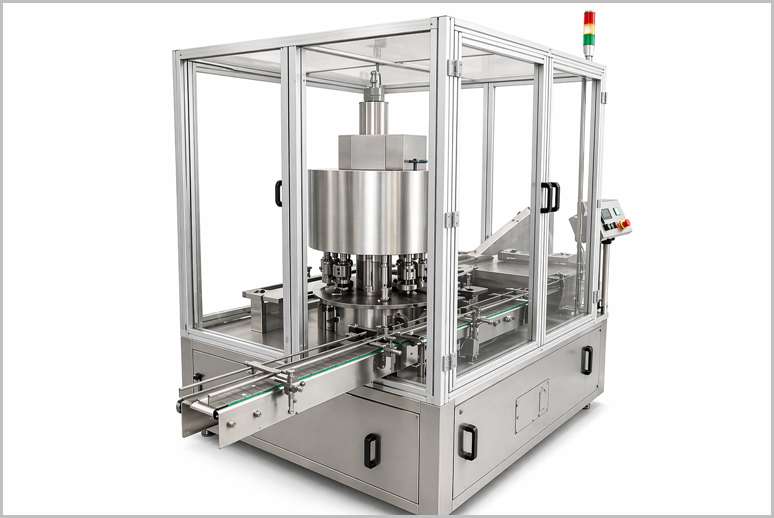

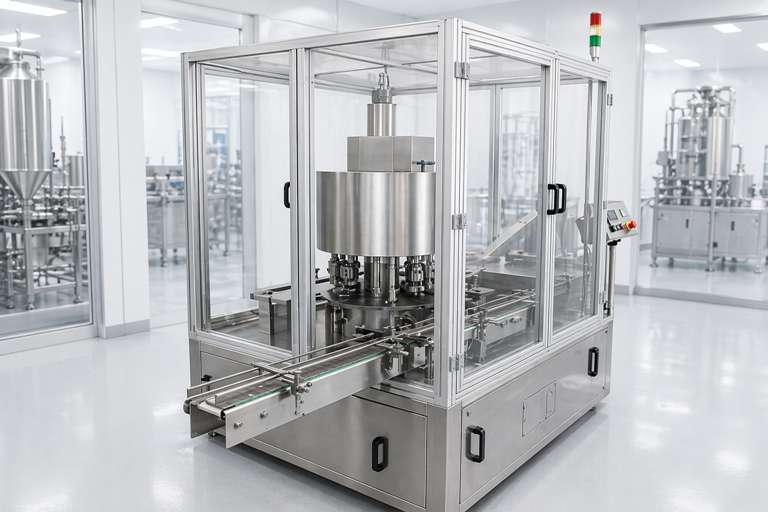

Eight Head Screw Capping Machine

Q: What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats: Bottle Diameter : 24 mm to 90 mm Bottle Height : 50 mm to 250 mm Cap Diameter : 20 mm, 25 mm, and 28 mm (with suitable change parts) It can efficiently handle plastic screw caps, metal screw caps, lug caps, and child-resistant caps on round, square, or specially shaped glass and plastic bottles.

Description

Eight Head Screw Capping Machine is an advanced, automated packaging solution designed for high-speed and efficient application of screw caps onto various types of containers, such as bottles and jars. It is widely used in industries like pharmaceuticals, food and beverages, cosmetics, chemicals, and pesticides due to its versatility, precision, and ability to handle high production volumes. The Eight Head Screw Capping Machine is a robust, high-speed solution for automated capping in high-volume production environments. Its stainless steel construction, precise torque control, and advanced safety features make it a reliable choice for industries requiring consistent, high-quality sealing. With output speeds of up to 180 bottles per minute and compatibility with diverse container types, it is an essential component of modern packaging lines.

Initial Cost: High upfront investment compared to single-head or semi-automatic cappers.

Maintenance: Requires regular maintenance to ensure optimal performance, though designs facilitate easy servicing.

Space Requirements: Larger footprint may not suit small facilities.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Eight Head Screw Capping Machine

Simple GMP model.
“No Bottle – No Cap” feature incorporated.
Fast and easy change over between different container sizes.
Contact parts of Container and caps are made out of stainless steel for long life.
One motor operates Conveyor, star wheel and Turret.
Machine speed control through variable frequency drive.
Clutch system provided in rotary starwheel to avoid bottle breakage.

Digital bottle counter provided for counting production output.
Stainless Steel Finish machine body.
Optional Cap Feeder can be provided with additional cost instead of bowl system.
Hopper and accessories can be completely dismantled for cleaning purpose.
IQ/OQ documentation can be provided on demand.
PLC system with Human Machine Interface can be provided optionally.
Laminar Air Flow can be offered for class 100 application. (optionally)

Working Principle of Eight Head Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Eight Head Screw Capping Machine

Model	ACSR-200
No. of Capping Heads	Eight
Production Rate	Up to 180 Containers/Minute
Container Diameter:	24mm to 90mm
Container Height:	50mm to 250mm
Cap Diameter:	20mm, 25mm & 28mm with the help of change parts
Power Specification:	2 H.P.
Electrical characteristics	440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Conveyor Height	800mm to 900mm adjustable
Optional Accessories	Safety Cabinet Covering Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Benefits of Eight Head Screw Capping Machine

High Efficiency: The eight-head design significantly boosts production speed, making it ideal for large-scale operations.

Versatility: Handles various bottle shapes, sizes, and cap types with minimal changeover time.

Reliability: Precision engineering and safety features ensure consistent performance and minimal downtime.

Durability: Stainless steel construction ensures long life and resistance to corrosion, meeting strict industry standards.

Automation: Fully automated systems reduce labor costs and improve production line efficiency.

Key Features of Eight Head Screw Capping Machine

Construction and Design:
- The machine is built on a sturdy welded mild steel (MS) or carbon steel frame, fully enclosed in stainless steel (SS 304) sheets for durability, corrosion resistance, and compliance with hygiene standards.
- It features adjustable stainless steel legs for height customization, ensuring compatibility with different production lines.
- Doors are provided for easy access during maintenance and servicing.

Operation:
- Bottle Feeding: Containers move along a conveyor belt and are fed into an in-feed star wheel. The star wheel aligns containers precisely under the capping heads.
- Cap Placement: Caps are delivered from a cap feeding system via a delivery chute. The rotating capping heads pick up caps and position them on the container’s neck.
- Capping Process: The eight capping heads, often equipped with magnetic hysteresis clutches or servo motors, apply caps with precise torque control to ensure a tight, leak-proof seal without damaging the cap or container threads.
- Output: The machine then transfers capped containers to an exit star wheel and onto the conveyor for the next process.

Performance Specifications:
- Bottle and Cap Compatibility: Suitable for round, square, or other shaped bottles with a maximum bottle diameter of ~85 mm, height of ~300 mm, and cap size up to ~32 mm. Change parts allow quick adjustments for different sizes.
- Pass Rate: Achieves a high stand-alone pass rate of up to 99%, ensuring reliable capping.

Advanced Features:
- No Bottle, No Cap System: Prevents cap application if no container is present, reducing waste and jams.
- No Cap, Machine Stop System: A background suppression sensor halts the machine if no caps are detected in the delivery chute, enhancing operational safety.
- Torque Control: Magnetic hysteresis clutches or servo motors provide precise torque adjustment, ensuring consistent sealing without over-tightening. Servo-controlled systems allow digital torque settings via a touchscreen interface.
- Safety Features: Includes safety clutches at the star wheel and feed worm to prevent bottle breakage, emergency stop buttons, and CE-certified electrical components.
- Cap Feeding Options: Supports vibratory feeders, mechanical cap feeder orientators, or waterfall-type elevators for continuous cap supply.
- Fast Changeover: Custom-designed parts enable quick format changes between different bottle and cap sizes, minimizing downtime.
- Low Noise and Power Efficiency: Operates at low noise levels and consumes modest power.

Applications:
- Ideal for sealing plastic screw caps, ROPP caps, or other threaded closures on various containers.
- Used in industries such as pharmaceuticals, food and beverages, cosmetics, chemicals, and pesticides.

Additional Features:
- PLC and Touchscreen Control: Many models feature a 7” color touchscreen with PLC for intuitive operation, error messaging, and production monitoring.
- Integration: Can be seamlessly integrated with filling, labeling, and other packaging line equipment for fully automated production.

FAQ for Eight Head Screw Capping Machine

What is an Eight Head Screw Capping Machine?

The Eight Head Screw Capping Machine is a fully automatic high-speed rotary capping machine designed to accurately place and tighten screw caps on bottles with precise and consistent torque. Equipped with eight capping heads, it offers high production output and is ideal for large-scale manufacturing. It is widely used in the pharmaceutical, cosmetic, chemical, food, and beverage industries for sealing oral liquids, syrups, tonics, lotions, and other liquid products.

What is the production capacity of the Eight Head Screw Capping Machine?

The Eight Head Screw Capping Machine has a production capacity of up to 180 bottles per minute. The actual output depends on bottle size, cap type, and product characteristics. It is best suited for high-volume production lines.

What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats:

Bottle Diameter: 24 mm to 90 mm
Bottle Height: 50 mm to 250 mm
Cap Diameter: 20 mm, 25 mm, and 28 mm (with suitable change parts)

It can efficiently handle plastic screw caps, metal screw caps, lug caps, and child-resistant caps on round, square, or specially shaped glass and plastic bottles.

Does the machine provide accurate torque control?

Yes. The Eight Head Screw Capping Machine features an advanced adjustable torque control system. This ensures consistent and precise tightening of caps without damaging the cap threads or the bottle neck, resulting in reliable, leak-proof, and tamper-evident sealing every time.

What safety features are included in the Eight Head Screw Capping Machine?

The machine is equipped with multiple safety interlocks for safe and smooth operation:

No Bottle – No Cap system
Container Overturn – Machine Stop
Safety clutch mechanism in the star wheel to prevent jamming and bottle breakage
Overload protection

These features help minimize product wastage and protect both the machine and the operator.
