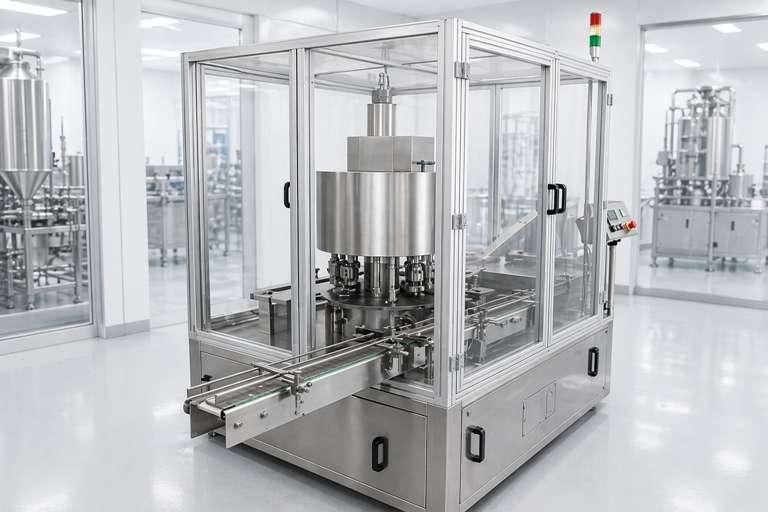

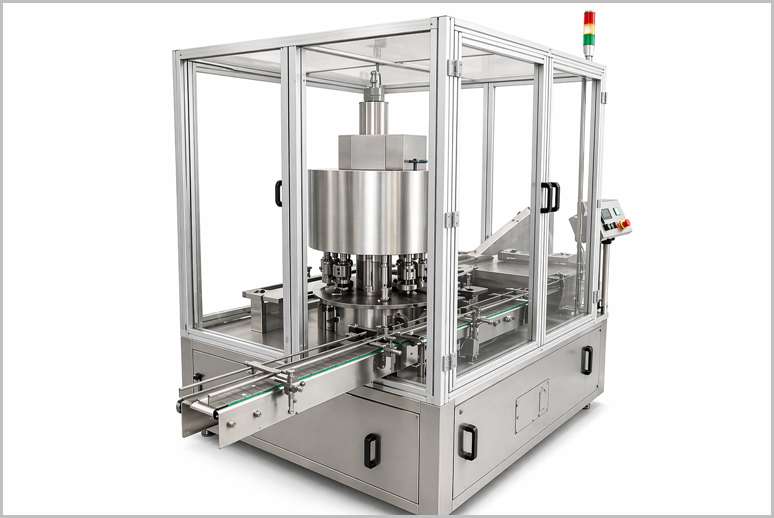

Six Head Bottle Screw Capping Machine

Q: What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats: Bottle Diameter : 24 mm to 90 mm Bottle Height : 50 mm to 250 mm Cap Diameter : 20 mm, 25 mm, and 28 mm (with change parts) It can efficiently handle both plastic and metal screw caps, including lug caps and child-resistant caps on round, square, or specially shaped bottles.

Description

Six Head Bottle Screw Capping Machine is an advanced, automated packaging machine designed for high-speed capping of bottles in industries such as pharmaceuticals, food and beverage, cosmetics, pesticides, and chemicals. It is engineered to apply screw caps to round or variously shaped bottles made of glass, plastic, PET, LDPE, or HDPE, with a maximum output of up to 150 bottles per minute, depending on bottle size, shape, and cap type. The Six Head Bottle Screw Capping Machine is a high-performance, fully automatic rotary capping machine designed to accurately place and tighten screw caps on bottles with precise and consistent torque. Equipped with six capping heads, this machine delivers higher output compared to four-head models, making it ideal for medium to large-scale production lines.

Bottles are fed via a conveyor belt into an in-feed star wheel, guided by an in-feed worm for precise positioning.

Caps are automatically sorted and delivered through a chute or vibratory feeder to the capping heads.

Six rotary capping heads descend, grip the bottle necks, and apply caps with programmed torque in a roll-on or screw-on manner.

Sealed bottles are discharged via an exit star wheel onto the conveyor for further processing

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Six Head Bottle Screw Capping Machine

Compact GMP model.
Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.
Various safety features including Clutch system to avoid Bottle Breakage or Jamming

“Container Overturn – Machine Stop” mechanism.
“No Bottle – No Cap” system.
PLC system with Graphical User Interface can be offered.
Digital counter for counting production output.
Machine construction in Stainless Steel Finish
Cap Feeder with Variable Speed System for feeding control of caps. (optional)
Hopper can be completely dismantling for easy cleaning
IQ/OQ documentation can be provided.

Working Principle of Six Head Bottle Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Six Head Bottle Screw Capping Machine

Model	AI-BSCM 6
Bottle Size	Diameter Up to 85mm* or other Shape bottle with proper base
Bottle Height	300mm* Maximum
Cap Size	Upton 32mm *
Electrical	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power	3.0 H.P.
Conveyor Height	850-900 mm
Overall Dimensions	1500 mm (L) x 1000 mm (W) x 2000 mm (H)
Production Output	Max. 120 Bottles per minute depending on Bottle and Cap Size

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Six Head Bottle Screw Capping Machine

High-speed, automated operation reduces labor costs and increases productivity.

Precise torque control ensures secure seals and consumer-friendly opening.

Versatile design accommodates diverse bottle and cap types, ideal for multi-product lines.

Robust construction ensures long-term reliability and minimal maintenance.

Safety features and GMP compliance make it suitable for regulated industries.

Key Components of Six Head Bottle Screw Capping Machine

High-Speed Operation:
- Capable of capping up to 80–150 bottles per minute, depending on the model, bottle diameter, height, shape, and cap size.
- Ideal for high-production environments requiring efficient, continuous capping on automated lines.

Construction and Design:
- Built with a sturdy mild steel frame, clad in stainless steel for durability and compliance with Good Manufacturing Practices (GMP).
- Stainless steel components for parts in contact with bottles or caps, ensuring hygiene and corrosion resistance.
- Compact design with adjustable height for easy integration into existing production lines.

Capping Mechanism:
- Utilizes six rotary capping heads to apply and tighten screw caps with precise torque control, ensuring a secure, leak-proof seal without damaging caps or bottles.
- Equipped with a magnetic or liner clutch system to adjust torque, preventing over-tightening and ensuring consistent sealing quality.
- Features a “pick and place” system in some models, where dual cam mechanisms lift and place caps accurately onto bottles for near-perfect capping success.

Cap and Bottle Compatibility:
- Suitable for a wide range of bottle shapes and materials.
- Handles various cap types, including plastic screw caps, aluminum ROPP caps, and metal caps, with sizes ranging from 18–70 mm, adjustable via change parts.
- Quick changeover between bottle and cap sizes using a single ratchet or custom-designed parts, minimizing downtime.

Cap Feeding System:
- Equipped with an orientation-type cap feeder or vibratory bowl feeder to ensure continuous, accurate cap delivery.
- Options for mechanical cap feeder orientators, waterfall-type elevators, or universal hoppers, depending on cap type and production needs.
- Includes a “No Bottle, No Cap” system to prevent cap wastage and a background suppression sensor to stop the machine if no caps are detected in the delivery chute.

Automation and Control:
- Fully automated operation with PLC and HMI for intuitive control and precise torque adjustment.
- Features up to 50 programmable recipes for different bottle-cap combinations, enhancing flexibility.
- Servo-controlled systems in advanced models allow for precise torque settings via a touchscreen interface.

Safety and Efficiency Features:
- Safety clutches on the star wheel and feed worm to prevent bottle breakage or jamming.
- Low-noise, low-power consumption design with self-lubricating UHMW-PE guide profiles for smooth, frictionless conveying.
- Emergency stop button and CE-certified electrical components for operator safety.
- Optional digital counter for production tracking and cap feeder speed control.

Integration and Customization:
- Seamlessly integrates with filling, labeling, and other packaging line equipment for a complete production setup.
- Customizable for specific bottle heights, cap sizes, and torque requirements, with options for additional features like laminar airflow for sterile applications.

FAQ for Six Head Bottle Screw Capping Machine

What is a Six Head Bottle Screw Capping Machine?

The Six Head Bottle Screw Capping Machine is a fully automatic rotary capping machine equipped with six capping heads. It is designed to place and tighten screw caps on bottles with precise and consistent torque. This machine is ideal for medium to high-volume production and is widely used in the pharmaceutical, cosmetic, chemical, and food industries for sealing oral liquids, syrups, tonics, and other liquid products in glass or plastic bottles.

What is the production capacity of the Six Head Bottle Screw Capping Machine?

The Six Head Bottle Screw Capping Machine has a production capacity of 100 to 150 bottles per minute, depending on bottle size, cap type, and product characteristics. It offers significantly higher output compared to four-head models, making it suitable for medium to large-scale manufacturing.

What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats:

Bottle Diameter: 24 mm to 90 mm
Bottle Height: 50 mm to 250 mm
Cap Diameter: 20 mm, 25 mm, and 28 mm (with change parts)

It can efficiently handle both plastic and metal screw caps, including lug caps and child-resistant caps on round, square, or specially shaped bottles.

What safety features does the Six Head Bottle Screw Capping Machine include?

The machine is equipped with multiple safety interlocks for safe and reliable operation:

No Bottle – No Cap system
Container Overturn – Machine Stop
Safety clutch mechanism in the star wheel to prevent jamming and bottle breakage
Overload protection

These features help minimize product wastage and ensure operator safety.

What are the key benefits and optional features?

Key benefits include high production speed, precise torque control, quick size changeover, consistent leak-proof sealing, low maintenance, and GMP-compliant design with stainless steel contact parts. Optional features include:

PLC with HMI and touchscreen
Laminar Air Flow (LAF) unit
Full safety cabinet enclosure
Variable speed cap feeder
IQ/OQ documentation
