Vial Cap Sealing Machine

Q: What is the production capacity of the Vial Cap Sealing Machine?

The machine is available in different models: Single Head : Up to 50 vials per minute Four Head : Up to 100 vials per minute Eight Head : Up to 200 vials per minute The Eight Head model (most popular) delivers a high output of up to 200 vials per minute , making it suitable for medium to large-scale production.

Q: What vial and cap sizes can the Vial Cap Sealing Machine handle?

The machine supports a wide range of formats: Vial Diameter : 15 mm to 80 mm Vial Height : 20 mm to 180 mm Cap Sizes : 13 mm, 20 mm, 28 mm, 30 mm, and 33 mm It works with both molded and tubular glass vials and supports plain aluminum, flip-off, and tear-off caps (change parts required for different sizes).

Description

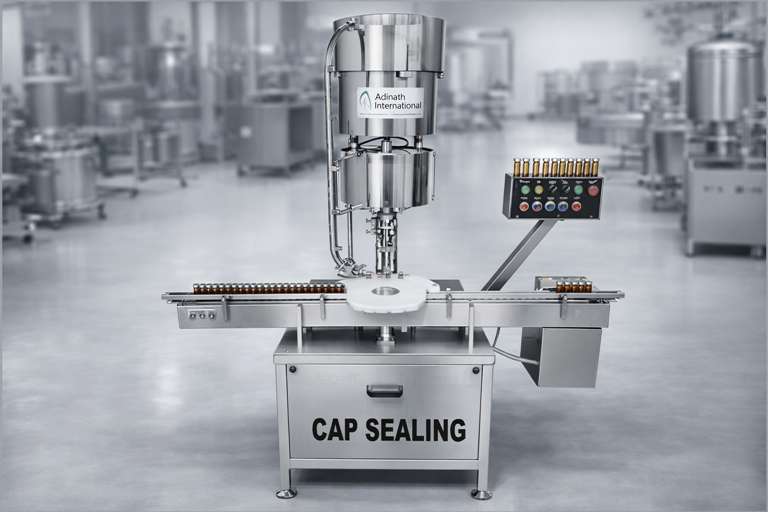

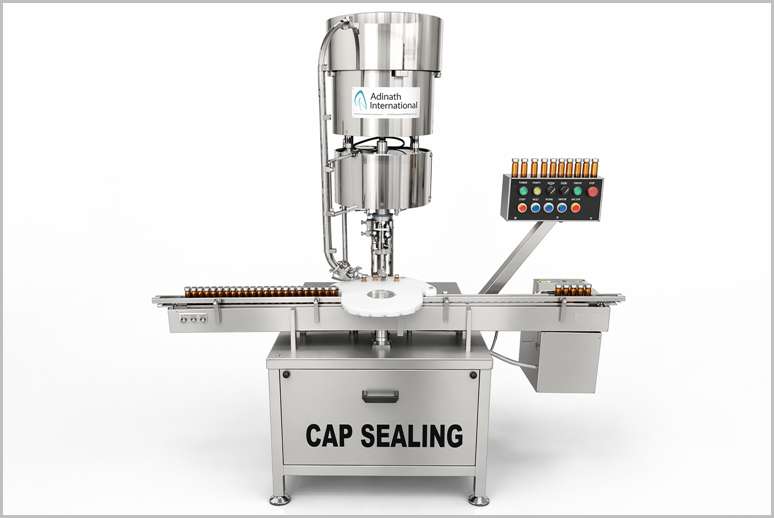

Vial Cap Sealing Machine is a fully automatic rotary sealing system designed to apply and crimp aluminum caps (plain, flip-off, and tear-off types) onto glass vials with high precision and consistency. It creates a secure, hermetic, and tamper-evident seal that ensures the sterility and integrity of injectable pharmaceutical products such as vaccines, antibiotics, biologics, and sterile liquids. Available in Single Head, Four Head, and Eight Head configurations, this machine is widely used in the pharmaceutical, biotechnology, veterinary, and cosmetic industries. The Eight Head model (ACS-200) is particularly popular for high-speed production lines, delivering reliable performance while meeting stringent cGMP standards.

Vial Cap Sealing Machine can be seamlessly integrated with vial filling, stoppering, and labeling machines to form a complete sterile vial packaging line. Optional features include PLC with HMI, Laminar Air Flow (LAF), full safety cabinet, camera inspection system, and 21 CFR Part 11 compliance. Designed for cleanroom environments, the Vial Cap Sealing Machine ensures high efficiency, excellent sealing quality, minimum downtime, and full regulatory compliance.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Vial Cap Sealing Machine

A complete cGMP model.
“No Stopper on Vial Before Sealing – Machine Stop” system.
Single motor synchronises conveyor, starwheels and platform turret and speed can be varied by the speed pot on operating panel.
Parts coming in contact with the vial / aluminium cap / exposed to the atmosphere are made out of stainless steel for good house keeping & GMP accordance.
Spring loaded free spinning sealing rollers eliminates any damage to aluminiumcaps and also allows greater flexibility of variation in the container neck diameter.
Sealing Pressure can be varied to suit different gauges and sizes of aluminium caps.

“No Seal in Chute – Machine stop” system.
Variable A.C. frequency drive for speed adjustment.
Digital Counter for counting number of sealed vials.
Photo sensing device stop machine automatically in the event of no aluminium cap in delivery chute.
A Special clutch device is incorporated on the infeed worm and Starwheel system for stoppage of machine in the event, vial is over turned or over diameter.
Acrylic Cabinet with Aluminium Structure for Machine. (Optional)
Programmable Logic Control with GUI. (Optional)

Working Principle of Vial Cap Sealing Machine

Duly Stoppered vials are continuously fed from the convetor of filling machine to the flat conveyor belt of sealing machine and move further through infeed worm for correct spacing and transferred to the infeed starwheel. Aluminium caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with infeed starwheel picks up aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket and further moves out on to the flat conveyor belt. Duly sealed vials are collected on out-feed collection tray.

Technical Specification of Vial Cap Sealing Machine

Model	ACS-60	ACS-120	ACS-200
No. of Sealing Head	Single	Four	Eight
Production Rate	Up to 50 Vials/Minute	Up to 100 Vials/Minute	Up to 200 Vials/Minute
Container Diameter:	15mm to 80mm	15mm to 80mm	15mm to 80mm
Container Height:	20mm to 180mm	20mm to 180mm	20mm to 180mm
Cap Diameter:	13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts.	13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts.	13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts.
Power Supply	0.5 H.P.	1 H.P.	2 H.P.
Electrical characteristics	440 Volts, 3 Phase, 50 Hertz, 4 Wire System	440 Volts, 3 Phase, 50 Hertz, 4 Wire System	440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Optional Accessories	Aluminum profile cabinet covering full machine	Aluminum profile cabinet covering full machine	Aluminum profile cabinet covering full machine
	Chuck for flip-off seal	Chuck for flip-off seal	Chuck for flip-off seal
	PLC with HMI	PLC with HMI	PLC with HMI
Overall Dimension	1300mm X 800mm (W) X 1800mm (H) approx.	1500mm (L) x 850mm (W) x 1800mm (H) approx.	2000mm (L) x 850mm (W) x 1800mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Vial Cap Sealing Machine

High precision and repeatability to meet regulatory standards for seal integrity.

Adaptable to various vial sizes and cap types.

Efficiency: Reduces manual labor, minimizes errors, and supports cleanroom or isolator integration for sterile processing.

Customizable: Options for touch-screen controls, multi-language interfaces, and integration with upstream/downstream equipment.

Key Features of Vial Cap Sealing Machine

High-speed rotary design with multiple sealing heads

“No Vial – No Cap” and “No Stopper on Vial – Machine Stop” systems

Safety clutch mechanism to prevent vial breakage

Spring-loaded free-spinning sealing heads for flexibility

Unique Gradual Pressure Sealing (GPS) or single roller system for wrinkle-free, hermetic seals with minimal particle generation

Vibratory bowl feeder with variable speed control for smooth cap feeding

Quick and easy size changeover with minimum change parts

Stainless Steel (SS 316) contact parts and matt finish for GMP compliance

Variable Frequency Drive (VFD) for smooth speed control

Low noise and low power consumption

FAQ for Vial Cap Sealing Machine

What is a Vial Cap Sealing Machine?

The Vial Cap Sealing Machine is a fully automatic rotary machine designed to apply and crimp aluminum caps (plain, flip-off, and tear-off types) onto glass vials with high precision. It creates a secure, hermetic, and tamper-evident seal essential for injectable pharmaceutical products. Available in single, four, and eight-head models, it is widely used in pharmaceutical, biotech, and veterinary industries for sealing vaccines, antibiotics, and sterile liquids.

What is the production capacity of the Vial Cap Sealing Machine?

The machine is available in different models:

Single Head: Up to 50 vials per minute
Four Head: Up to 100 vials per minute
Eight Head: Up to 200 vials per minute

The Eight Head model (most popular) delivers a high output of up to 200 vials per minute, making it suitable for medium to large-scale production.

What vial and cap sizes can the Vial Cap Sealing Machine handle?

The machine supports a wide range of formats:

Vial Diameter: 15 mm to 80 mm
Vial Height: 20 mm to 180 mm
Cap Sizes: 13 mm, 20 mm, 28 mm, 30 mm, and 33 mm

It works with both molded and tubular glass vials and supports plain aluminum, flip-off, and tear-off caps (change parts required for different sizes).

What safety features does the Vial Cap Sealing Machine include?

The machine is equipped with multiple advanced safety interlocks:

No Vial – No Cap system
No Stopper on Vial – Machine Stop
No Cap in Chute – Machine Stop (photo sensor)
Safety clutch mechanism to prevent vial breakage
Spring-loaded free-spinning sealing heads

These features ensure minimum product loss and safe, reliable operation.

What are the key benefits and optional features?

Key benefits include high-speed sealing, wrinkle-free hermetic seals, quick size changeover, low particle generation, low maintenance, and consistent sealing quality. Optional features include:

PLC with HMI and touchscreen
Laminar Air Flow (LAF) unit
Full safety cabinet enclosure
Camera inspection system
21 CFR Part 11 compliance
Variable speed cap feeder
