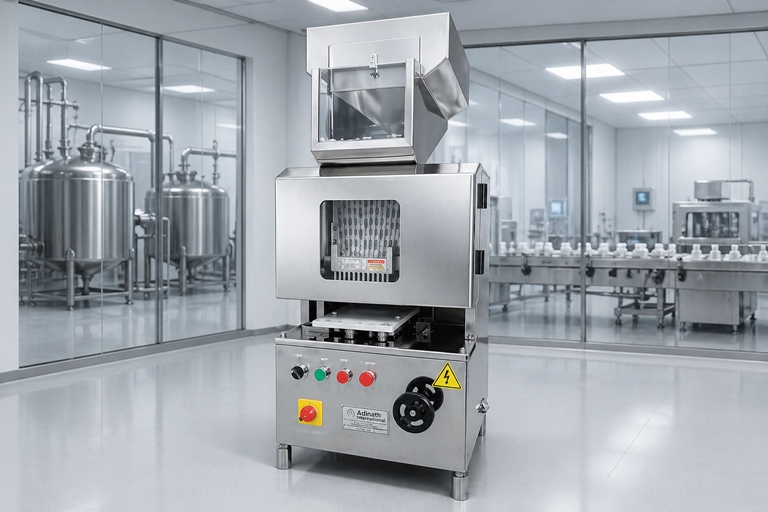

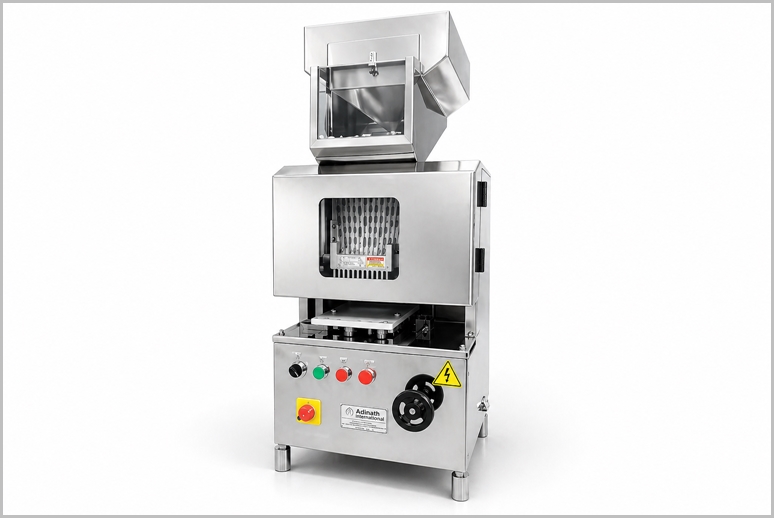

Hard Gelatin Capsule Loader

A Hard Gelatin Capsule Loader is a specialized piece of equipment used in pharmaceutical, nutraceutical, and supplement manufacturing to automate the loading of empty hard gelatin capsules into trays or holders for further processing, such as filling with powders, granules, or other substances. Hard gelatin capsules are rigid, two-piece shells made from gelatin, commonly used for oral medications or supplements. Unlike manual loading, which can be time-consuming and error-prone, a loader ensures capsules are oriented correctly and nested vertically for efficiency.

This device is often an accessory or component integrated with capsule filling machines, particularly manual or semi-automatic models. It speeds up production, reduces labor, and minimizes damage to fragile capsules. Loaders are available in various scales, from small manual units for home or lab use to industrial automatic systems.

Automatic Capsule Loader Video

Manual Capsule Loader Video

How Does It Work?

1. Loading the Hopper: Empty hard gelatin capsules are poured into the machine’s hopper.

2. Orientation and Nesting: The capsules are automatically aligned and oriented using gravity, vibration, or mechanical guides. They are then nested into a magazine or directly into a loading tray with multiple holes.

3. Transfer to Filling Station: The loaded tray is transferred to a capsule filling machine, where the capsules are separated, filled, and reassembled.

4. Automation Level:

   • Manual/Semi-Automatic Loaders: Operator-assisted, ideal for small batches.

   • Fully Automatic Loaders: Part of high-speed lines, handling thousands of capsules per minute with minimal intervention.

This process is crucial for maintaining capsule integrity, as hard gelatin shells are sensitive to pressure and misalignment.

Common Applications

• Pharmaceutical Industry: Filling capsules with active pharmaceutical ingredients (APIs), excipients, or powders for drugs.

• Nutraceuticals and Supplements: Custom blending vitamins, herbs, or minerals into capsules for consumer products.

• Research and Development: Small-scale loading for lab testing or prototyping.

• Home Use: Simplified versions for personal supplement making, though industrial loaders are more precise.

Loaders are compatible with standard capsule sizes and can handle various fill materials like dry powders, pellets, or semi-solids.

Salient Features of Hard Gelatin Capsule Loader

• Compact-Sized Equipment.

• Appropriate for GMP productions.

• When the third tray in the capsule filling machine is in operation, two loading trays can be filled in the loader machine.

• Since the loader has a single-phase power source, even domestic electricity functions.

• Both devices are capable of handling capsules of various sizes.

• Working numerous filling machines with a single capsule loader will maximize manufacturing output.

• Machines capable of processing HPMC, veg, and hard gelatin capsules.

• Even a semi-skilled individual can run the machine thanks to its simplicity.

• Documentation on IQ, OQ, and DQ is available.

Process Operation of Hard Gelatin Capsule Loader

Adinath is one of the leading capsule filling machine manufacturers in India. We are giving here below step-by-step process guide of Capsule Filling Machine with Loader:

• By pulling the lever, slide the rail further.
• Place the loading tray from the capsule filling machine onto the loading area of the capsule loader automatically.
• Attach the guiding plate to the loading tray’s four top legs.
• Slide rail is pushed within.
• Launch the device.
• Once the machine is running, the loader will automatically fill the rows one at a time.
• It will fill 12 capsules in the loading tray with each stroke.
• The machine will automatically stop once all 300 holes have been filled with capsules.
• Now remove the loading tray and the guide plate.
• Add the properly filled loading tray to the capsule filling machine.
• Verify that the front knob is turned to the right.
• Now further steps will be performed in the manual capsule filling machine.

Technical Specification of Automatic Capsule Loader

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
