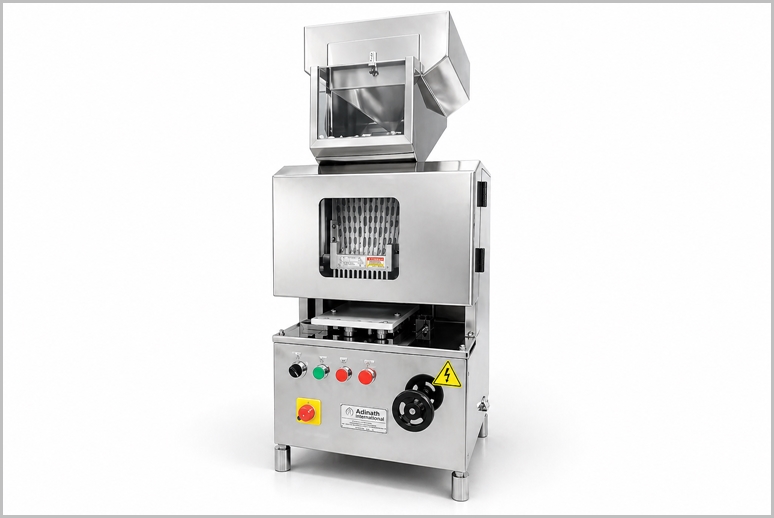

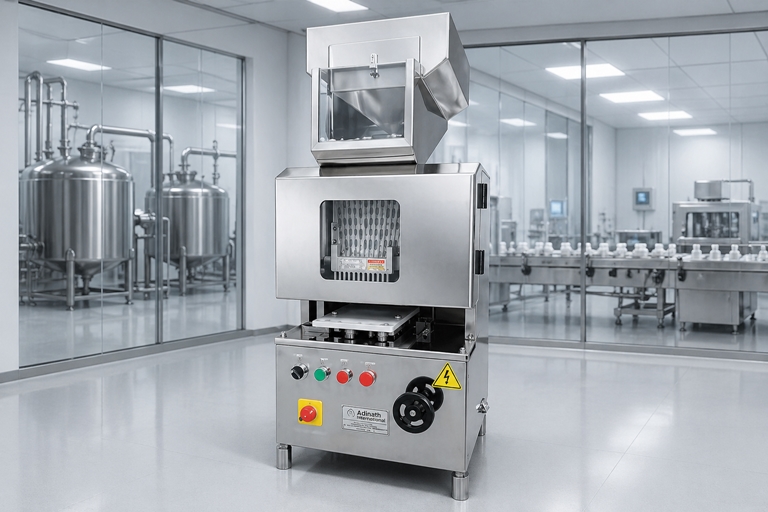

GMP Capsule Loader

Description

GMP Capsule Loader (also known as a Manual Capsule Loader, Capsule Orienter, or Capsule Inserter) is a specialized piece of equipment used in pharmaceutical, nutraceutical, cosmetic, and biotech industries to efficiently load empty capsules into the trays of manual capsule filling machines. It ensures proper orientation and precise placement, reducing manual labor and errors. The “GMP” refers to compliance with Good Manufacturing Practices (GMP) standards, meaning the device is typically constructed from high-quality stainless steel (e.g., SS 304 or 316) to meet hygiene, safety, and regulatory requirements for cleanroom environments. This tool is particularly useful for small-scale production, R&D labs, pilot batches, and herbal/Ayurvedic formulations. It supports various capsule types, including hard gelatin, HPMC (vegetarian), and veg capsules in sizes from #00 to #5.

Preparation: Empty capsules are poured into the loader’s hopper.

Orientation: The device vibrates or mechanically aligns the capsules.

Loading: Capsules are automatically inserted into the 300-hole tray of a compatible filling machine.

Integration: Once loaded, the tray transfers to the filling machine for powder/granule dosing, then closing.

For semi-automatic variants, it integrates with higher-output machines, featuring PLC/HMI controls for automated feeding and declutching.

If you need details on specific models and pricing, let me know!

Salient Features of GMP Capsule Loader

Compact-Sized Equipment.
Working numerous filling machines with a single capsule loader will maximize manufacturing output.
Appropriate for GMP productions, Documentation on IQ, OQ, and DQ is available.
When the third tray in the capsule filling machine is in operation, two loading trays can be filled in the loader machine.

Both devices are capable of handling capsules of various sizes.
Since the loader has a single-phase power source, even domestic electricity functions.
Machines capable of processing HPMC, veg, and hard gelatin capsules.
Even a semi-skilled individual can run the machine thanks to its simplicity.

Working Principle of GMP Capsule Loader

Adinath is one of the leading capsule filling machine manufacturers in India. We are giving here below step-by-step process guide of Capsule Filling Machine with Loader:

By pulling the lever, slide the rail further.
Place the loading tray from the capsule filling machine onto the loading area of the capsule loader automatically.
Attach the guiding plate to the loading tray’s four top legs.
Slide rail is pushed within.
Launch the device.
Once the machine is running, the loader will automatically fill the rows one at a time.
It will fill 12 capsules in the loading tray with each stroke.
The machine will automatically stop once all 300 holes have been filled with capsules.
Now remove the loading tray and the guide plate.
Add the properly filled loading tray to the capsule filling machine.
Verify that the front knob is turned to the right.
Now further steps will be performed in the manual capsule filling machine.

Technical Specification of GMP Capsule Loader

Model	ACL 300
Production Output	Up to 20000 Capsules/hour (depends upon operator’s efficiency)
Capsule Combinations	Size 00, 0, 1, 2, 3 and 4 (through format parts)
Sequence of holes	25 x 12 = 300
Power Voltage	220 Volts, Single Phase, 50 Hertz
Overall Dimension	630mm X 430mm X 780mm approx.
Net Weight	80 Kgs. approx.
Gross Weight	120 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Benefits of GMP Capsule Loader

Significant Increase in Productivity

Drastically Reduces Manual Labor

Low Investment – High Output

Consistent & Accurate Orientation

Saves Time & Increases Efficiency

Key Advantages of GMP Capsule Loader

Efficiency Boost: Manually loading 300 empty capsules into a tray can take 5-6 minutes. A GMP Capsule Loader reduces this to 30-80 seconds, enabling higher output.

Accuracy and Ease: Automatically orients and loads capsules with high precision, minimizing breakage and misalignment. It’s lightweight, portable, and user-friendly—even for unskilled operators.

Compact Design: Occupies minimal bench space, is fully disassemblable for cleaning, and requires no maintenance.

GMP Compliance: Made from corrosion-resistant stainless steel; all contact parts are washable and non-reactive.

Versatility: Compatible with manual capsule filling machines (e.g., 300-hole models). Optional electric versions exist for semi-automatic setups.

Cost-Effective: Low initial investment with quick ROI, ideal for small businesses, researchers, or independent producers.

FAQ for GMP Capsule Loader

What is a GMP Capsule Loader and what is it used for?

A GMP Capsule Loader (Model ACL 300), also known as an Automatic Capsule Loader, Capsule Orienter, or Manual Capsule Loader, is a compact auxiliary machine that automatically orients and loads empty capsules into the trays of manual or semi-automatic capsule filling machines. It is used in pharmaceutical, nutraceutical, Ayurvedic, herbal, biotech, and cosmetic industries to reduce manual labor, ensure correct capsule orientation (cap up/body down), minimize errors, and boost productivity in small-scale production, R&D, and pilot batches.

What is the production capacity of the GMP Capsule Loader?

The ACL 300 model can load up to 20,000 capsules per hour (depending on operator efficiency). It fills a 300-hole tray (25 × 12 arrangement) in approximately 28–30 seconds. One loader can support multiple filling machines by allowing two trays to be loaded while the third is in use on the filler.

Which capsule sizes and materials does the GMP Capsule Loader support?

It supports standard capsule sizes 00, 0, 1, 2, 3, and 4 through interchangeable format/change parts. The machine is compatible with hard gelatin capsules, HPMC (vegetarian), and veg capsules, making it versatile for various formulations.

Does the GMP Capsule Loader require electricity? What are its key features?

Yes, it operates on a single-phase 220V power supply (compatible with domestic electricity; voltage can be customized). Key features include its compact GMP-compliant design (approx. 630mm × 430mm × 780mm, ~80 kg net weight), stainless steel contact parts, fast automatic row-by-row loading (12 capsules per stroke), easy operation by semi-skilled workers, low maintenance, simple cleaning, and availability of IQ/OQ/DQ documentation.

How does the GMP Capsule Loader work and what are its main benefits?

The process is simple: Place the empty tray and guiding plate on the loader, pour capsules into the hopper, start the machine (it automatically orients and loads row by row), and remove the filled tray once complete. Main benefits include drastically reducing manual loading time (from 5–6 minutes to ~30 seconds per tray), increasing overall productivity, improving accuracy and consistency, minimizing operator fatigue, ensuring GMP compliance, and offering a low-investment, high-output solution.
