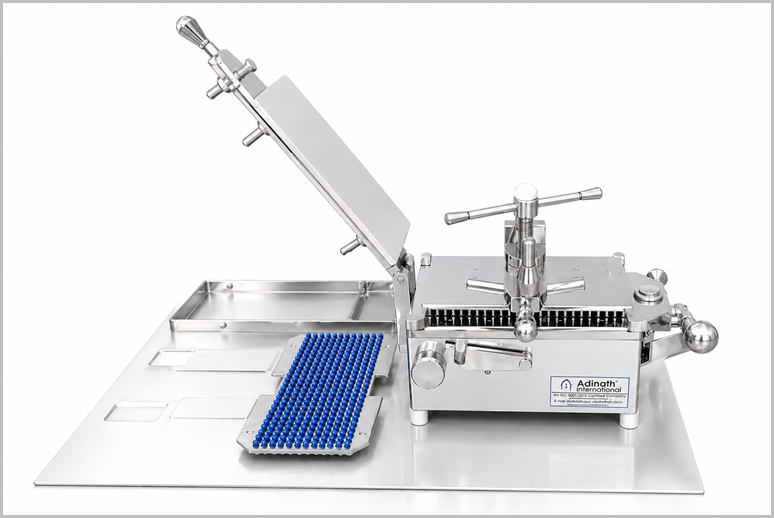

Nutritional Capsule Filler

Description

Nutritional Capsule Filler typically refers to a device or machine used to encase powdered nutritional supplements, herbs, vitamins, or other dietary ingredients into empty gelatin or vegetarian capsules. This allows individuals or businesses to create custom supplements at home or in production, ensuring precise dosing without fillers or additives from pre-made products. These tools are popular for DIY health enthusiasts, small-scale nutraceutical producers, and professional facilities aiming for cost savings and customization.

If you need details on specific models and pricing, let me know!

Salient Features of Nutritional Capsule Filler

Ideal for laboratory benches, small-scale production, and nutraceutical manufacturing setups with limited space.
GMP-compliant contact parts with matt finish for superior hygiene and corrosion resistance.
Ensures product safety and compliance for nutritional supplements and dietary products.
Easy to operate, service, and maintain.
Manual or Automatic Capsule Loader for faster operation.

Dedicated powder tray prevents material wastage and maintains a clean working environment — crucial for expensive nutritional ingredients.
Works with hard gelatin capsules, vegetarian (HPMC), and pullulan capsules.
Handles powders with different bulk densities effectively.
No electricity required for basic manual operation — highly cost-effective for small to medium nutraceutical producers.
IQ/OQ documentation available.

Working Principle of Nutritional Capsule Filler

Based on standard methods for nutritional powders, here’s a simple process using a manual filler like The Capsule Machine.

Gather Supplies: Empty capsules, powdered filler, filler machine, tamper tool, and a bowl.

Prepare Powder: Pour your nutritional powder into a bowl. Mix if blending multiple ingredients. Store extras in a cool, dark place.

Disassemble Capsules: Pull apart the longer “body” from the shorter “cap” halves. Place bodies into the machine’s tray.

Fill: Spread powder over the tray and rotate to fill bodies evenly. Use the tamper to pack it down without spilling.

Cap: Place caps over filled bodies and press to seal. Eject assembled capsules.

Clean: Rinse parts immediately; most are dishwasher-safe.

Technical Specification of Nutritional Capsule Filler

Model	CFM 300	ASCF – 25	ACF – 40
Types	Manual	Semi Automatic	Automatic
Capsule Size	00/0/1/2/3/4/5 with suitable parts	00/0/1/2/3/4/5 with suitable parts	00/0/1/2/3/4/5 with suitable parts
Production Output	Up to 6000 Capsules/hour	Up to 25,000 capsules/hour	Up to 40,000 capsules
Power Voltage	_	415 Volts, 3 Phase, 50 Hertz	415 Volts, 3 Phase, 50 Hertz
Compressed Air	_	8 CFM at 100 PSI	4 CFM
Machine Dimensions approx. Length Width Height	405mm 300mm 455mm	1600mm 1300mm 1600mm	975mm 875mm 1955mm
Net Weight in Kgs.	43 Kgs. approx.	950 Kgs. approx.	850 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Benefits of Nutritional Capsule Filler

Customization: Mix your own blends tailored to specific needs.

Cost-Effective: Bulk powders are cheaper than bottled supplements, and fillers help portion them efficiently.

Quality Control: Avoid unnecessary excipients; ensure fresh, potent fills.

Common Applications: Filling size “00” or “0” capsules, which hold 500–950 mg of powder depending on density.

Key Features of Nutritional Capsule Filler

Compact Design: Fits on a standard table or bench, with dimensions typically around 17″ x 18″ x 19″.

Versatility: Handles capsule sizes from #000 to #5, and various fill materials.

Ease of Use: Manual models involve simple steps like loading capsules, spreading powder, and tamping; semi-automatic versions add intermittent controls for efficiency.

Output Capacity: Ranges from 300–600 capsules per batch for manual models to higher rates in semi-automatic units.

Cost-Effective: Affordable entry point for small operations without needing large industrial setups.

FAQ for Nutritional Capsule Filler

What is a Nutritional Capsule Filler and what is it used for?

A Nutritional Capsule Filler is a compact, manual table-top machine designed to fill empty hard gelatin, vegetarian (HPMC), or pullulan capsules with nutritional powders, vitamins, herbal extracts, granules, pellets, or dietary supplements. It is widely used by small-scale nutraceutical manufacturers, supplement producers, R&D labs, pharmacies, and DIY custom supplement makers. It enables precise dosing, customization, and cost-effective production without unwanted fillers or additives.

What is the production capacity of the Nutritional Capsule Filler?

The standard CFM 300 model has a 300-hole configuration (25 × 12 grid) with three loading trays and can produce up to 6,000 capsules per hour (operator-dependent). Multiple trays support continuous operation, allowing one tray to be loaded while another is in use. A smaller 100-hole model is also available for very small batches or R&D. Output varies based on powder characteristics and operator skill.

Which capsule sizes and materials are compatible with the Nutritional Capsule Filler?

The machine supports standard capsule sizes 00, 0, 1, 2, 3, 4, and 5 using interchangeable change parts. Special elongated sizes are available on request. It is compatible with hard gelatin capsules, vegetarian (HPMC) capsules, and pullulan capsules, making it ideal for a wide range of nutritional and dietary supplement formulations.

Does the Nutritional Capsule Filler require electricity? What are its key advantages for supplement production?

The basic model operates fully manually with no electricity required, ensuring portability and low operating costs. Key advantages include its compact design (approx. 405mm × 300mm × 455mm, ~43 kg), spillage-free powder tray (important for expensive nutritional ingredients), SS 304/316 GMP-compliant contact parts, multiple tamping for uniform fills, optional loaders and tablet-filling attachments, easy cleaning, low maintenance, and availability of IQ/OQ documentation.

How easy is the Nutritional Capsule Filler to operate and maintain?

It features a universal, user-friendly design with simple manual steps: loading capsules, spreading and tamping powder, and locking. The machine is quick to disassemble and clean, with most parts washable. Stainless steel construction (SS 304/316 options), spillage-free operation, and fast changeovers between capsule sizes make it practical for daily use in nutraceutical production environments.
