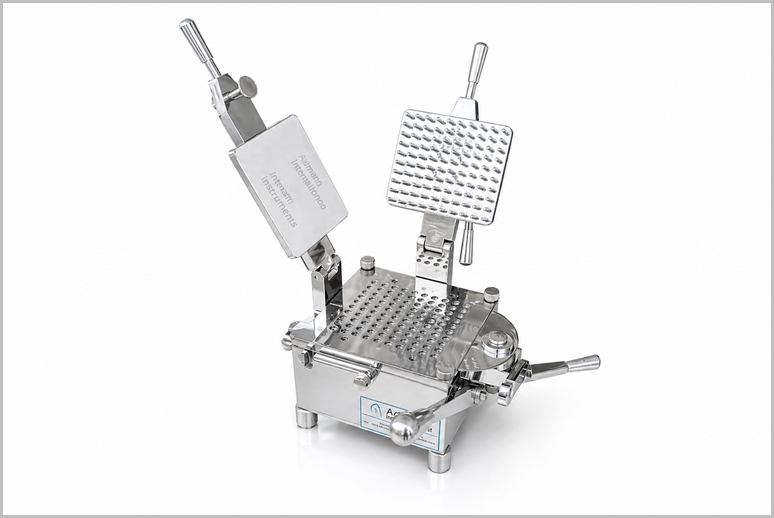

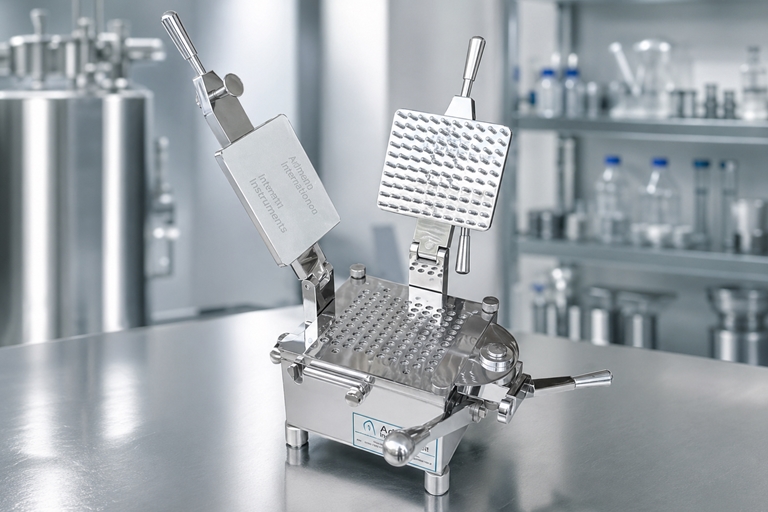

100 Holes Capsule Filler

Q: What are the technical specifications of the 100 Holes Capsule Filler?

Net Weight : 20 kg (Gross Weight: 28 kg) Dimensions : Approx. 375mm (L) × 280mm (W) × 400mm (H) Operation : Fully manual Material : Durable construction with GMP compliance No power requirement for basic operation (voltage can be customized if needed) It offers high filling accuracy, low wastage, and is highly cost-effective for small-batch and R&D work.

Description

100 Holes Capsule Filler is a manual device designed for efficiently filling empty gelatin or vegetarian capsules with powders, such as supplements, herbs, vitamins, or medications. It’s popular among home users, herbalists, small-scale producers, and labs for its simplicity and cost-effectiveness, allowing you to buy bulk powders and create custom capsules without needing expensive machinery.

If you need details on specific models and pricing, let me know!

Salient Features of 100 Holes Capsule Filler

Small table-top model ideal for R&D laboratories
10 × 10 hole arrangement for filling 100 capsules per cycle.
GMP-compliant design with contact parts in SS 304 (optional SS 316).
Supports capsule sizes 00, 0, 1, 2, 3, 4 & 5 with interchangeable change parts.

Includes powder tray and scrapper for accurate filling with minimal wastage.
Fully manual hand-operated mechanism.
Comes with one loading tray (additional trays available).
Fills hard gelatin capsules, vegetarian (HPMC), and pullulan capsules with powders, pellets, granules, or tablets (with optional attachment).

Working Principle of 100 Holes Capsule Filler

Prepare: Separate empty capsules into bodies and caps. Insert bodies into the 100-hole base plate.

Fill: Spread powder evenly over the plate using the spreader tool, ensuring holes are full.

Tamp: Use the tamper to press powder firmly and evenly into each capsule.

Cap: Place the cap plate over the filled bodies and press down to seal.

Eject: Release and collect the filled capsules. Clean tools with a brush or mild soap.

Technical Specification of 100 Holes Capsule Filler

Production Output	Up to 2000 Capsules/hour
Capsule Combinations	Size 00, 0, 1, 2, 3, 4 and 5 (through different machines & parts)
Sequence of holes	10 x 10 = 100
No. of Loading Trays	One no.
Overall Dimension	375mm X 280mm X 400mm approx.
Net Weight	20 Kgs. Approx.
Gross Weight	28 Kgs. Approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Advantages of 100 Holes Capsule Filler

Ideal for Small Batch & R&D Production

Cost-Effective & Low Investment

Easy Operation & Minimal Training:

High Filling Accuracy & Low Wastage

Key Features of 100 Holes Capsule Filler

Capacity: Fills up to 100 capsules at once using a tray with precisely aligned 100 holes.

Capsule Sizes: Commonly available for size 00, size 0, or size 1. Size 00 is the most popular for larger doses.

Materials: Typically made from durable, chemical-resistant ABS plastic, often in two-tone colors like black/orange or blue/orange for easy visibility.

Components: Includes a base plate for capsule bodies, a top plate for caps, a powder spreader, a tamper, and sometimes a small brush for cleaning. Some models come as a 6-part set.

Operation: Separate capsule halves, load bodies into the base, fill with powder, tamp down, then cap using the top plate. The process takes minutes per batch.

Advantages: No electricity required, portable, easy to clean, and achieves high fill rates. It’s ideal for small batches and saves money compared to pre-filled capsules.

FAQ for 100 Holes Capsule Filler

What is a 100 Holes Capsule Filler and who is it suitable for?

The 100 Holes Capsule Filler is a manual, table-top capsule filling machine designed to fill 100 empty hard gelatin, vegetarian (HPMC), or pullulan capsules in a single cycle. It is ideal for R&D laboratories, small-scale producers, herbalists, nutraceutical manufacturers, pharmacies, and home users who want a simple, cost-effective way to fill custom supplements or medications with powders, pellets, granules, or tablets (with optional attachment).

What is the production capacity of the 100 Holes Capsule Filler?

The machine fills 100 capsules per cycle (10 × 10 hole arrangement) with an output of up to 2,000 capsules per hour, depending on operator skill and powder characteristics. It is perfect for small batch production and laboratory use where high-speed automation is not required.

Which capsule sizes can the 100 Holes Capsule Filler handle?

It supports capsule sizes 00, 0, 1, 2, 3, 4, and 5 through interchangeable change parts. This versatility makes it suitable for a wide range of formulations in pharmaceutical, Ayurvedic, herbal, and nutraceutical industries.

What are the key features of the 100 Holes Capsule Filler?

Key features include:

Compact GMP-compliant design with SS 304 contact parts (SS 316 optional)
Powder tray and scrapper for accurate filling with minimal wastage
Manual hand-operated mechanism (no electricity required)
One loading tray (additional trays available)
Easy operation, cleaning, and maintenance
Portable table-top model with small footprint (375mm × 280mm × 400mm)

What are the technical specifications of the 100 Holes Capsule Filler?

Net Weight: 20 kg (Gross Weight: 28 kg)
Dimensions: Approx. 375mm (L) × 280mm (W) × 400mm (H)
Operation: Fully manual
Material: Durable construction with GMP compliance
No power requirement for basic operation (voltage can be customized if needed)

It offers high filling accuracy, low wastage, and is highly cost-effective for small-batch and R&D work.
