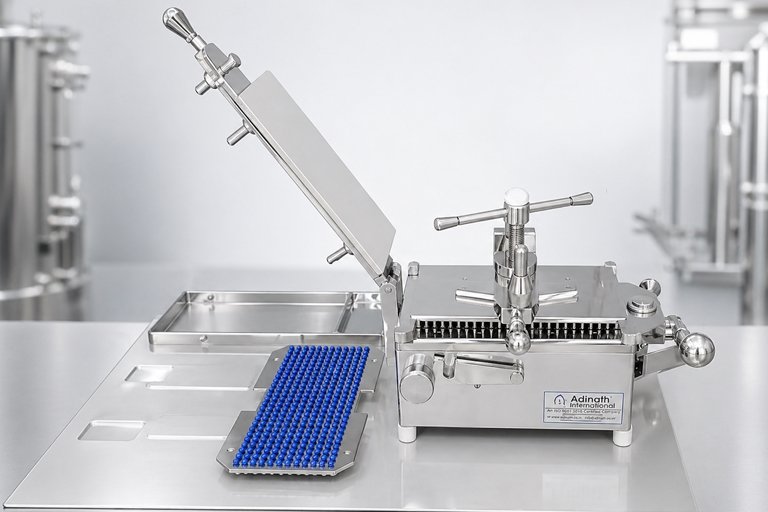

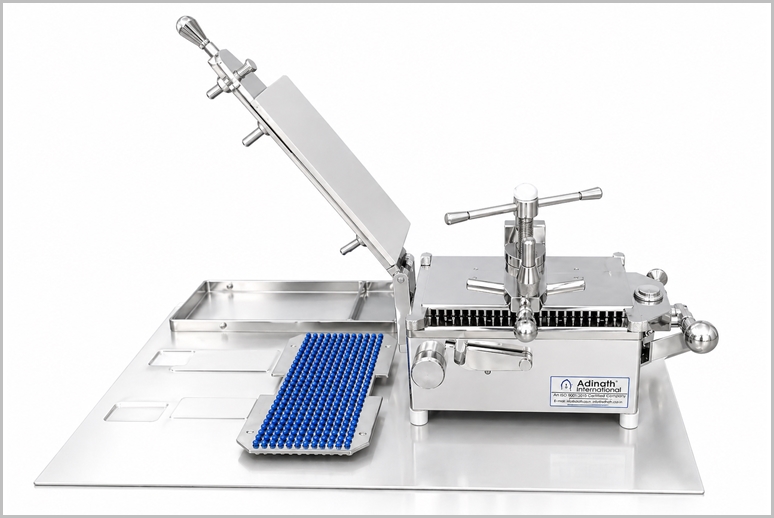

300 Holes Capsule Filler

Description

300 Holes Capsule Filler is a manual or semi-automatic machine designed for efficiently filling empty capsules with powders, herbs, supplements, or other substances. It’s particularly popular in pharmaceutical, nutraceutical, herbal, and dietary supplement industries for small to medium batch production. The “300 holes” refers to the machine’s capacity to handle 300 capsules simultaneously in a single tray or operation cycle, making it suitable for pilot runs, labs, or home-based production. These machines are often bench-top models, compliant with Good Manufacturing Practices, and constructed from stainless steel for durability and hygiene.

Preparation: Separate empty capsules into bodies and caps. Place bodies in the 300-hole tray.

Filling: Spread powder over the tray using a powder tray or scoop. Use a tamper to press powder into each body, repeating for uniform fill.

Capping: Align caps in a separate tray, lower the locking plate, and press to seal.

Cleanup: Disassemble for easy washing; all parts are GMP-compliant for sanitation.

This process minimizes waste and ensures consistent dosing, outperforming smaller fillers for higher volumes.

If you need details on specific models and pricing, let me know!

Salient Features of 300 Holes Capsule Filler

Compact Model.
Option of Stainless Steel 304 and 316 materials constructions.
Option of Manual Capsule Loader as well as Auto Capsule Loader for loading empty capsules onto loading tray.
Powder tray provided for spillage free filling of powder.
Interchangeability to different capsule size format parts.

Machine suitable for hard gelatin capsules, veg capsules and HPMC capsules.
Power with different bulk density can be filled easy through multiple press option.
Universal design hence easy to operate and easily service available.
Tablet Filling Attachment can be offered optionally to fill tablets into capsules.
IQ/OQ documentation can be provided.

Working Principle of 300 Holes Capsule Filler

Adinath is one of the leading manual capsule filling machine manufacturer in India. We are giving here below step by step process guide of Capsule Filling Machine:

Place empty capsules onto the loading tray and place tray onto the machine. Check the front knob it should be turned to the right.

Pull locking lever forward. Push down long handle which will lifts the caps off all the bodies. Set aside the tray containing all the caps.

Push locking lever back, by which capsule bodies will drop down and become level with filling surface.

Place powder tray on filler: keeps powder from spilling.

Pour & spread the pre-measured powder. Move extra powder onto powder tray’s shelf. Lower tamper and lock.

Turn handle to compress powder: this allows you to fill more powder in each capsule.

Raise tamper & spread extra powder from shelf into capsules: ensures uniform fill weights.

Return the tray containing caps to filler. Turn front knob to the left and lower locking plate. Engage lock for locking plate.

Hold tamper handle and push down on long handle. Bodies are pushed up into caps: all the capsules are now locked in one step.

Disengage lock for locking plate. Lift locking plate and turn front knob to the right.

Push down long handle and remove tray of completed capsules.

Capsules are filled now. You can turn tray and all the capsules will get out from the tray.

Technical Specification of 300 Holes Capsule Filler

Model	CFM 300
Production Output	Up to 6000 Capsules/hour
Capsule Combinations	Size 00, 0, 1, 2, 3, 4 and 5

	(through different machines & parts)
Sequence of holes	25 x 12 = 300
No. of Loading Trays	Three nos.
Overall Dimension	405mm X 300mm X 455mm approx.
Net Weight	43 Kgs. approx.
Gross Weight	50 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Advantages of 300 Holes Capsule Filler

Cost-effective for small batches without needing full automation.

Versatile for gelatin or vegetarian capsules.

Portable and user-friendly; no electricity required.

Reduces labor time compared to hand-filling.

Key Features of 300 Holes Capsule Filler

Based on common models from manufacturer Adinath International:

Capacity: Up to 6,000 capsules per hour, depending on operator efficiency and capsule size.

Capsule Sizes Supported: Typically sizes 000 to 5. Some models require interchangeable parts or trays for different sizes.

Construction: Stainless steel (SS 304 or higher) for all contact parts to ensure dust-free, corrosion-resistant operation. Non-contact parts may be mild steel with chrome plating in standard models.

Components: Includes 300-hole trays (often 25 x 12 grid), powder tray, tamper for even distribution, locking plates, and optional accessories like manual capsule loaders or orienters.

Operation: Mechanically operated. Steps generally include:
- Loading empty capsule bodies into the tray.
- Spreading and tamping powder.
- Locking capsule caps.

Dimensions: Approximately 428 mm (L) x 308 mm (W) x 452 mm (H), making it compact for tabletops.

Output Efficiency: Ideal for 300 capsules per cycle; higher-output models may include multiple trays.

FAQ for 300 Holes Capsule Filler

What is a 300 Holes Capsule Filler?

The 300 Holes Capsule Filler (Model CFM 300) is a compact, manual/semi-automatic benchtop machine designed to fill 300 capsules in a single cycle. It is ideal for small to medium batch production in the pharmaceutical, nutraceutical, herbal, Ayurvedic, and dietary supplement industries. Built with GMP-compliant stainless steel (SS 304/316 options), it requires no electricity for basic operation and supports hard gelatin, vegetarian (HPMC), and other capsule types.

What is the production capacity of the 300 Holes Capsule Filler?

The machine can produce up to 6,000 capsules per hour, depending on operator efficiency, powder characteristics, and capsule size. It features a 300-hole tray (25 × 12 arrangement) and comes with three loading trays as standard, allowing one tray to be prepared while another is in use for continuous workflow.

Which capsule sizes can the 300 Holes Capsule Filler handle?

It supports a wide range of capsule sizes: 00, 0, 1, 2, 3, 4, and 5. Interchangeable change parts allow quick switching between sizes, making it versatile for different pharmaceutical, nutraceutical, herbal, and veterinary formulations.

What are the key features of the 300 Holes Capsule Filler?

Compact and portable design (approx. 405 × 300 × 455 mm, 43 kg net weight)
Stainless steel 304/316 construction with GMP compliance
Powder tray for spillage-free filling
Multiple tamping options for powders of varying bulk densities
Optional manual/auto capsule loader and tablet filling attachment
Easy disassembly for cleaning and maintenance
IQ/OQ documentation available
No electricity required for core operation

How does the 300 Holes Capsule Filler work?

The process is straightforward and manual:

Load empty capsules into the 300-hole tray and separate caps from bodies.
Spread and tamp powder into the bodies for uniform fill weight (repeat as needed).
Align the cap tray and lock the capsules in one stroke.
Eject the filled capsules.

Each cycle of 300 capsules typically takes 1–2 minutes, making it efficient for pilot batches, R&D, and small-scale production.
