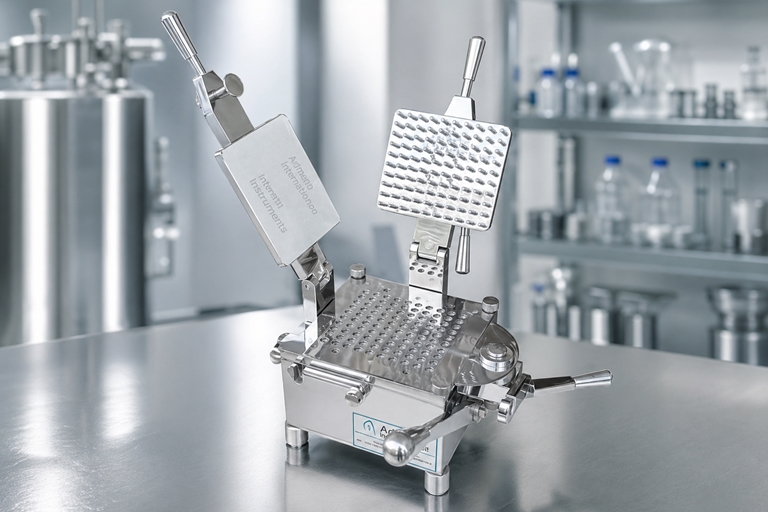

Table Top Capsule Filler

Description

Table Top Capsule Filler also known as a benchtop or manual/semi-automatic capsule filling machine is a compact, countertop device used in pharmaceutical, nutraceutical and supplement manufacturing to fill empty hard gelatin or vegetarian capsules with powders, pellets, granules, tablets, liquids, or even capsule-in-capsule combinations. These machines are ideal for research and development (R&D), pilot batches, small-scale production, or home use, as they require minimal space and can be operated manually or with basic automation. They meet Good Manufacturing Practice (GMP) standards and are scalable to full production lines.

Using a typical hand-operated model like the 300 Holes Capsule Filling Machine:

Separate capsule halves and load bodies into the plate (300 holes in 25×12 grid).

Lock and level the bodies.

Spread powder evenly using a tamper to fill uniformly.

Remove excess powder and insert caps.

Lock the assembly.

This process ensures consistent fill weights and minimizes waste.

If you need details on specific models and pricing, let me know!

Salient Features of Table Top Capsule Filler

Compact Model.
Option of Stainless Steel 304 and 316 materials constructions.
Universal design hence easy to operate and easily service available.
Powder tray provided for spillage free filling of powder.
Option of Manual Capsule Loader as well as Auto Capsule Loader for loading empty capsules onto loading tray.

Machine suitable for hard gelatin capsules, veg capsules and HPMC capsules.
Power with different bulk density can be filled easy through multiple press option.
Interchangeability to different capsule size format parts.
Tablet Filling Attachment can be offered optionally to fill tablets into capsules.
IQ/OQ documentation can be provided.

Working Principle of Table Top Capsule Filler

Adinath is one of the leading manual capsule filling machine manufacturers in India. We are giving here below step-by-step process guide of Capsule Filling Machine:

Place empty capsules onto the loading tray and place tray onto the machine. Check the front knob it should be turned to the right.
Pull locking lever forward. Push down long handle which will lifts the caps off all the bodies. Set aside the tray containing all the caps.
Push locking lever back, by which capsule bodies will drop down and become level with filling surface.
Place powder tray on filler: keeps powder from spilling.
Pour & spread the pre-measured powder. Move extra powder onto powder tray’s shelf. Lower tamper and lock.
Turn handle to compress powder: this allows you to fill more powder in each capsule.
Raise tamper & spread extra powder from shelf into capsules: ensures uniform fill weights.
Return the tray containing caps to filler. Turn front knob to the left and lower locking plate. Engage lock for locking plate.
Hold tamper handle and push down on long handle. Bodies are pushed up into caps: all the capsules are now locked in one step.
Disengage lock for locking plate. Lift locking plate and turn front knob to the right.
Push down long handle and remove tray of completed capsules.
Capsules are filled now. You can turn tray and all the capsules will get out from the tray.

Technical Specification of Table Top Capsule Filler

Model	CFM 300
Production Output	Up to 6000 Capsules/hour
Capsule Combinations	Size 00, 0, 1, 2, 3, 4 and 5 (through different machines & parts)
Sequence of holes	25 x 12 = 300
No. of Loading Trays	Three nos.
Overall Dimension	405mm X 300mm X 455mm approx.
Net Weight	43 Kgs. approx.
Gross Weight	50 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Benefits of Table Top Capsule Filler

Compact & Space-Saving Design

No Electricity Required (Fully Manual Operation)

Precision and Consistent Dosing

Easy Operation, Cleaning & Maintenance

Cost-Effective & Regulatory Support

Key Features of Table Top Capsule Filler

Compact Design: Fits on a standard table or bench, with dimensions typically around 17″ x 18″ x 19″.

Versatility: Handles capsule sizes from #000 to #5, and various fill materials.

Ease of Use: Manual models involve simple steps like loading capsules, spreading powder, and tamping; semi-automatic versions add intermittent controls for efficiency.

Output Capacity: Ranges from 300–600 capsules per batch for manual models to higher rates in semi-automatic units.

Cost-Effective: Affordable entry point for small operations without needing large industrial setups.

FAQ for Table Top Capsule Filler

What is a Table Top Capsule Filler and what is it used for?

A Table Top Capsule Filler (also known as a benchtop or manual capsule filling machine) is a compact, countertop device designed for filling empty hard gelatin, vegetarian (HPMC), or pullulan capsules with powders, pellets, granules, tablets, liquids, or semi-solids. It is ideal for R&D, pilot batches, small-scale production, clinical trials, pharmacies, nutraceuticals, Ayurvedic, and herbal industries. Its space-saving design and GMP-compliant construction make it perfect for laboratories and small operations where full automation is not required.

What is the production capacity of the Table Top Capsule Filler?

The standard CFM 300 model features a 300-hole configuration (25 × 12 grid) with three loading trays and can produce up to 6,000 capsules per hour (operator-dependent). Multiple trays allow continuous operation—one tray can be loaded while another is filling. A smaller 100-hole variant is also available for very low-volume R&D or trial batches. Actual output depends on powder flow, capsule size, and operator skill.

Which capsule sizes and materials does the Table Top Capsule Filler support?

The machine is compatible with standard capsule sizes 00, 0, 1, 2, 3, 4, and 5 using interchangeable change parts. Special elongated sizes (e.g., 000, 00EL) are available on request. It works efficiently with hard gelatin capsules, vegetarian (HPMC) capsules, and pullulan capsules, offering excellent versatility for different formulations and fill materials.

Does the Table Top Capsule Filler require electricity? What are its main advantages?

The basic model operates fully manually and requires no electricity, making it highly portable, energy-efficient, and suitable for any workspace. Key advantages include its compact size (approx. 405mm × 300mm × 455mm, ~43 kg), spillage-free powder tray, multiple tamping for uniform fills, easy cleaning with SS 304/316 contact parts, optional auto/manual loaders and tablet-filling attachments, low maintenance, and availability of IQ/OQ documentation.

How easy is it to operate and clean the Table Top Capsule Filler?

It features a universal, user-friendly design with straightforward manual steps: loading capsules, spreading and tamping powder, and locking. The machine is quick to disassemble, with most parts washable and GMP-compliant. The sturdy stainless steel construction (SS 304/316 options), spillage-free tray, and fast changeover between capsule sizes make it simple to operate and maintain even for repeated daily use.
