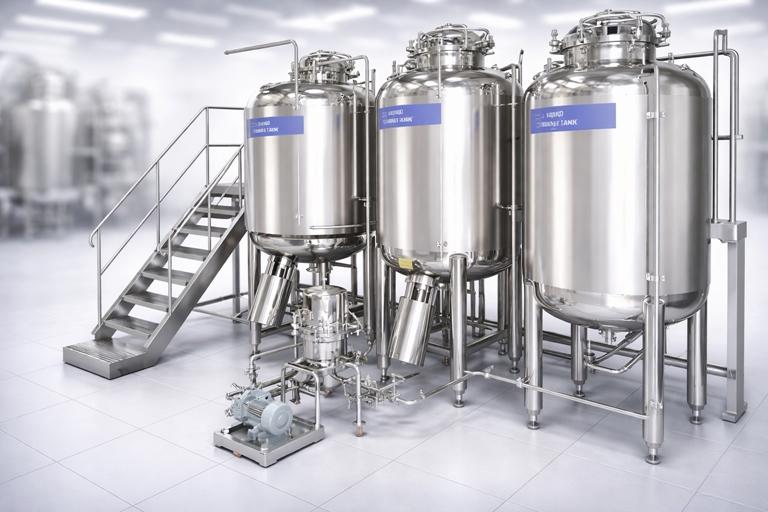

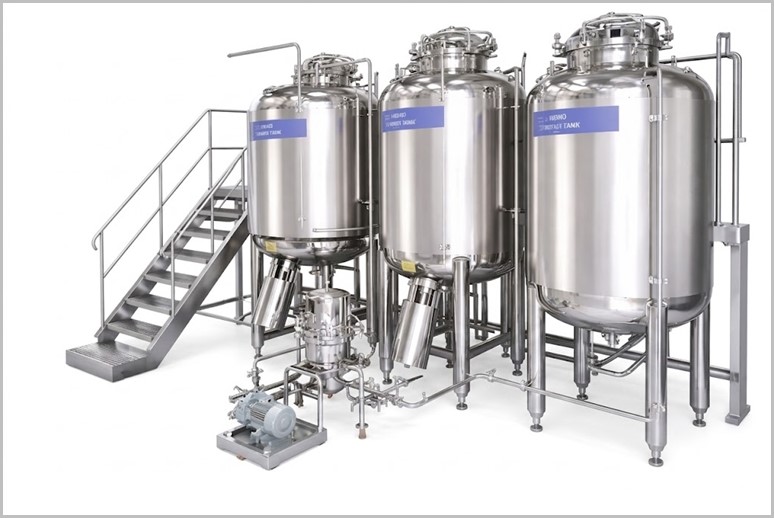

Liquid Manufacturing Plant

Q: What are the key features of the Liquid Manufacturing Plant?

Operated by just one operator and one helper . cGMP-compliant design with SS 304/SS 316 mirror-finish contact parts. Vacuum or pump-based material transfer. CIP & SIP compatible with easy-clean tri-clover fittings. Digital control panel for temperature, time, and monitoring. Vessels suitable for sterilization; optional Inline Homogenizer and automation.

Description

Liquid Manufacturing Plant also known as an Oral Liquid Manufacturing Plant or Syrup Manufacturing Plant is specialized industrial equipment used primarily in the pharmaceutical sector to produce liquid oral formulations such as syrups, suspensions, elixirs, emulsions, and other water-based medications. These plants are engineered to handle key production factors like sugar dissolution, water integration, mixing, filtration, and storage while ensuring high product quality, minimal contamination, and compliance with standards like cGMP, WHO, USFDA, and MHRA. They are designed for efficiency, often operable by just one operator and a helper, reducing labor costs and manual handling of liquids.

If you need details on specific models and pricing, let me know!

Salient Features of Liquid Manufacturing Plant

The Plant is designed to be operated only by one operator and one helper.
All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.
All the vessels are cGMP (paint free construction).
The gaskets used are of silicon (food grade).
All contact parts are of S.S. 304 quality material & finished to class 4B (Mirror) finish and are crevice free.
The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice).

All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
All material transfers are done by vacuum or by transfer pumps.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
A microprocessor based automatic operating plant can be designed as per requirement.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Working Principle of Liquid Manufacturing Plant

This system consist of a closed circuit manufacturing facility feeding of Sugar/Water Phase to loading the Volumetric Liquid Filling Machine.

The Sugar and Water, are load with vacuum system or by mechanical system or manually.

The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating (In small model) / steam heating facility (in bigger size model). The sugar syrup is prepared at required temperature & are transferred to Manufacturing Vessel by vacuum or by transfer pump.

The product during emulsion formation is recirculated through In-Line Homoginizer or Liquid Transfer Pump. (Optional Facility)

The Pump also discharges the product in the Storage Vessel.

The Storage Vessel is then taken to the filling area (if it is small capacity) and is connected to again Liquid Transfer pump. Or Storage Vessel remain fixed (in bigger size) & pump transfer the Liquids in the float tank which is connected with filling machine.

The entire plant can be operated by centralized operating panel by one operator

The plant is equipped with an electrical control panel with digital temperature indicators / controllers and digital timers.

Minimum two batches per shift of the same product can be assured in this plant.

This plant conforms to CGMP standards (paint free Construction).

Accessories of Liquid Manufacturing Plant

Liquid Manufacturing Plant consist the following equipment’s and accessories:

Sugar syrup vessel
Filters press
Manufacturing vessel
Transfer pump
Storage vessel
Transfer pump
Piping to connect all above equipment’s.
Working platform.
Control panel

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Manufacturing Plant

Oral Suspension Production Plant

Cosmetic Manufacturing Plant

Oral Liquid Production Plant

Shampoo Manufacturing Plant

Syrup Preparation Plant

Toothpaste Preparation Plant

Applications of Manufacturing Plant

Benefits of Liquid Manufacturing Plant

Quality Assurance: Directly manages sugar and water ratios to prevent inconsistencies; reduces microbial risk through closed systems.

Efficiency: Batch times are short, with low energy use and scalability.

Cost Savings: Operable by minimal staff; durable SS316L construction ensures longevity.

Applications: Beyond pharmaceuticals, adapted for cosmetics, food, and chemicals.

Optional Features of Liquid Manufacturing Plant

Parts made of SS304/SS316/SS316L/as per customers’ requirements.

Top entry or Bottom entry Stirrer & Emulsifier can be provided.

Fittings and valves can be offered SS304 / SS316.

CIP & SIP connections for cleaning after each batch with control from the Panel Board.

Connections with tri clover joints for easy cleaning & replacement.

We produce Liquid Manufacturing Plants ranging from 10 liters to 10,000 liters batch size capacity.

FAQ for Liquid Manufacturing Plant

What is a Liquid Manufacturing Plant?

A Liquid Manufacturing Plant (also known as Oral Liquid Manufacturing Plant or Syrup Manufacturing Plant) is a specialized closed-circuit system used primarily in the pharmaceutical industry to produce oral liquid formulations such as syrups, suspensions, elixirs, and emulsions. It ensures high product quality by minimizing manual handling, maintaining cleanliness, and complying with cGMP standards.

What are the main components of a Liquid Manufacturing Plant?

The plant typically includes:

Sugar Syrup Vessel
Manufacturing Vessel
Filter Press
Transfer Pumps
Storage Vessel
Interconnecting Piping with tri-clover joints
Working Platform
Centralized Control Panel

These form an integrated system from raw material processing to transfer for filling.

What are the key features of the Liquid Manufacturing Plant?

Operated by just one operator and one helper.
cGMP-compliant design with SS 304/SS 316 mirror-finish contact parts.
Vacuum or pump-based material transfer.
CIP & SIP compatible with easy-clean tri-clover fittings.
Digital control panel for temperature, time, and monitoring.
Vessels suitable for sterilization; optional Inline Homogenizer and automation.

How does the Liquid Manufacturing Plant work?

Sugar and water are loaded into the Sugar Syrup Vessel (with heating and stirring). The syrup is transferred to the Manufacturing Vessel where ingredients are mixed and emulsified (with optional recirculation). The finished product is filtered and moved to the Storage Vessel, then transferred to the filling area. The entire process runs via a centralized panel in a closed loop for efficiency and hygiene.

What capacities and industries does it support?

The plant is available in batch sizes ranging from 10 liters to 10,000 liters. It is widely used in the Pharmaceutical, Biotech, Ayurvedic, Herbal, Nutraceutical, and Cosmetic industries. Key benefits include reduced contamination risk, manpower efficiency, consistent quality, and support for at least two batches per shift.
