GMP Vibro Sifter

Q: What are the available models and capacities?

The GMP Vibro Sifter is available in multiple models: AVS-20 : 20–70 kg/hr, 20″ (335 mm) diameter, 0.25 HP AVS-24 : 20–140 kg/hr, 24″ (520 mm) diameter, 0.25 HP AVS-30 : 30–250 kg/hr, 30″ (750 mm) diameter, 0.5 HP AVS-36 : 80–300 kg/hr, 36″ (950 mm) diameter, 0.5 HP AVS-48 : 200–400 kg/hr, 48″ (1220 mm) diameter, 1.5 HP Larger sizes up to 60″ are also available.

Description

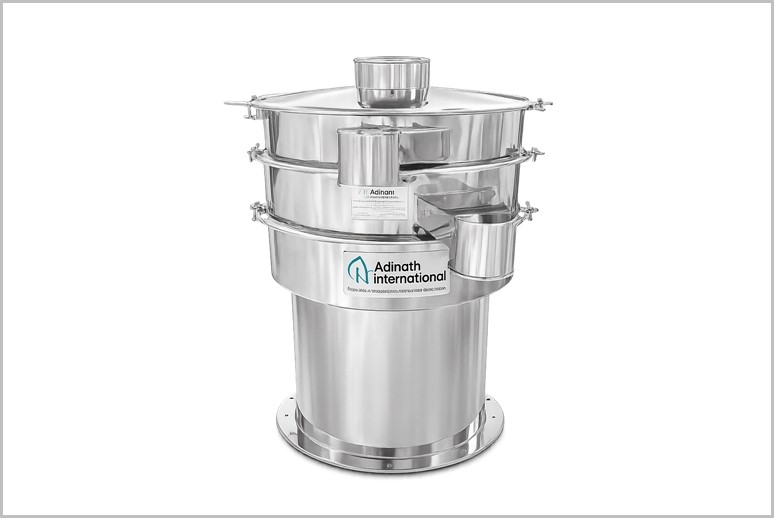

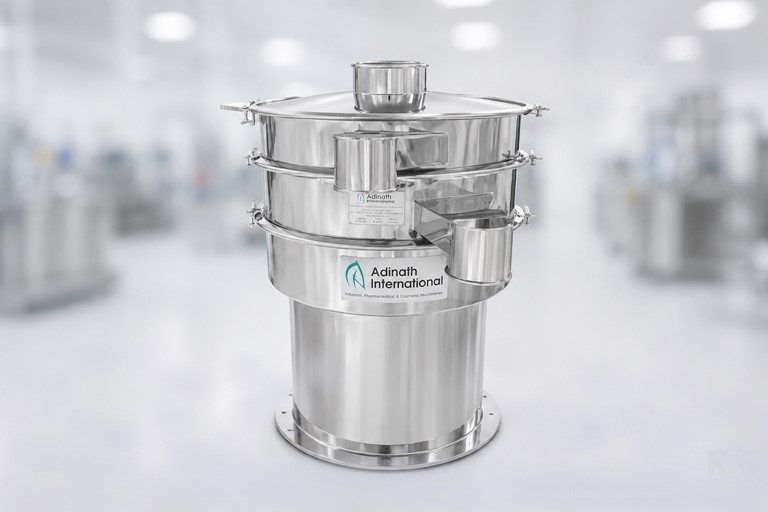

GMP Vibro Sifter (also known as a vibratory sifter, vibro screen, or gyratory sifter) is a specialized vibrating sieving machine designed to comply with Good Manufacturing Practices (GMP) standards. It is widely used in pharmaceutical, food, chemical, and cosmetic industries for screening, grading, and separating powders, granules, and liquids based on particle size. The “GMP” designation means the machine is built for hygienic processing:

Contact parts are typically made of stainless steel 316 (SS 316).
Non-contact parts use SS 304.
Features include easy cleaning, no crevices for contamination, FDA-approved materials, and smooth polished surfaces.

This ensures product purity, prevents cross-contamination, and meets regulatory requirements (e.g., FDA, WHO-GMP).

If you need details on specific models and pricing, let me know!

Salient Features of GMP Vibro Sifter

Compact GMP Model.
Stainless steel GMP construction with SS 304/SS 316 contact parts
Provided lid for dust free operation.
Easy to clean and movable machine.
Provided sieve with silicon sealing.
Low operating and maintenance cost.

Fitted with Vibro Motor, Long screen life.
Easy for assembly & de-assembly for cleaning & changeover of screens.
Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost.
Available in 20″ Dia, 30″ Dia, 36 dia. 48″ dia., 60″ Dia size sieve model
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered.

Working Principle of GMP Vibro Sifter

This vibrating energy screen is unit consisting of circular pre-tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.

Technical Specification of GMP Vibro Sifter

Model	AVS-20	AVS-24	AVS-30	AVS-36	AVS-48
Output kgs. /Hour approx.	20 to 70 kg	20 to 140 kg	30 to 250 kg	80 to 300 kg	200 to 400 kg
Screens MOC	SS 316 / 304	SS 316 / 304	SS 316 / 304	SS 316 / 304	SS 316 / 304
Screen Diameter approx.	335mm	520mm	750mm	950mm	1220mm
Charging Height approx.	1080 mm	1200 mm	1200 mm	1200 mm	1050 mm
Discharging Height approx.	625 mm	750 mm	750 mm	750 mm	500 mm
Electric Motor	0.25 H.P.	0.25 H.P.	0.5 H.P.	0.5 H.P.	1.5 H.P.
Net Weight approx.	70 Kgs.	150 Kgs.	170 Kgs.	200 Kgs.	225 Kgs.
Machine Dimension approx. (LxWxH)	750x750x1080	1120x1120X1200	1360x1360x1200	1550x1550X1200	1950x1950X1050

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of GMP Vibro Sifter

Hygienic & Contamination-Free Design

Easy Cleaning & Maintenance

Efficient & Reliable Performance

Low Noise & Vibration Isolation

Documentation & Automation Ready

Key Features of GMP Vibro Sifter

Compact GMP Model — Designed specifically for laboratory and R&D use with a small footprint, making it ideal for limited space in pilot plants and research facilities.

Stainless Steel GMP Construction — Contact parts made from high-quality SS 304 / SS 316 for superior corrosion resistance, hygiene, and compliance with pharmaceutical standards.

Dust-Free Operation — Equipped with a lid and silicon sealing for contamination-free screening and safe handling of powders/granules.

Easy Cleaning & Maintenance — Quick assembly/disassembly design for fast screen changeover, thorough cleaning, low operating costs, and long screen life.

Vibro Motor with Spring-Mounted Design — Specially designed vibratory motor with adjustable eccentric weights; springs amplify vibrations, reduce motor HP requirement, and isolate vibrations from the floor.

Portable & Movable — Lightweight, easy-to-move construction (often with castor wheels) perfect for lab environments.

Available in Multiple Sizes — Offered in diameters such as 20″, 24″, 30″, 36″, and 48″ (with options for single or multi-deck configurations).

Low Noise & Efficient — Quiet operation with high screening efficiency for small-batch processing (typically 20–140 kg/hr depending on model).

Documentation & Automation Ready — IQ/OQ documentation available; optional PLC system with Graphical User Interface (HMI).

FAQ for GMP Vibro Sifter

What is a GMP Vibro Sifter?

A GMP Vibro Sifter (also known as GMP Vibratory Sifter, Vibro Screen, or Gyratory Sifter) is a hygienic, cGMP-compliant circular vibratory screening machine designed for the pharmaceutical and allied industries. It efficiently screens, grades, and separates powders, granules, and liquids based on particle size while removing impurities and ensuring product purity. Built with SS 316 contact parts and SS 304 non-contact parts, it meets strict FDA and WHO-GMP regulatory standards.

How does the GMP Vibro Sifter work?

The machine consists of a circular pre-tensioned screen mounted on a frame with a vibratory motor. The motor imparts three-plane gyratory vibrations through revolving eccentric weights. Material fed onto the screen is separated by size — finer particles pass through to the bottom outlet, while oversize particles are discharged from the side. The entire assembly is spring-mounted, ensuring independent vibration without transmitting movement to the floor.

What are the key features of the GMP Vibro Sifter?

Compact GMP model with SS 304/SS 316 contact parts.
Dust-free operation with lid and silicon sealing.
Easy assembly/disassembly for quick cleaning and screen changeover.
Movable & portable design with low operating & maintenance cost.
Spring-mounted vibro motor for reduced power consumption and vibration isolation.
Long screen life, low noise, IQ/OQ documentation, and optional PLC with HMI.

What are the available models and capacities?

The GMP Vibro Sifter is available in multiple models:

AVS-20: 20–70 kg/hr, 20″ (335 mm) diameter, 0.25 HP
AVS-24: 20–140 kg/hr, 24″ (520 mm) diameter, 0.25 HP
AVS-30: 30–250 kg/hr, 30″ (750 mm) diameter, 0.5 HP
AVS-36: 80–300 kg/hr, 36″ (950 mm) diameter, 0.5 HP
AVS-48: 200–400 kg/hr, 48″ (1220 mm) diameter, 1.5 HP

Larger sizes up to 60″ are also available.

Which industries use the GMP Vibro Sifter?

It is primarily used in the Pharmaceutical, Biotech, Ayurvedic, Herbal, Nutraceutical, and Cosmetic industries. It is also suitable for Food Processing, Chemical, and other sectors requiring high-hygiene standards, precise particle size control, and contamination-free screening.
