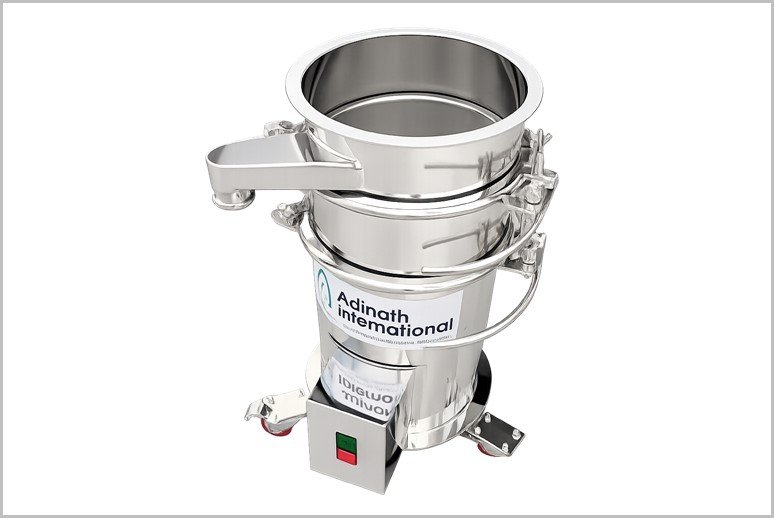

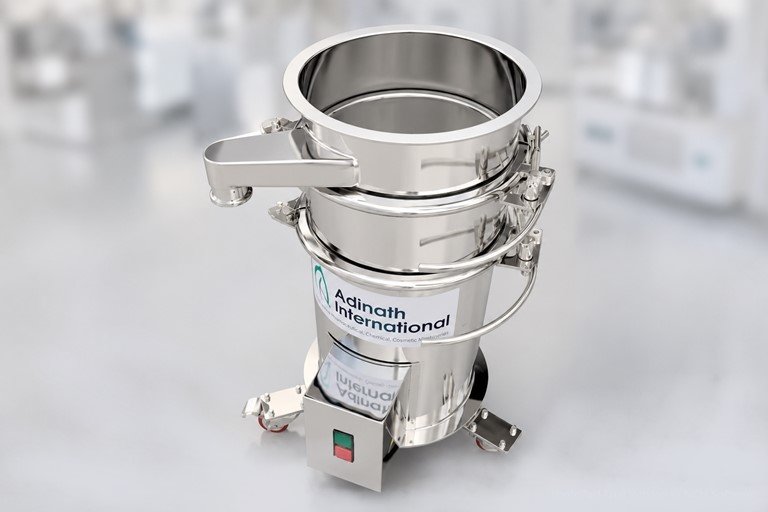

A Lab Scale Vibro Sifter (also known as a laboratory vibro sifter, R&D vibro sifter, mini vibro sifter, or small vibrating sieve machine) is a compact vibratory screening device designed for small-batch processing in research and development laboratories. It is primarily used in pharmaceutical, chemical, food, and cosmetic industries for:
-
Sieving and grading powders or granules based on particle size.
-
Separating solids from solids or solids from liquids.
-
Removing oversize particles, lumps, or contaminants (de-lumping and de-dusting).
Unlike larger industrial vibro sifters, lab models are portable, low-noise, and suitable for handling small quantities (typically 10–150 kg/hour, depending on the model).
Lab Scale Vibro Sifter Video
How It Works
The machine operates on the principle of gyratory vibration:
-
A specially designed vibratory motor with adjustable eccentric weights generates three-dimensional vibrations (horizontal, vertical, and tangential).
-
Material is fed through a top inlet onto a circular screen (mesh).
-
Smaller particles pass through the mesh and exit via a bottom outlet.
-
Larger particles move to a side outlet.
-
Springs isolate vibrations, reducing noise and floor transmission.
Many models are cGMP-compliant (current Good Manufacturing Practice), made from stainless steel (SS 304 or 316), and feature easy screen changes with clamps and gaskets for dust-free operation.
Salient Features of Vibro Sifter Machine
-
Compact GMP Model.
-
Stainless steel GMP construction with SS 304/SS 316 contact parts
-
Fitted with Vibro Motor
-
Provided lid for dust free operation.
-
Easy to clean and movable machine.
-
Provided sieve with silicon sealing.
-
Low operating and maintenance cost.
-
Long screen life.
-
Easy for assembly & de-assembly for cleaning & changeover of screens.
-
Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost.
-
Available in 20″ Dia, 30″ Dia, 36 dia. 48″ dia., 60″ Dia size sieve model
-
IQ/OQ documentation can be provided.
-
PLC system with Graphical User Interface can be offered.
Process Operation of Vibrating Screen
This vibrating energy screen is unit consisting of circular pre-tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.
Technical Specification of Lab Scale Vibro Sifter
|
Model |
AVS-20 | AVS-24 |
| Output kgs. /Hour approx. | 20 to 70 kg |
20 to 140 kg |
|
Screens MOC |
SS 316 / 304 | SS 316 / 304 |
| Screen Diameter approx. | 335mm |
520mm |
|
Charging Height approx. |
1080 mm | 1200 mm |
| Discharging Height approx. | 625 mm |
750 mm |
|
Electric Motor |
0.25 H.P. | 0.25 H.P. |
| Net Weight approx. | 70 Kgs. |
150 Kgs. |
|
Machine Dimension approx. (LxWxH) in mm |
750x750x1080 |
1120x1120X1200 |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
