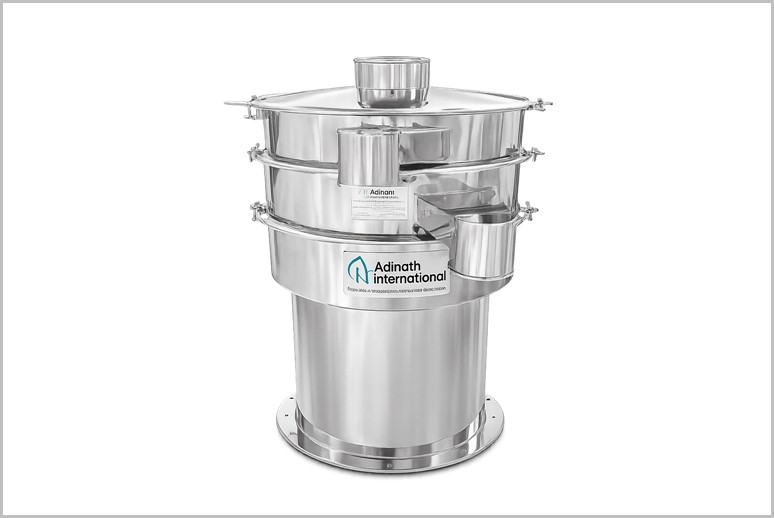

Pharmaceutical Vibro Sifter

Description

Pharmaceutical Vibro Sifter (also known as a vibratory sifter, vibro screen, or vibrating sieve) is a critical piece of equipment in the pharmaceutical industry used for separating, grading, and sieving powders, granules, and liquids based on particle size. It ensures product uniformity, removes oversized contaminants or lumps, and eliminates foreign particles, which is essential for maintaining drug quality, safety, and consistency in processes like tablet manufacturing, capsule filling, and granulation. Pharmaceutical Vibro Sifter are designed to meet strict pharmaceutical standards (e.g., GMP compliance), often constructed from high-grade stainless steel (SS 304 or 316L) for hygiene, easy cleaning, and corrosion resistance.

If you need details on specific models and pricing, let me know!

Salient Features of Pharmaceutical Vibro Sifter

Compact GMP Model.
Stainless steel GMP construction with SS 304/SS 316 contact parts
Provided lid for dust free operation.
Easy to clean and movable machine.
Provided sieve with silicon sealing.
Low operating and maintenance cost.

Fitted with Vibro Motor, Long screen life.
Easy for assembly & de-assembly for cleaning & changeover of screens.
Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost.
Available in 20″ Dia, 30″ Dia, 36 dia. 48″ dia., 60″ Dia size sieve model
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered.

Working Principle of Pharmaceutical Vibro Sifter

This vibrating energy screen is unit consisting of circular pre-tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.

Technical Specification of Pharmaceutical Vibro Sifter

Model	AVS-20	AVS-24	AVS-30	AVS-36	AVS-48
Output kgs. /Hour approx.	20 to 70 kg	20 to 140 kg	30 to 250 kg	80 to 300 kg	200 to 400 kg
Screens MOC	SS 316 / 304	SS 316 / 304	SS 316 / 304	SS 316 / 304	SS 316 / 304
Screen Diameter approx.	335mm	520mm	750mm	950mm	1220mm
Charging Height approx.	1080 mm	1200 mm	1200 mm	1200 mm	1050 mm
Discharging Height approx.	625 mm	750 mm	750 mm	750 mm	500 mm
Electric Motor	0.25 H.P.	0.25 H.P.	0.5 H.P.	0.5 H.P.	1.5 H.P.
Net Weight approx.	70 Kgs.	150 Kgs.	170 Kgs.	200 Kgs.	225 Kgs.
Machine Dimension approx. (LxWxH)	750x750x1080	1120x1120X1200	1360x1360x1200	1550x1550X1200	1950x1950X1050

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of Pharmaceutical Vibro Sifter

Particle size grading: Separates fine powders from coarser granules.

De-lumping and de-dusting: Removes lumps formed during storage or processing.

Impurity removal: Filters out oversized contaminants or foreign matter.

Quality control: Ensures uniform particle distribution for consistent dosage in tablets/capsules.

Common stages: Post-granulation screening, pre-mixing, or final product checking.

Key Features of Pharmaceutical Vibro Sifter

Sizes: Typically 12″ to 72″ diameter (e.g., 20″, 30″, 48″ common in pharma).

Decks: Single to multi-layer for multiple separations.

Materials: Contact parts in SS 316/316L; silicone gaskets/seals for hygiene.

Options: Portable (with castor wheels), flame-proof motors, ultrasonic cleaning for fine powders.

Capacity: Varies by model; high-throughput for industrial use.

FAQ for Pharmaceutical Vibro Sifter

What is a Pharmaceutical Vibro Sifter?

A Pharmaceutical Vibro Sifter (also known as Vibro Screen, Vibratory Sieve, or Gyro Screen) is a GMP-compliant circular gyratory screening machine specifically designed for the pharmaceutical industry. It separates, grades, and sieves powders, granules, and liquids based on particle size, ensuring product uniformity, removing contaminants, and maintaining strict quality standards in processes like tablet manufacturing, capsule filling, and granulation.

How does the Pharmaceutical Vibro Sifter work?

The machine features a circular pre-tensioned screen mounted on a frame with a vibratory motor. The motor generates three-plane vibrations through revolving eccentric weights. The entire assembly is spring-mounted, allowing independent vibration without transferring movement to the floor. Material fed onto the screen is separated by size via multi-plane motion, with finer particles passing through and larger ones discharged outward.

What are the key features of the Pharmaceutical Vibro Sifter?

Compact GMP model with SS 304/SS 316 contact parts for hygiene and corrosion resistance.
Dust-free operation with lid and silicon sealing.
Easy assembly/disassembly for quick cleaning and screen changeover.
Spring-mounted design reduces motor HP and isolates vibrations.
Low noise, portable, long screen life, and low maintenance.
IQ/OQ documentation and optional PLC with HMI available.

What are the available models and capacities of the Pharmaceutical Vibro Sifter?

Several models are offered to suit different production needs:

AVS-20: 20–70 kg/hr (20″ dia)
AVS-24: 20–140 kg/hr (24″ dia)
AVS-30: 30–250 kg/hr (30″ dia)
AVS-36: 80–300 kg/hr (36″ dia)
AVS-48: 200–400 kg/hr (48″ dia)

Screen diameters range from 335 mm to 1220 mm with motor power from 0.25 HP to 1.5 HP.

Which industries benefit from the Pharmaceutical Vibro Sifter?

It is primarily designed for the Pharmaceutical industry but is also widely used in Biotech, Ayurvedic, Herbal, Nutraceutical, and Cosmetic sectors. It supports precise particle size control required for high-quality manufacturing and is suitable for other industries like Food Processing and Chemicals needing contamination-free screening.
