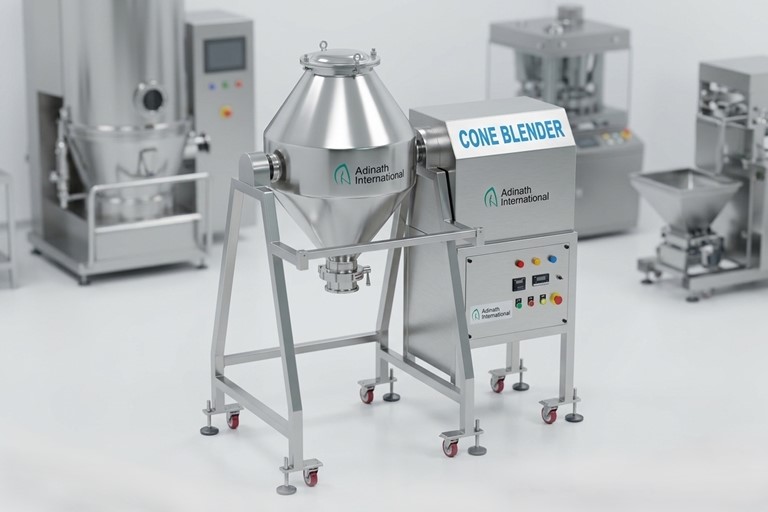

SS Pharmaceutical Powder Blender

An SS Pharmaceutical Powder Blender is a specialized mixing machine designed for the pharmaceutical industry to homogeneously blend dry powders, granules, or combinations thereof. These blenders are typically constructed from high-grade stainless steel to ensure corrosion resistance, easy cleaning, and compliance with Good Manufacturing Practices (GMP) standards. They prevent contamination, making them ideal for sensitive applications like drug formulation, where uniformity is critical to product quality and efficacy.

SS Pharmaceutical Powder Blender Video

Key Features and Benefits

• Material Construction: Mirror-polished SS inner and outer shells for hygiene and durability.

• Mixing Efficiency: Achieves up to 99% homogeneity, even with low-addition ingredients.

• Versatility: Handles capacities from lab-scale to industrial, suitable for batch or continuous processing.

• Safety and Compliance: Often includes explosion-proof options, variable speed controls, and CE/GMP certifications.

• Applications: Beyond pharmaceuticals, used in food, chemicals, cosmetics, and fertilizers for mixing dry farsan, detergents, pigments, or nutraceuticals.

Common Types of SS Powder Blenders

Here’s a comparison of popular types based on design and use:

• Ribbon Blender: U-shaped trough with helical ribbons for thorough mixing via shear and diffusion.

• V-Type Blender: V-shaped chamber rotates to tumble materials, minimizing shear for fragile particles.

• Double Cone Blender: Conical chambers rotate for gentle, gravity-based blending; SS316 for pharma.

• Rotating Bin Mixer: Bin-style for lab use; mixes powders/granules via rotation and mechatronics.

How It Works

These blenders operate on principles like tumbling, agitation, or diffusion:

1. Load powders/granules into the chamber.

2. Activate rotation/mixing mechanism.

3. Discharge via valves or conveyors for seamless integration with filling/grinding lines. For example, a ribbon blender uses counter-rotating ribbons to push material in opposing directions, ensuring even distribution.

Salient Features of Pharmaceutical Powder Blender

• Compact GMP Model.

• No Bottle – No Fill System

• Rotary Bottle Movement System with Rotary Funnel System

• Funnel with Unique Vibratory system for filling semi free flow powder at higher speed.

• All contact parts with easy removal system for Cleaning / AutoClaving / Sterilization.

• Machine construction in SS304 material.

• Filling Accuracy of ±2% depending on powder at controlled humidity below 28% Rh.

• Automatic Infeed and Exit of Bottles through Star Wheel System.

• No Bottle at infeed conveyor – Automatic Machine on/off system.

• Tool Less adjustment of Doctor Blade and Wiper Blade saves valuable time and easy for setting.

• Low Air – Machine Stop System.

• Low Vacuum – Machine Stop System.

• Toughened Glass Safety Cabinet.

Process Operation of Powder Blender

The Pharmaceutical Powder Blender have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free-flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.

Technical Specification of Pharmaceutical Powder Blender

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
