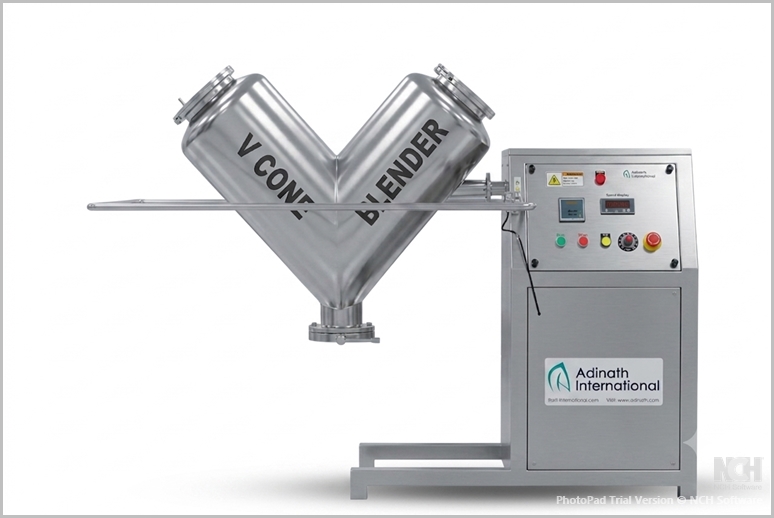

V Type Mixer

Q: What capacities and models are available for the V Type Mixer?

We offer a wide range from lab to production scale: VCB-5 : 10 L working capacity VCB-50 : 100 L working capacity VCB-100 : 200 L working capacity VCB-200 : 400 L working capacity VCB-500 : 1000 L working capacity Gross capacities range from 5 Liters to 5000 Liters. Custom sizes are available as per requirement.

Description

V Type Mixer also known as a V-Blender or V-Shaped Blender, is a type of tumble blender widely used in industrial and laboratory settings for mixing dry powders, granules, and solids. It features two cylindrical chambers joined at an angle to form a “V” shape, which promotes efficient, homogeneous blending through gentle tumbling action. This design minimizes particle size reduction, shear, and heat generation, making it ideal for fragile or abrasive materials.

Mechanism: The V-shaped vessel rotates on a horizontal axis, causing materials to cascade and free-fall repeatedly. This splits the mixture into two parts, then recombines them, achieving diffusion-based mixing with uniformity often exceeding 99%.

Mixing Time: Typically 5–15 minutes per batch, depending on load and material properties.

Optional Features: Some models include an intensifier bar for handling fine powders or agglomerates, or vacuum capabilities for drying during blending.

Best for free-flowing, dry materials; less effective for very sticky or liquid-laden powders without add-ons.

Requires careful loading (50–70% capacity for optimal mixing).

If you need details on specific models and pricing, let me know!

Salient Features of V Type Mixer

Compact GMP Model.
Capacity available from 5 Liters to 5000 Liters.
The conical shape at both ends enables uniform mixing and easy discharge.
All contact parts are made out of Stainless Steel 316 / 304 / MS quality material as per requirements.
Two nos. of safety road will be provided at back side. (One LH side & one RH side)
One shaft with 3 / 4 nos. of fixed baffles provided inside the cone.
Safety guards provided with limit switch to not start the machine when safety guards are not in proper position. (optional)

All moving parts with suitable covers.
Control Panel having three phase indication, D.O.L. starter, digital timer & Amp. Meter. (optional)
The conical shape at both ends enables uniform mixing and easy discharge.
Worm reduction gear use for speed reduction.
Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.
General structure made out of SS 304 and Polished to the matt/mirror finish (as required by you).

Working Principle of V Type Mixer

The V shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free-flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbling the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.

Technical Specification of V Type Mixer

Model No.	Gross Capacity approx.	Working Capacity approx.	Overall Dimensions (in mm) (L) x (W) x (H) approx.	Discharge Height	Charge Opening	Power Supply
VCB-5	16 Ltrs	10 Ltrs	750x580x650	300mm	100mm	0.5 H.P.
VCB-10	35 Ltrs	20 Ltrs	1100x450x1200	300mm	100mm	0.5 H.P.
VCB-25	80 Ltrs	50 Ltrs	1200x600x300	450mm	150mm	1.0 H.P.
VCB-50	150 Ltrs	100 Ltrs	1400x800x1500	450mm	150mm	2.0 H.P.
VCB-100	300 Ltrs	200 Ltrs	1850x900x1900	450mm	200mm	2.0 H.P.
VCB-150	470 Ltrs	300 Ltrs	2000x1100x2000	450mm	200mm	5.0 H.P.
VCB-200	615 Ltrs	400 Ltrs	2100x1200x2100	450mm	200mm	6.0 H.P.
VCB-250	770 Ltrs	500 Ltrs	2200x1300x2200	450mm	200mm	7.5 H.P.
VCB-300	1000 Ltrs	600 Ltrs	2300x1400x2300	450mm	200mm	7.5 H.P.
VCB-400	1340 Ltrs	800 Ltrs	2350x1800x2350	600mm	250mm	7.5 H.P.
VCB-500	1500 Ltrs	1000 Ltrs	2400x1900x2400	800mm	250mm	10 H.P.
VCB-650	2000 Ltrs	1300 Ltrs	2800x2100x2700	800mm	250/400 mm	10 H.P.
VCB-750	2500 Ltrs	1500 Ltrs	3000x2200x2600	800mm	250/400 mm	10 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of V Type Mixer

Efficiency: Rapid, low-energy blending with minimal segregation.

Scalability: Easily sized from small batches to large production runs.

Hygiene: Smooth surfaces prevent residue buildup; GMP-compliant options available.

Cost-Effective: Low maintenance, no blades to wear out.

Key Features of V Type Mixer

Unique V-Shaped Design Two cylindrical shells joined at an angle (typically 75°–90°) create continuous splitting, cascading, and recombining of materials during rotation. This ensures superior mixing uniformity (often >99%) without internal agitators in standard models.

Gentle Low-Shear Mixing Ideal for fragile, heat-sensitive, or abrasive materials. Minimal particle attrition, no heat generation, and preservation of material integrity.

High Mixing Efficiency Achieves homogeneous blends in short mixing times (typically 5–15 minutes) through gravity-based diffusion and tumbling action.

cGMP & GMP Compliant Construction Mirror-polished SS 304 / SS 316L contact parts, no dead corners, easy-to-clean design suitable for pharmaceutical, nutraceutical, food, chemical, and cosmetic industries.

Near Complete Discharge Butterfly valve or slide valve discharge ensures minimal material retention and easy unloading.

Low Power Consumption & Maintenance Simple mechanical design with fewer moving parts results in lower energy use and reduced maintenance compared to high-shear mixers.

Safety & Operational Features
- Safety guards with interlocks
- Variable speed drive (optional)
- Easy loading through large ports
- Optional intensifier bar (for breaking lumps) and liquid spraying system
- Available with vacuum charging and bin blending systems

FAQ for V Type Mixer

What is a V Type Mixer and what is it used for?

The V Type Mixer, also known as V Blender or V Cone Blender, is a tumble-type mixer with two cylindrical shells joined at an angle to form a “V” shape. It is designed for gentle, homogeneous blending of dry powders, granules, and free-flowing solids. It is widely used in Pharmaceutical, Ayurvedic, Herbal, Nutraceutical, Biotech, Cosmetic, Food, and Chemical industries for mixing APIs, excipients, and other sensitive materials with minimal shear and heat generation.

How does the V Type Mixer work?

The V-shaped vessel rotates slowly on a horizontal axis. Materials inside split into two portions with each rotation, then recombine and cascade due to gravity. This diffusion-based tumbling action, enhanced by the long conical ends and optional baffles, delivers excellent blend uniformity (often >99%) in just 5–15 minutes. Optimal results are achieved when loaded to 50–70% of gross capacity.

What are the key features and advantages of the V Type Mixer?

Unique V-shaped design for superior mixing uniformity with low shear
cGMP-compliant construction with SS 304 / SS 316 contact parts
Gentle mixing ideal for fragile, heat-sensitive, or abrasive materials
Easy and complete discharge via butterfly valve with minimal residue
Low power consumption, easy cleaning, and low maintenance
Safety guards, food-grade gaskets, and optional intensifier bar
Compact GMP model with capacities from 5 L to 5000 L.

What capacities and models are available for the V Type Mixer?

We offer a wide range from lab to production scale:

VCB-5: 10 L working capacity
VCB-50: 100 L working capacity
VCB-100: 200 L working capacity
VCB-200: 400 L working capacity
VCB-500: 1000 L working capacity

Gross capacities range from 5 Liters to 5000 Liters. Custom sizes are available as per requirement.

How easy is it to clean and maintain the V Type Mixer?

Extremely user-friendly. The smooth mirror-polished stainless steel surfaces, conical shape with no dead corners, and simple design (no internal agitators in standard models) allow quick and thorough cleaning. Removable baffles, food-grade gaskets, and easy-access ports support fast product changeovers while maintaining strict GMP and hygiene standards.
