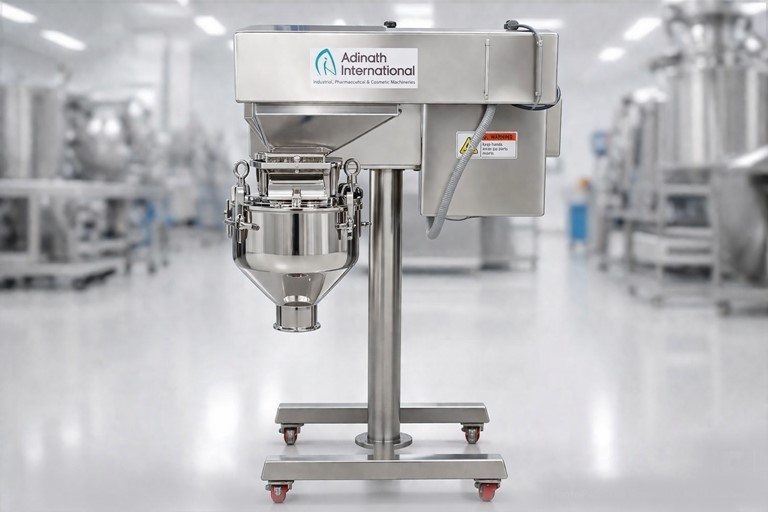

Chemical Multi Mill

Q: What capacities and models are available for the Chemical Multi Mill?

We offer models suitable for various production scales: MM-100 : Up to 100 kg/hour (1 HP) MM-200 : Up to 200 kg/hour (3 HP) MM-500 : Up to 500 kg/hour (5 HP) Variable rotor speeds (750–3000 RPM), multiple screen sizes, and customizable options are available to meet different chemical processing requirements.

Description

Chemical Multi Mill often stylized as Multimill is a versatile, high-speed grinding and milling machine primarily used for particle size reduction, granulation, pulverization, shredding, and chopping of dry or wet materials. In the chemical industry, it processes compounds, pigments, additives, intermediates, dyes, fertilizers, pesticides, resins, and plastics to achieve uniform particle sizes for improved processability, blending, and product performance.

If you need details on specific models and pricing, let me know!

Salient Features of Chemical Multi Mill

Compact GMP Model.
Suitable for dry and wet granules.
All contact parts are made out of SS304 quality material.
Castor wheel provided for the ease of mobility.
Sieves available in sizes of 0.5 to 12mm hole diameter.
12 numbers of beaters with knife edges & impact edges & 02 nos. scrapper blades.
In GMP Model complete body cladded with SS304 and polished to the matt finish & in Standard Model excluding product contact parts, all other parts made out of C.I. or M.S. and colored.

Machine rated for continuous operation.
Higher output with process uniformity.
All contact parts can easily be dismantled and cleaned for change of product.
Wide range of SS perforated screens available
Machine portable on castor wheels.
Reversible direction of blade rotation.
Different size of screen / speed / number of blade / directions of rotation of blade can be selected.

Working Principle of Chemical Multi Mill

Unit consists of S.S 316 AISI quality material rotor fitted with 8 Nos. SS blades knife/impact edge having swing action and 2 Nos. scrapper blades. Rotor assembly fitted on SS shaft with suitable bearing. Other end of the shaft directly coupled with suitable H.P./3 PHASE/415V/60CS/2800 RPM flange mounting type motor through love jaw coupling. The speed variation will be achieved through A.C. Frequency drive unit with selected 4 speeds of i.e., 2800RPM/2200RPM/1600RPM/800RPM.

S.S Charging hopper with slide plate arrangement to control the material feed rate. S.S Screen with hold plate is provided to get desired size of granules. S.S discharge hopper with necessary holding arrangement. Drive unit supported on S.S column with S.S base plate fitted with PU castor wheels to achieve portability.

Technical Specification of Chemical Multi Mill

Model	MM-100	MM 200	MM-500
Production Output	Up to 100 Kgs. / Hour.	Up to 200 kgs./hour	Up to 500 Kgs. / Hour.
Rotor assembly diameter	150 mm Approx.	250 mm (approx.)	350 mm Approx.
Rotor Speed	750 / 1500 / 2300 / 3000 RPM	750 / 1500 / 2300 / 3000 RPM	750 / 1500 / 2100 / 3000 RPM
Beaters	12 knife & impact edges & 2 scrapper blades	12 knife & impact edges & 2 scrapper blades	12 knife & impact edges & 2 scrapper blades
Screen dimensions approx.	Inner Diameter 160 mm	Inner diameter – 260 mm	Inner diameter – 350 mm
	Height 135 mm	Height – 135 mm	Height – 200 mm

Motor	1 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.	3 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.	5 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.
Starter	DOL Starter with reversible switch	DOL Starter with reversible switch	VFD Panel
Material Charging Height	1250mm	1445 mm approx.
Net Weight	80 Kgs. approx.	250 Kgs. approx.	Variable as required by client
Gross weight	150 Kgs. approx.	400 kgs. approx.	300 Kgs. approx.
Overall Dimensions approx. (LXWXH)	850mm x 950mm x 1630mm	870mm x 965mm x 1630mm	450 Kgs. approx.
Case Dimensions approx. (LXWXH)	1200mm x 1500mm x 1860mm	1200mm x 1550mm x 1860mm

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of Chemical Multi Mill

Versatile for multiple operations with controlled particle size distribution and high throughput.

Compact, portable, easy to clean/operate, low maintenance, and suitable for heat-sensitive materials with minimal heat generation.

Capacities range from lab-scale (0.5 kg) to industrial.

Compact, efficient for heat/moisture-sensitive materials, and provides narrow particle distribution for consistent quality.

Key Features of Chemical Multi Mill

Mechanism: It employs rotating beaters with knife or impact edges, combined with variable force swings and interchangeable screens (meshes) to control output particle size. Material enters the chamber, gets fragmented by the beaters, and passes through the screen for discharge, avoiding choking or heat buildup.

Construction: Typically made from stainless steel for corrosion resistance and GMP/cGMP compliance, with portable designs on castor wheels for easy mobility and cleaning.

Applications in Chemicals: Beyond pharmaceuticals, it’s applied in cosmetics, ceramics, colors/dyestuffs, food/spices, detergents, insecticides, and heavy chemicals for wet/dry granulation and homogenization. Output depends on beater shape, speed, and screen size.

Advantages: Compact, efficient for heat/moisture-sensitive materials, and provides narrow particle distribution for consistent quality. Capacities range from lab-scale (0.5 kg) to industrial .

FAQ for Chemical Multi Mill

What is a Chemical Multi Mill and what are its main applications?

A Chemical Multi Mill is a versatile, high-speed size reduction machine used for granulating, pulverizing, shredding, chopping, and mixing of dry and wet chemical materials. It is widely applied in the chemical industry for processing pigments, dyes, intermediates, fertilizers, pesticides, resins, plastics, and other bulk chemicals to achieve uniform particle size distribution for better blending, reactivity, and product quality.

How does the Chemical Multi Mill work?

Material is fed through the hopper into the milling chamber where high-speed rotating beaters (with knife and impact edges) and scraper blades subject it to impact, shearing, and cutting forces. The particles then pass through interchangeable perforated screens (0.5 mm to 12 mm). Oversized particles are recirculated until the desired size is achieved. The rotor direction is reversible for optimized performance on different materials.c

What are the key advantages of a Chemical Multi Mill?

It offers high throughput with excellent process uniformity, versatility for wet and dry materials, minimal heat generation (suitable for heat-sensitive chemicals), easy cleaning and quick product changeover, compact portable design on castor wheels, and robust corrosion-resistant construction. This results in consistent particle size, reduced fines, and improved efficiency in chemical processing.

What capacities and models are available for the Chemical Multi Mill?

We offer models suitable for various production scales:

MM-100: Up to 100 kg/hour (1 HP)
MM-200: Up to 200 kg/hour (3 HP)
MM-500: Up to 500 kg/hour (5 HP) Variable rotor speeds (750–3000 RPM), multiple screen sizes, and customizable options are available to meet different chemical processing requirements.

Why choose the Chemical Multi Mill from Injectable Machines?

Our Chemical Multi Mills feature SS304/SS316 contact parts for corrosion resistance, sturdy construction for continuous operation, easy disassembly for cleaning, reversible beaters, and reliable performance. With portable design, high output, low maintenance, customization options, and strong after-sales support, they deliver long-term reliability and efficiency for demanding chemical industry applications.
