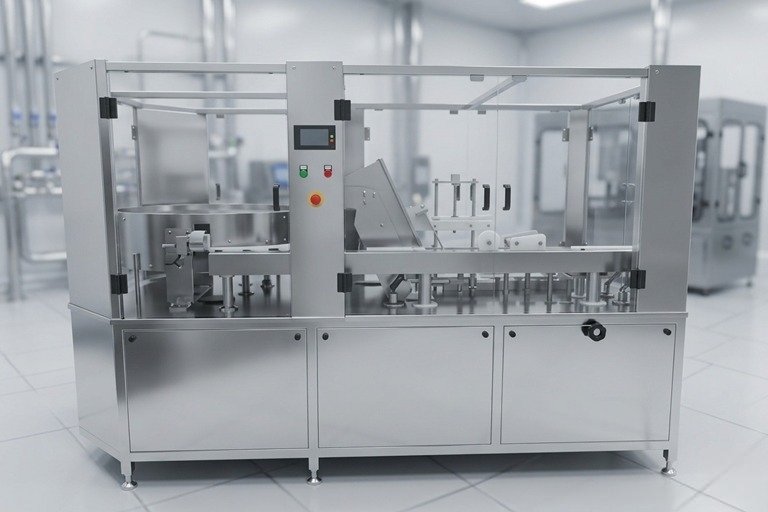

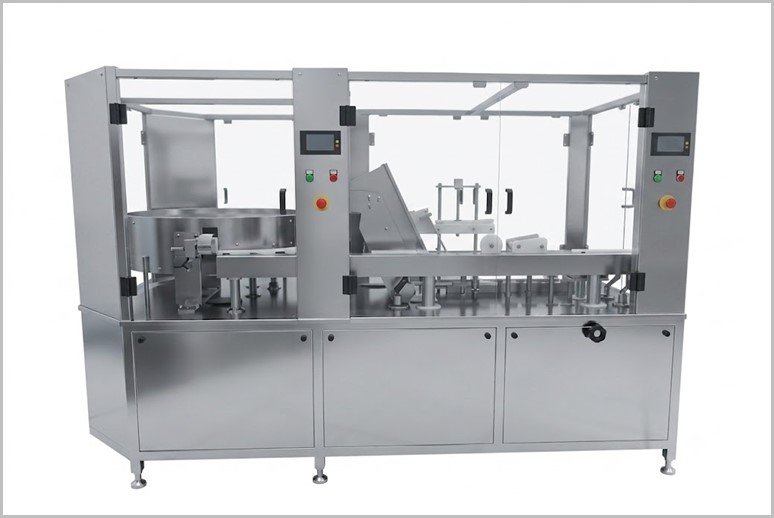

Automatic Bottle Unscrambler

Bottles are loaded in bulk into a hopper. An elevator or feeder transfers them to a rotating sorting bowl or drum with pockets/slots. Correctly oriented bottles are picked up and aligned (using gravity, air jets, or mechanical guides), while misaligned or defective ones are rejected and recirculated. Properly oriented bottles are then discharged in an orderly row onto the out-feed conveyor. Optional features can include ionized air rinsing or vacuum cleaning.

It handles plastic (including PET and HDPE), glass, and other common packaging materials. It accommodates round, square, flat, oval, and irregular shapes typically used in pharmaceuticals, cosmetics, food, and chemical industries. Contact parts are designed to avoid scratching or damaging lightweight containers.

Depending on the model and bottle size, speeds typically range from 300 to 650+ bottles per minute. The machine is engineered to match the high-speed requirements of downstream filling, plugging, and capping lines without creating bottlenecks.

Main frames, covers, and all product-contact parts are made from high-grade SS 304 or SS 316 stainless steel for corrosion resistance, durability, and compliance with pharmaceutical GMP hygiene standards. The open, accessible layout with transparent safety guards allows easy cleaning, sanitation, and inspection.

The machine features modular parts and adjustable guides that enable operators to switch between bottle sizes with minimal downtime. Advanced models support tool-less changeovers, making it flexible for multi-product lines.

Intelligent sensors monitor line pressure and bottle flow, automatically pausing or slowing the machine to prevent jamming or tipping. Photoelectric sensors detect backpressure on the out-feed conveyor and stop the unscrambler when downstream equipment is full, restarting when the line clears. Operation is managed via a user-friendly HMI touchscreen linked to a PLC for speed adjustment, status monitoring, and output tracking.

It is widely applied in the pharmaceutical, nutraceutical, herbal, Ayurvedic, biotech, cosmetic, and chemical industries—anywhere high-volume, consistent bottle orientation is required before filling and packaging.

Yes. It is designed for seamless integration with conveyor systems and full production lines. It eliminates manual loading bottlenecks and can include options such as dust covers, ionized air rinsing, vacuum cleaning, or Industry 4.0 connectivity for real-time monitoring.

Key benefits include significantly higher throughput, reduced labor costs and manual errors, gentle handling that prevents bottle damage, quick changeovers, lower operational downtime, and strong return on investment through improved efficiency and consistency in modern packaging operations.
