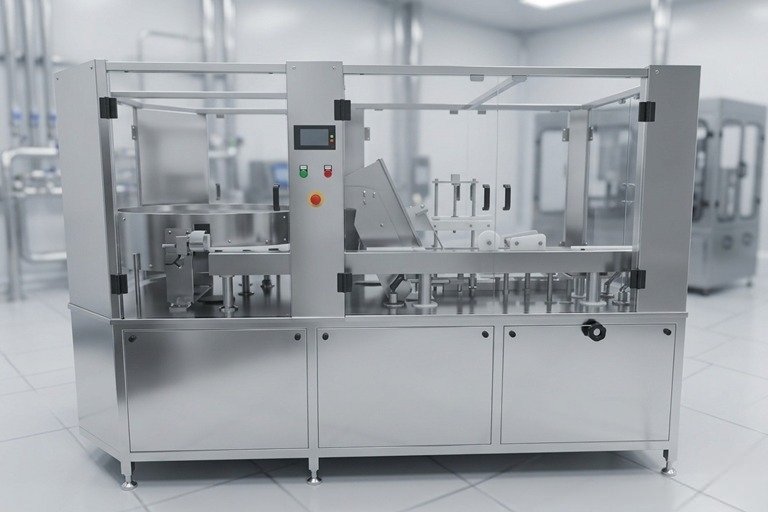

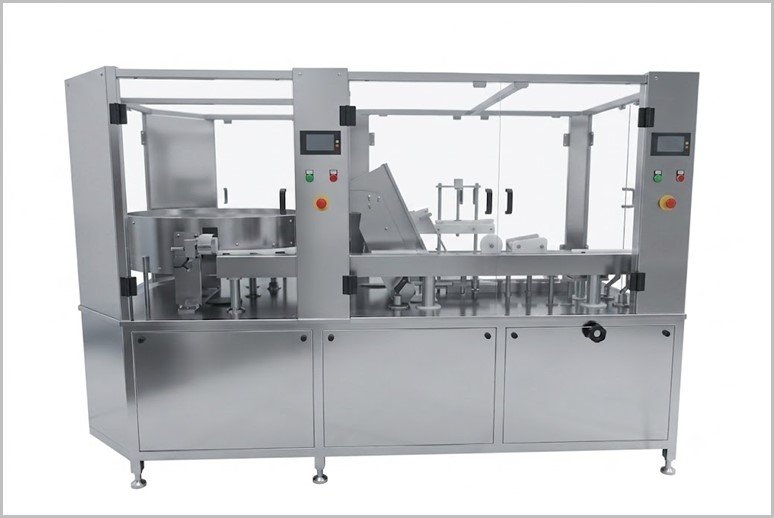

A PET Bottle Unscrambler is an automated industrial machine used in bottling production lines to sort and orient empty plastic bottles (primarily made of PET, or polyethylene terephthalate, commonly used for water, soda, and other beverages) from a random bulk pile into a single-file, upright position on a conveyor.
It eliminates manual labor by automatically feeding bottles neck-up and correctly oriented for downstream processes like rinsing, filling, capping, and labeling. This is essential in high-speed lines for beverages, pharmaceuticals, cosmetics, chemicals, and food products.
PET Bottle Unscrambler Video
How It Works
Most modern PET bottle unscramblers are rotary systems (though linear models exist):
-
Bulk Loading — Empty bottles are dumped into a large hopper or bin.
-
Elevation and Feeding — An elevator or conveyor lifts bottles into the main sorting chamber (often a rotating disc or centrifugal bowl).
-
Sorting and Selection — Bottles are distributed around the periphery. Mechanical selectors, hooks, lifters, or vacuum-assisted cradles pick up bottles. Incorrectly oriented ones (e.g., base-up) are rejected and recycled back to the hopper.
-
Orientation and Discharge — Properly oriented bottles drop through funnels or chutes onto a conveyor in an upright position, ready for the next machine.
Speeds typically range from 100–600+ bottles per minute (or higher for advanced models), depending on bottle size/shape and machine design. They handle various shapes (round, oval, rectangular) and sizes (e.g., 50ml to 3L), with quick tool-less changeovers for different formats.
Key Features
-
Gentle handling to avoid scratches on lightweight PET bottles.
-
Options like ionized air rinsing, static elimination, or integration with fillers.
-
High efficiency and low maintenance.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
