A Drilling Mud Agitator is a key piece of equipment in oil and gas drilling operations, used in the solids control system to mix and agitate drilling fluid (commonly called “mud”) inside mud tanks. Its primary purpose is to keep the mud homogeneous by suspending solid particles, preventing them from settling at the bottom of the tank. This maintains consistent mud density, viscosity, and rheology, which is essential for efficient drilling, wellbore stability, and effective solids removal.
Without agitation, solids like cuttings, barite, or silt would precipitate, leading to issues such as uneven mud properties, blockages in equipment, or reduced performance of downstream solids control devices (e.g., shale shakers or centrifuges).
Drilling Mud Agitator Video
Key Functions
-
Suspends solids: Prevents sedimentation of heavy particles.
-
Maintains uniformity: Ensures even distribution of additives and weighting materials.
-
Adjusts fluidity: Provides shear to control viscosity and prevent gelling.
-
Supports circulation: Allows solids to flow through the purification system without settling.

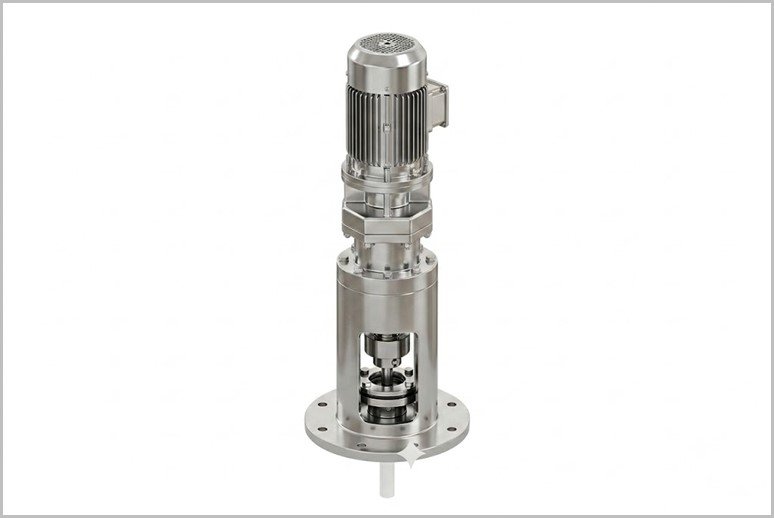

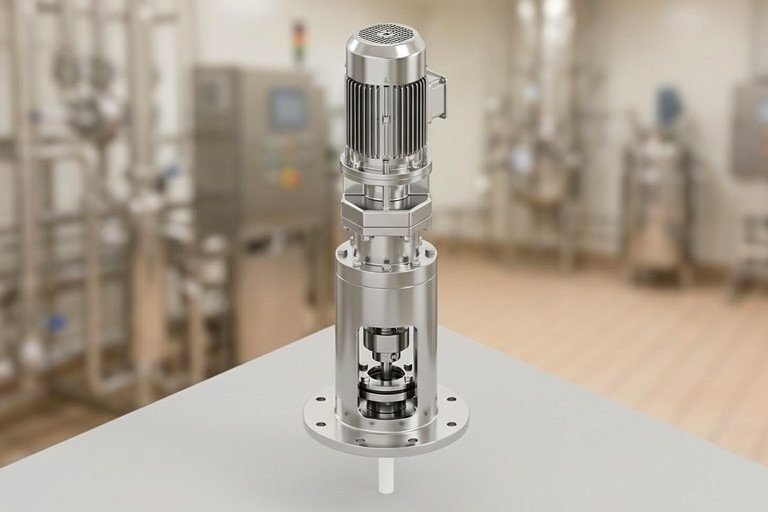

Components and Design
-
Explosion-proof motor: Powers the system.
-
Gearbox/reducer: Often worm gear, helical-bevel, or cycloidal for torque and speed reduction.
-
Shaft and impeller: Long shaft with canted or angled blades tailored to tank depth and mud weight.
-
Types: Horizontal or vertical.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
