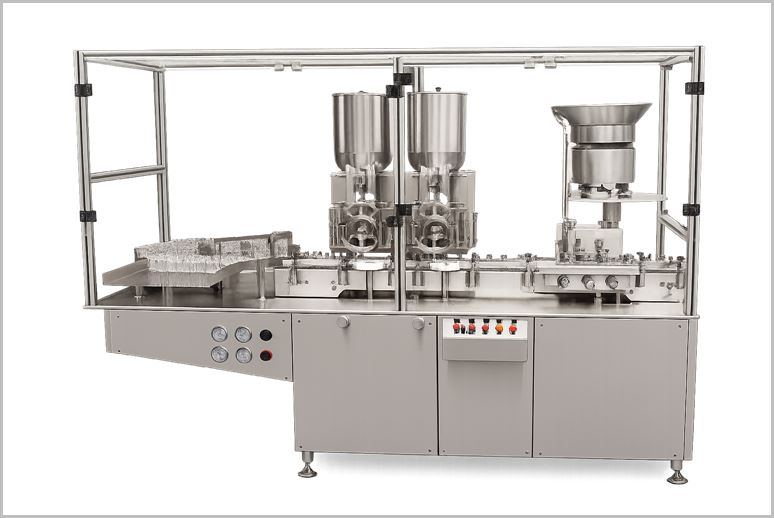

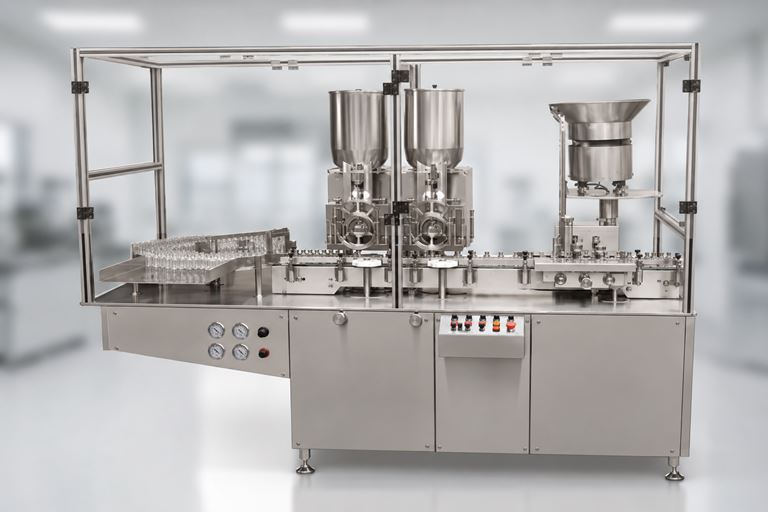

Veterinary Powder Filling Machine For Bottles

Q: What is the production capacity and filling accuracy of the machine?

The machine is available in two models: AI-DPM 12 : Up to 80 bottles per minute AI-DPM 16 : Up to 120 bottles per minute It can fill 5gms to 70gms per dose (with change parts) with a filling accuracy of ±2% , depending on the powder characteristics, when operated under controlled humidity below 28% RH.

Description

Veterinary powder filling machine For Bottles are specialized equipment designed for accurately dosing and packaging dry powders, granules, or ultrafine powders into bottles. Powder Filling Machine are essential in the veterinary pharmaceutical industry for handling products like animal medications, feed additives, herbal powders, and premixes. They ensure precise filling to meet regulatory standards for dosage accuracy, sterility, and contamination prevention, often using auger (screw-based) metering for non-free-flowing powders. Veterinary Powder Filling Machine are widely used in small to large-scale operations, from labs to production lines, and can integrate with capping, labeling, or sealing systems for complete packaging. Key benefits include high precision, adjustable fill volumes, and compatibility with various bottle sizes.

If you need details on specific models and pricing, let me know!

Salient Features of Veterinary Powder Filling Machine For Bottles

Filling Accuracy of ±2% depending on powder at controlled humidity below 28% Rh.
Automatic Infeed and Exit of Bottles through Star Wheel System.
Rotary Bottle Movement System with Rotary Funnel System
Funnel with Unique Vibratory system for filling semi free flow powder at higher speed.
All contact parts with easy removal system for Cleaning / Autoclaving / Sterilization.
Tool Less adjustment of Doctor Blade and Wiper Blade saves valuable time and easy for setting.

Monoblock cGMP Model.
“No Bottle – No Fill” System
No Bottle at infeed conveyor – Automatic Machine on/off system.
Machine construction in SS304 material.
Low Air – Machine Stop System, Low Vacuum – Machine Stop System.
Toughened Glass Safety Cabinet.

Working Principle of Veterinary Powder Filling Machine For Bottles

The incoming sterilized dry bottle is fed through the in-feed turn table. Suitable guide supply bottles on to flat conveyor belt at the required speed for feeding. There is filling head mounted on machine top plate in the same line.

When bottle reaches to the mechanical holder detained filling station, Bottle sensor sense the bottles and Magnetic clutch starts to rotate which is mounted on auger shaft. It fills the desired amount of powder into the bottle through auger, where rotation time is previously determined.

Duly filled bottles go upward on to the sealing station with the help of SS conveyor belt.

Technical Specification of Veterinary Powder Filling Machine For Bottles

Models	AI-DPM 12	AI-DPM 16
Production Output	Up to 80 bottles/minute	Up to 120 bottles/minute
Bottle Diameter	Up to 85mm	Up to 85mm
Bottle Height	Up to 200mm	Up to 200mm
Fill Volume	5gms. To 70gms. in Single Dose with the help of change parts for different fill volume	5gms. To 70gms. in Single Dose with the help of change parts for different fill volume
Fill Accuracy	± 2% Depending upon the Powder, under the controlled level of Humidity	± 2% Depending upon the Powder, under the controlled level of Humidity
Humidity	Below 28% Rh required on machine to be arrange by customer	Below 28% Rh required on machine to be arrange by customer
Power	2.0 H.P. For Machine and 3.0 H.P. For Vacuum Pump	2.5 H.P. For Machine and 3.0 H.P. For Vacuum Pump
Overall Dimension	1700 mm (L) x 1000 mm (W) x 1800 mm approx.	2000 mm (L) x 1200 mm (W) x 1800 mm approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machine

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machine

Advantages of Veterinary Powder Filling Machine For Bottles

Improved Hygiene and Reduced Contamination Risk

High Speed and Production Efficiency

Labor Savings and Reduced Human Error

Dust Control and Minimal Product Loss

Integration into Full Production Lines

Key Features of Veterinary Powder Filling Machine For Bottles

Accuracy & Dosage: Auger systems use custom screws for volumetric filling, achieving ±1% error. Net weight modes allow real-time adjustments.

Materials: Stainless steel construction for corrosion resistance and easy cleaning; food-grade for non-sterile apps.

Container Compatibility: Adjustable nozzles/funnels for bottles from 10ml vials to 5L pails; works with rigid containers like PET or glass.

Hygiene & Safety: Dust-proof designs, sterile options, and compliance with GMP/ISO standards for veterinary pharma.

Power & Portability: Most run on 220V/110V; semi-auto models are lightweight for easy setup.

FAQ for Veterinary Powder Filling Machine For Bottles

What is a Veterinary Powder Filling Machine for Bottles and what is it used for?

The Veterinary Powder Filling Machine for Bottles is a specialized auger-based filling system designed to accurately dose and fill dry powders, granules, and veterinary formulations (such as animal medications, feed additives, herbal powders, and premixes) into bottles. It is widely used in the veterinary pharmaceutical industry to ensure precise dosage, high hygiene standards, and compliance with cGMP requirements while minimizing contamination.

What is the production capacity and filling accuracy of the machine?

The machine is available in two models:

AI-DPM 12: Up to 80 bottles per minute
AI-DPM 16: Up to 120 bottles per minute

It can fill 5gms to 70gms per dose (with change parts) with a filling accuracy of ±2%, depending on the powder characteristics, when operated under controlled humidity below 28% RH.

What types of powders and bottle sizes can the machine handle?

The machine is ideal for semi-free-flowing to non-free-flowing veterinary powders, dry syrups, granules, and antibiotics. It handles bottles with diameters up to 85mm and heights up to 200mm. All product contact parts are made of high-quality stainless steel (SS304/SS316) for easy cleaning, sterilization, and to maintain hygiene in veterinary applications.

What are the key features of the Veterinary Powder Filling Machine?

Auger filling with unique vibratory funnel system for higher speed and accuracy
Automatic “No Bottle – No Fill” system
Rotary bottle movement with star wheel infeed and exit
Tool-less adjustment of doctor blade and wiper blade
Easy removable contact parts for cleaning/autoclaving
Toughened glass safety cabinet and low air/vacuum machine stop system
Monobloc cGMP model with SS304 construction

Why is humidity control important and how easy is the machine to maintain?

Humidity must be maintained below 28% RH to prevent powder clumping, bridging, or inconsistent flow, which ensures consistent filling accuracy. The machine is designed for easy maintenance with tool-less adjustments, quick-change parts, and easily removable contact parts for cleaning and sterilization. This reduces downtime and supports long-term reliable operation in veterinary production lines.
