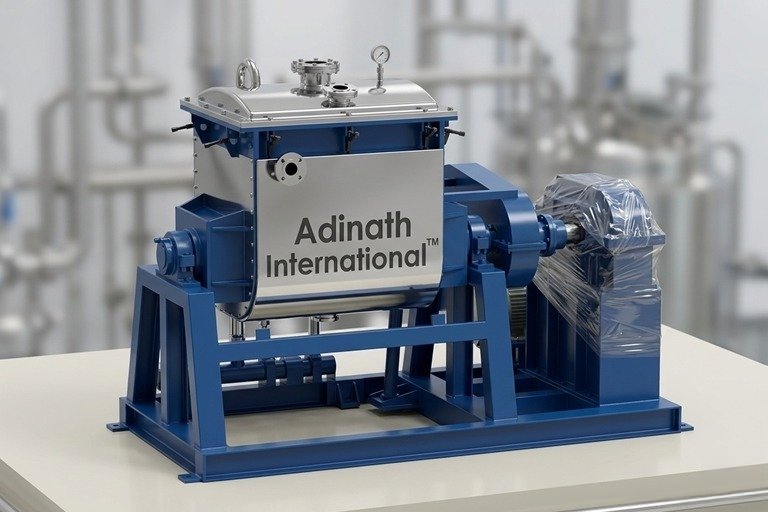

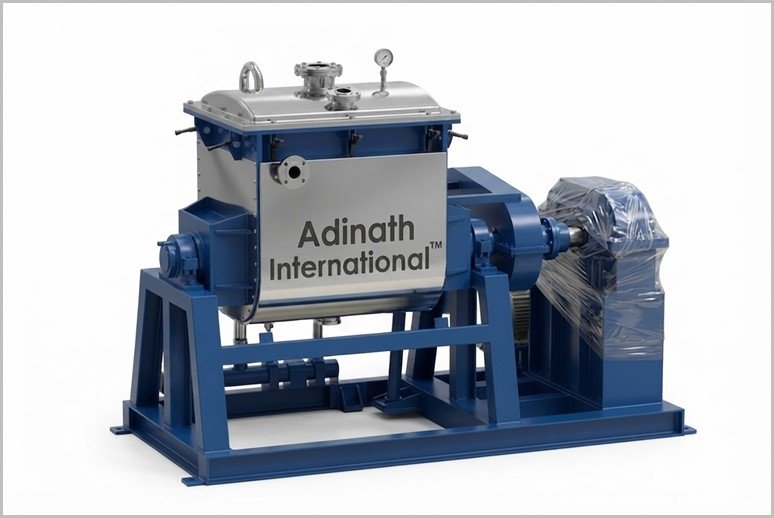

The Bechamel Sauce Sigma Mixer (also known as Double Arm Sigma Blade Mixer or Z-Blade Mixer) is the perfect machine for large-scale, commercial production of Béchamel sauce (white sauce), Mornay sauce, cheese sauces, creamy fillings, and other roux-based or dairy-based viscous sauces.
High Quantity Sigma Mixer Video
Why Sigma Mixer is the best choice for Béchamel sauce in high volumes:
-
Excellent kneading & folding action: The overlapping sigma (Z-shaped) blades create intense shearing, folding, and stretching that perfectly incorporates roux (butter + flour) into milk without lumps and achieves a silky-smooth, homogeneous texture.
-
Handles extremely thick & sticky pastes: Béchamel thickens dramatically as it cooks – the powerful sigma blades easily manage viscosities from thin milk to very thick sauce (up to 1–3 million cP).
-
Uniform heating & temperature control: Jacketed bowl with steam/hot oil/electric heating and optional cooling allows precise cooking temperature and prevents scorching on the walls.
-
No dead zones: Tangential or overlapping blade design ensures 100 % material movement – critical for consistent sauce quality in large 500–3000 liter batches.
-
Vacuum or tilt discharge for fast & complete emptying.
Key Advantages for Béchamel Sauce Manufacturers
-
Batch-to-batch consistency even at 1–3 tons per batch
-
Reduced cooking time thanks to excellent heat transfer and constant mixing
-
Minimal product loss and easy CIP cleaning
-
Can handle additives (cheese, cream, spices, stabilizers) in the same vessel after the base sauce is ready
-
ATEX explosion-proof versions available if using flour dust zones
Salient Features of Sigma Mixer Machine
-
Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
-
Stainless Steel polish to matt & mirror finish as per customer’s requirements.
-
Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
-
Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
-
Jacket for heating or cooling application can be offered.
-
Mineral wool insulation with cladding on jacket.
-
Tangential designed ‘Z’ blades offered for uniform mixing.
-
PTFE made shaft sealing provided for food grade compatibility.
-
Minimum gap between trough inner shell & blades removes possibility of sticking product.
-
On demand Spray system, vacuum system
Optional Features/Accessories of Sigma Mixer
-
Liquid Spray System
-
Vacuum System
-
Blades Cooling Arrangement
-
Screw System
-
Automatic Valve Discharge System
Process Operation of Bechamel Sauce Sigma Mixer
In Sigma mixer tangential action of mixing and kneading obtained by ‘Z’ type (SIGMA) shaped kneading blades, which rotates very accurately at different speed towards each other causing product to be transferred from one end to another end. Discharge of the finished product is achieved by tilting the container or through the valves at the bottom or by means of an extrusion screw beside the container.
The mixing action is a combination of bulk movement, stretching, folding, dividing, and recombining of the material. The shearing & tearing action of the material against blades and the side walls causes size reduction of the solids. After the time period required for sterilizing the batch has elapsed, the heating circuit shuts of the pneumatics damper (exhaust) opens and cooling operation commences.
In the tangential design, the blades rotate in the trough meeting tangentially. The front blade generally rotates faster than the rear blade usually in the ratio of 3:2. Tangential blades are generally used for material of higher viscosities such as adhesives, rubber compounds, flush colors, dyes, and pigments.
In the overlapping design, the blades overlap above the saddle of the container. Due to the overlapping action, it is necessary that the relative position of the two blades is unchanged, and as a result, both the blades rotate at the same speed. Materials that flow freely or creep down into the blades are mixed using the overlapping blade action. This design offers a faster interchange of material from one blade compartment of the mixer to the other. Overlapping blade action is used for materials of lighter viscosities such as carbon pastes, clay coating, creams, and ointments. The overlapping blade produces a lower kneading and shearing compared to the tangential blade action.
Technical Specification of High Quantity Sigma Mixer
| Model | Capacity – Liters | Motor (H.P.) | ||
| Working Capacity approx. | Gross Capacity approx. | General | Heavy Duty | |
| ASM – 50 | 50 Liters | 80 Liters | 5 H.P. | 7.5 H.P. |
| ASM – 75 | 75 Liters | 110 Liters | 7.5 H.P. | 10 H.P. |
| ASM – 100 | 100 Liters | 150 Liters | 10 H.P. | 15 H.P. |
| ASM – 150 | 150 Liters | 200 Liters | 15 H.P. | 20 H.P. |
| ASM – 200 | 200 Liters | 300 Liters | 20 H.P. | 25 H.P. |
| ASM – 400 | 400 Liters | 550 Liters | 30 H.P. | 40 H.P. |
| ASM – 500 | 500 Liters | 750 Liters | 40 H.P. | 50 H.P. |
| ASM – 750 | 750 Liters | 1150 Liters | 50 H.P. | 60 H.P. |
| ASM – 1000 | 1000 Liters | 1500 Liters | 60 H.P. | 70 H.P. |
| ASM – 1500 | 1500 Liters | 2100 Liters | 75 H.P. | 80 H.P. |
| ASM – 2000 | 2000 Liters | 2600 Liters | 80 H.P. | 90 H.P. |
| ASM – 3000 | 3000 Liters | 3800 Liters | 100 H.P. | 120 H.P. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
