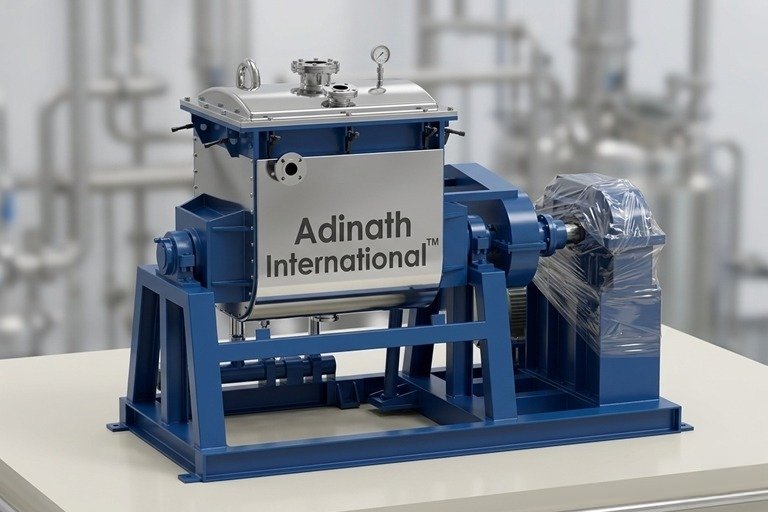

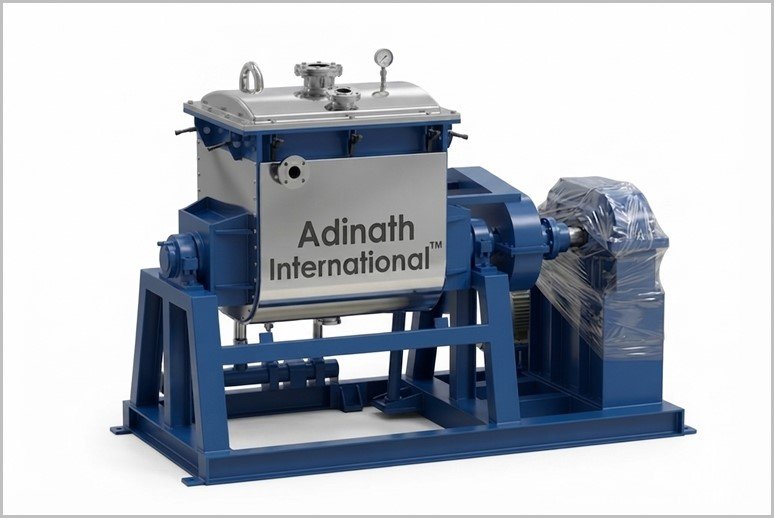

Extruder Sigma Mixer

Description

A Sigma Mixer Extruder, also widely known as a Kneader Extruder, Sigma Blade Mixer with Extruder, or simply Sigma Kneader, is a high-performance industrial mixing machine engineered specifically for handling highly viscous, sticky, and dough-like materials. This versatile equipment combines the powerful kneading action of traditional sigma blade mixers with an integrated extrusion screw, enabling thorough mixing and efficient product discharge in a single unit.

The Sigma Mixer Extruder stands out in the world of industrial mixing equipment due to its unique dual-function design. At its core, it features two heavy-duty sigma-shaped blades that rotate at different speeds in a specially contoured mixing chamber. These blades provide intensive kneading, folding, and shearing action, ensuring uniform dispersion of ingredients even in the toughest formulations.

Once mixing is complete, the integrated extrusion screw (typically located at the bottom of the trough) activates to push the homogeneous mass out through a die or discharge port. This eliminates the labor-intensive manual unloading common with standard sigma blade mixers, significantly improving operational efficiency and reducing downtime.

Salient Features of Extruder Sigma Mixer

Built from heavy-duty engineering alloys, including SS 304, SS 316, and carbon steel (Mild Steel).
Stainless configurations can be custom-textured to feature either a brushed matte finish or an ultra-bright mirror look.
Mild steel frameworks receive thorough rust protection consisting of a foundational red oxide primer layer sealed with dual coats of epoxy finish.
Designed with micro-tolerances between the inner shell and agitator blades to prevent any residue accumulation or dead pockets.
Optional thermal utility jackets available to facilitate external temperature conditioning (heating or chilling).

Heating/cooling jackets safely enveloped in mineral wool insulation and sealed with protective metal sheet cladding.
Integrated with specially configured tangential 'Z'-profile agitators to deliver consistent, homogeneous blending results.
Fitted with PTFE shaft packings to ensure absolute safety, sanitary standards, and food-grade compatibility.
Unloading choices include manual hand-wheel controls or fully mechanized hydraulic operations.
Specialized optional integrations available upon request, featuring targeted liquid spray injection networks and hermetically sealed vacuum processing chambers.

Working Principle of Extruder Sigma Mixer

Blending Dynamics & Structural Mechanics

Counter-Flow Kneading Action: Twin ‘Z’-geometry (Sigma) agitators revolve precisely at differential speeds toward each other, continuously driving media from side to side while merging bulk displacement, stretching, folding, splitting, and re-fusion.
Agglomerate Particle Reduction: High-intensity shearing and tearing friction developed between the rotating blades and chamber walls efficiently breaks down solid structures.
Automated Thermal Transitions: Once the batch sterilization time expires, the thermal heating circuit cuts off, the pneumatic exhaust flap opens automatically, and the cooling cycle initiates.

Unloading Options

Processed batches can be emptied via three alternative evacuation routes:

Tilting the entire mixing container
Releasing through bottom outlet valves
Extruding via a lateral side-mounted screw

Agitator Configurations & Industry Applications

Tangential Blade Architecture

Operational Design: Non-intersecting agitators revolving side-by-side at varying speeds, typically operating on a 3:2 velocity ratio (with the lead blade moving faster than the rear).
Primary Applications: High-viscosity formulations such as heavy adhesives, rubber compounds, flush colors, industrial dyes, and dense pigments.

Overlapping Blade Architecture

Operational Design: Intersecting agitators crossing above the central trough ridge, requiring fixed relative positioning and identical rotational speeds to accelerate cross-compartment transfer.
Primary Applications: Lower-viscosity, free-flowing, or creeping substances such as carbon pastes, ceramic clay coatings, cosmetic creams, and pharmaceutical ointments.
Performance Characteristic: Generates a milder kneading and shearing profile compared to the tangential layout.

Technical Specification of Extruder Sigma Mixer

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Specifications and Variations of Extruder Sigma Mixer

Capacity: Ranges from lab-scale (5–50 liters) to production-scale (up to 5,000–10,000 liters).

Materials: Typically stainless steel (e.g., SS304/316) for food/pharma grades; carbon steel for heavy-duty industrial use.

Power: Varies by size; e.g., 5–10 HP for small models, up to 100+ HP for large ones.

Discharge Options: Screw extrusion (standard), tilting bowl, or bottom plate.

Key Components of Extruder Sigma Mixer

Mixing Chamber: Typically a U- or W-shaped trough that holds the material.

Sigma Blades: Two Z-shaped or sigma-shaped blades mounted on a horizontal axis. They rotate in opposite directions (counter-rotating) at different speeds, creating a shearing, folding, stretching, and smearing action to ensure thorough mixing.

Extrusion Screw: Located in a separate cavity below the blades. During mixing, the screw rotates in reverse to feed fresh material upward into the blades, intensifying the kneading process and preventing settling. After mixing, the screw reverses direction to extrude the finished product through a discharge die at the bottom or side.

Additional Features (common in models):
- Jacket for heating/cooling (e.g., steam, hot oil, or water circulation) to control temperature.
- Hydraulic tilting mechanism for complete emptying in larger models.
- Vacuum capability for de-aeration or solvent recovery.
- Variable speed drives and explosion-proof motors for safety in volatile environments.

The process is efficient for batch operations: materials are loaded into the trough, kneaded for a set time, and then extruded directly onto downstream equipment like conveyors or packaging lines.

FAQ for Extruder Sigma Mixer

What is an Extruder Sigma Mixer and how does it differ from a standard Sigma Blade Mixer?

An Extruder Sigma Mixer (also known as a Kneader Extruder or Sigma Blade Mixer with Extruder) combines powerful sigma (Z-shaped) blade kneading with an integrated extrusion screw. Unlike standard sigma mixers that often require manual unloading, the extrusion screw efficiently discharges the mixed viscous material through a die, reducing labor and downtime while ensuring thorough mixing of sticky, dough-like substances.

How does the extrusion mechanism work in the Sigma Mixer Extruder?

The integrated extrusion screw, located at the bottom of the trough, rotates in reverse during mixing to feed material upward and intensify kneading. Once mixing is complete, it reverses direction to push the homogeneous mass out through a discharge port or die. This design enables efficient, automated discharge for high-viscosity materials.

What materials can the Extruder Sigma Mixer process?

It is engineered for highly viscous, sticky, and dough-like materials, including adhesives, rubber compounds, dyes, pigments, pharmaceutical creams, ointments, herbal pastes, cosmetic formulations, and chemical compounds. It handles both high-viscosity (tangential blades) and lighter-viscosity (overlapping blades) substances effectively.

What are the available capacity options for the Extruder Sigma Mixer?

Models range from lab-scale to production-scale. Examples include ASM-50 (50L working / 80L gross) up to ASM-3000 (3000L working / 3800L gross), with motor power from 5 HP to 120 HP depending on the model and duty (general or heavy). Custom capacities up to 5,000–10,000 liters are possible.

What construction materials and finishes are offered?

The mixer is available in Stainless Steel 316 or 304 (for pharma/food-grade) and Mild Steel. Stainless Steel options come with matt or mirror polish per customer requirements, while Mild Steel features red oxide and epoxy paint finishes. PTFE shaft seals support food-grade compatibility.

Can the Extruder Sigma Mixer support temperature-controlled processing?

Yes. It offers optional jackets for heating or cooling (using steam, hot oil, or water), along with mineral wool insulation and cladding. This helps maintain optimal material consistency for temperature-sensitive formulations.

What discharge options are available?

Discharge options include hand-wheel operated (manual) tilting, hydraulic operated (automatic) tilting (up to 180°), bottom valves, or the standard extrusion screw. Hydraulic systems often include reverse blade rotation for complete emptying.

Which industries commonly use the Extruder Sigma Mixer?

It is widely used in the Pharmaceutical, Nutraceutical, Herbal, Ayurvedic, Biotech, Cosmetic, and Chemical industries for processing high-viscosity pastes, compounds, and formulations requiring uniform dispersion.

What blade designs are available and when are they used?

Tangential ‘Z’ blades (different speeds, typically 3:2 ratio) provide high shear for viscous materials like adhesives and rubber. Overlapping blades (same speed) offer faster material interchange for lighter viscosities such as creams and ointments. A minimum gap between blades and trough prevents product sticking.

What additional features can be customized on the Extruder Sigma Mixer?

Customizations include spray systems, vacuum systems for de-aeration/solvent recovery, variable speed drives, explosion-proof motors, hydraulic tilting, and cored blades. These enhance hygiene (GMP compliance), safety, and efficiency for specific production needs.
