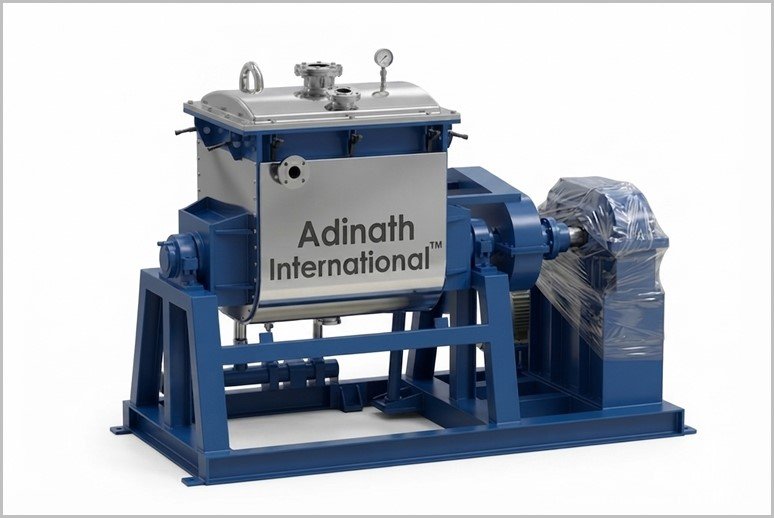

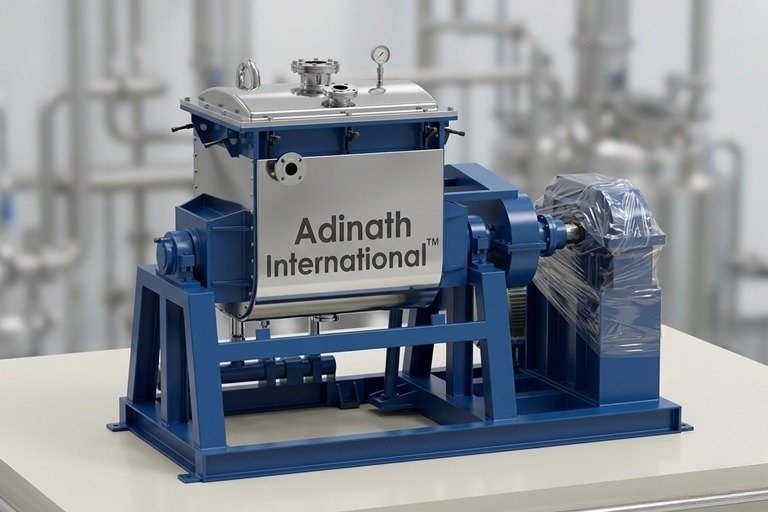

Lead Storage Battery Compound Kneader

Description

In the competitive lead-acid battery industry, the Lead Storage Battery Compound Kneader is a key piece of equipment used to create high-performance batteries for use in automobiles, UPS systems, solar energy storage, forklifts, and backup power solutions. This machine, also referred to as a lead-acid battery paste kneader, battery paste mixer, or lead paste kneading machine, is specifically designed for the challenging process of mixing high-viscosity compounds that form the active material for battery electrode plates.

A lead storage battery compound kneader is a heavy-duty, high-torque mixing machine that is specially built for preparing the lead-acid battery paste. During battery production, ingredients like lead oxide, sulfuric acid, water, and other additives are combined to form a thick, uniform paste. This paste is then applied to lead grids to create the positive and negative plates that store and release electrical energy.

The kneader features powerful rotating blades, sigma blades, or planetary mixing arms within a strong mixing chamber to thoroughly mix and spread the dense, sticky materials. Its design ensures a consistent paste density, proper particle distribution, and the correct moisture level—factors that directly affect the battery’s capacity, cycle life, and charging efficiency.

Salient Features of Lead Storage Battery Compound Kneader

Crafted from versatile metal choices, including Mild Steel along with SS 304 and SS 316 Stainless Steel grades.
Stainless Steel surfaces feature customisable finishing options, ranging from an understated matte look to a highly reflective mirror gloss.
Mild Steel builds receive dual protection, beginning with a priming layer of red oxide followed by a dual-coat epoxy shield.
Emptying functionality can be configured via a manual hand-wheel control or an automated hydraulic system.
Thermal management jackets can be integrated to support both heating and cooling processes.

Temperature retention is optimized by mineral wool insulation enclosed within a robust outer metal cladding.
Outfitted with precision-engineered tangential 'Z' agitators to ensure consistent and thorough blending.
Designed with food-safe PTFE shaft packing to maintain stringent sanitary standards and prevent leakage.
Engineered with ultra-tight clearance gaps between the rotating blades and the trough interior to eliminate residue accumulation.
Modular add-ons accessible upon request, including integrated vacuum capabilities and automated spray manifolds.

Working Principle of Lead Storage Battery Compound Kneader

Operational Mechanics & Processing Dynamics

Homogenization & Agitation: Blending occurs via twin ‘Z’ (Sigma) configuration blades spinning precisely at asynchronous rates toward one another, inducing a continuous lateral migration of the product across the vessel.
Flow Kinetics & Particle Reduction: The blending process integrates mass displacement, elongation, folding, splitting, and re-fusion. Furthermore, the intense friction and tearing forces developed between the agitators and internal boundaries facilitate the reduction of solid particle sizes.
Thermal Transition Protocol: Once the required batch sterilization period concludes, the thermal heating supply turns off, the pneumatic exhaust flap opens up, and the cooling sequence begins automatically.
Unloading Solutions: Emptying of the final batch can be performed through various versatile setups, such as pivoting the mixing trough, releasing bottom outlet valves, or operating a parallel extrusion screw.

Agitator Architecture & Application Matrix

Tangential Configuration

Movement Dynamics: The dual blades rotate within the trough along non-intersecting paths, with the front agitator normally turning faster than the rear one at a 3:2 velocity ratio.
Performance Profile: Delivers intense high-shear forces tailored for thick, heavy-bodied formulations.
Primary Uses: High-viscosity media including structural adhesives, heavy elastomer compounds, intense flush colors, dyes, and raw pigments.

Overlapping Configuration

Movement Dynamics: The blades intersect above the central saddle ridge while maintaining strict rotational synchronization, forcing both to turn at identical velocities.
Performance Profile: Facilitates rapid material transfer between chambers with softer shear and kneading action, perfectly suited for free-flowing or self-leveling substances.
Primary Uses: Lower-viscosity formulations such as carbon pastes, ceramic clay coatings, cosmetic creams, and topical pharmaceutical ointments.

Technical Specification of Lead Storage Battery Compound Kneader

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Key Features of Lead Storage Battery Compound Kneader

Handles high-viscosity, abrasive materials without excessive wear.

Options for vacuum, heating/cooling jackets, or extrusion discharge.

Ensures uniform paste density and crystal formation.

Improves production efficiency, reduces curing/drying times in some processes, and enhances plate cohesion.

Role in Lead-Acid Battery Production

Lead-acid batteries consist of positive plates (coated with lead dioxide paste) and negative plates (coated with spongy lead paste). The paste forms by kneading lead oxide powder (leady oxide) with sulfuric acid, water, and additives (like expanders). This creates a thick, dough-like compound that must be homogeneous for optimal battery performance, capacity, and cycle life.

The kneader ensures thorough mixing, dispersion, and shear to form basic lead sulfate crystals or other desired structures in the paste. Poor mixing leads to inconsistencies, reduced efficiency, or shorter battery life.

FAQ for Lead Storage Battery Compound Kneader

What is a Lead Storage Battery Compound Kneader?

It is a heavy-duty high-torque mixing machine (also called a lead-acid battery paste kneader or paste mixer) designed specifically to prepare the thick, uniform paste used for the positive and negative plates of lead-acid batteries.

Why is this kneader important in battery manufacturing?

It thoroughly mixes lead oxide, sulfuric acid, water, and additives into a homogeneous paste with consistent density, proper particle distribution, and correct moisture content—factors that directly influence battery capacity, cycle life, and charging efficiency.

How does the Lead Storage Battery Compound Kneader work?

Twin counter-rotating Z-shaped (sigma) blades turn at different speeds inside a strong mixing chamber, creating continuous shearing, folding, stretching, and kneading that disperses ingredients evenly and forms the required paste structure.

What materials of construction are available?

The machine is offered in Mild Steel, Stainless Steel 304, and Stainless Steel 316. Stainless-steel surfaces can be finished in matte or mirror polish, while mild-steel versions receive a red-oxide primer coat followed by two epoxy layers.

What capacity range is offered?

Models range from ASM-50 (approx. 50 liters working / 80 liters gross) to ASM-3000 (approx. 3000 liters working / 3800 liters gross), with general or heavy-duty motor options and adjustable voltage.

What discharge options are available?

Finished paste can be emptied by tilting the trough, opening bottom outlet valves, or using a side-mounted extrusion screw. Discharge may be manual (hand-wheel) or automatic (hydraulic), with optional automatic valve systems.

Can temperature be controlled during paste preparation?

Yes. Optional heating or cooling jackets regulate process temperature. The jackets are insulated with mineral wool and protected by outer cladding; blade-cooling arrangements can also be added.

What special design features help with the sticky battery paste?

Precision tangential Z-blades ensure thorough blending, ultra-tight clearances between blades and trough wall prevent residue buildup, and PTFE shaft packings provide reliable sealing.

What is the difference between tangential and overlapping blade designs?

Tangential blades (usually running at a 3:2 speed ratio) deliver high shear ideal for dense, viscous pastes such as battery compounds. Overlapping blades rotate at the same speed, suit lower-viscosity materials, and provide faster material interchange with milder kneading.

What optional accessories can be added?

Available options include a liquid spray system, vacuum system, blade-cooling arrangement, extrusion-screw discharge, automatic valve discharge system, and custom heating/cooling jackets.
