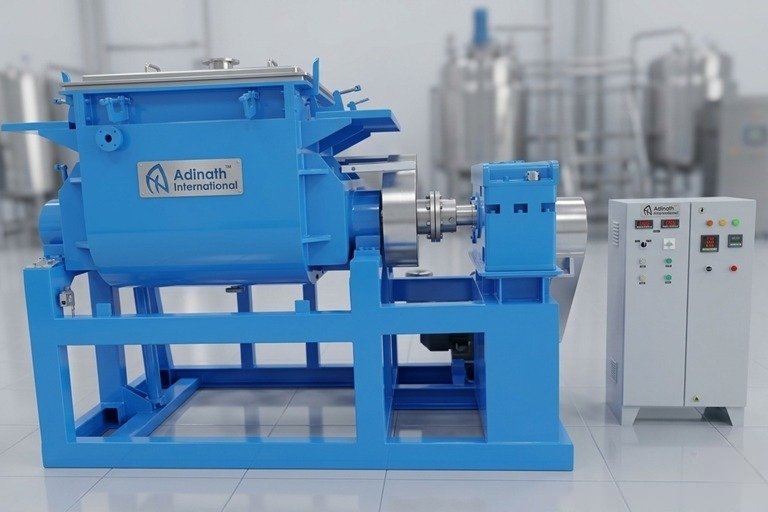

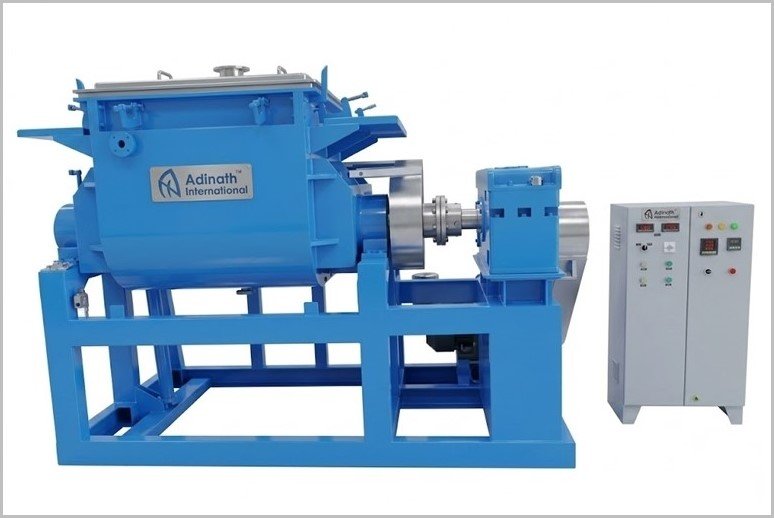

Rubber Kneader

Description

A Rubber Kneader, widely recognized as an Internal Mixer or Banbury Mixer, stands as a cornerstone heavy-duty industrial machine engineered for efficient mixing, kneading, and masticating of rubber compounds, plastics, and other high-viscosity materials. In the competitive world of polymer processing, the rubber kneader serves as the heart of modern rubber compounding processes, delivering unmatched dispersion and homogeneity essential for high-performance end products.

Whether you’re searching for a reliable rubber compound kneader, dispersion kneader, or advanced sigma mixer, this powerful equipment excels at blending raw natural and synthetic rubber with critical additives including carbon black, silica fillers, vulcanizing agents, plasticizers, processing oils, and accelerators. The result? Superior rubber compounds boasting excellent elasticity, outstanding durability, high tensile strength, and exceptional wear resistance.

Salient Features of Rubber Kneader

Fabricated using commercial structural carbon steel or premier austenitic stainless steel variants, specifically grade 304 and grade 316.
Exposed stainless components can be custom-textured to either a brushed satin finish or a high-gloss reflective mirror sheen based on buyer preferences.
Structural mild steel framing is treated with a foundational layer of rust-inhibiting red oxide primer, sealed securely beneath a dual application of protective epoxy paint.
Batch evacuation can be managed flexibly via a manual hand-crank wheel mechanism or an automated, motorized hydraulic power drive.
Optional internal heating or cooling chambers can be embedded to precisely regulate batch processing temperatures.

Fully wrapped in high-density mineral wool insulation and armored inside an outer protective metallic cladding enclosure.
Engineered with precision-configured tangential 'Z'-shaped mixing elements to guarantee complete, consistent, and uniform batch blending.
Fitted with food-safe polytetrafluoroethylene (PTFE) packings to maintain strict hygiene standards and prevent leakage or contamination.
Designed with exceptionally narrow clearance gaps between the inner vessel trough wall and the rotating blades to completely eliminate product accumulation or dead spots.
Vacuum-sealed processing chambers and fluid atomization spray assemblies available upon request.

Working Principle of Rubber Kneader

Kinematic Mechanics & Rheological Blending
- Differential Paddle Synchronization: Twin precision-engineered ‘Z’-profile mixing elements spin precisely toward one another at asynchronous rates, establishing a sweeping wiping motion that continuously shifts the batch axially across the chamber.
- Complex Compounding Matrix: The homogenization sequence merges macro-displacement, stretching, folding, splitting, and re-blending. Simultaneously, high-intensity mechanical shear and tearing forces generated between the paddles and inner walls systematically break down solid agglomerates.

Product Discharge Pathways
- Container Pivoting: The entire mixing trough can be tilted forward to empty dense, heavy, or high-viscosity finished batches.
- Base Port Drainage: Processed material can be cleared out through flush-fitted outlet valves situated at the floor of the vessel.
- Lateral Screw Augering: A parallel side-mounted extrusion mechanism can be engaged to push thick compounds smoothly out of the chamber.

Thermal Phase Automation
- Cycle Progression: Once the mandatory batch sterilization timer finishes, the heating circuit automatically disengages, the pneumatic exhaust damper opens, and the cooling stage instantly initiates.

Agitator Architecture Profiles & Material Applications

Configuration Type	Operational Mechanics	Velocity Ratio	Viscosity Range & Typical Applications
Tangential Layout	Paddles spin independently inside the trough, meeting tangentially.	Leading-to-trailing ratio of	Heavy, high-viscosity media including industrial adhesives, rubber polymers, pigment pastes, and dyes.
Overlapping Layout	Paddles cross paths directly above the center ridge, requiring exact phase lock.	(Identical speeds)	Lighter, free-flowing, or creeping substances such as cosmetic creams, pharmaceutical ointments, clay coatings, and carbon pastes.

Technical Specification of Rubber Kneader

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Advantages of Rubber Kneader

Excellent dispersion and uniformity of compound

Short mixing cycle (5–20 minutes)

Handles very high-viscosity materials

Better quality than open mill mixing

Key Features of Rubber Kneader

Type: Closed internal mixer (also called tangential or intermeshing rotor type)

Main Components:
- Mixing chamber (cylindrical or oval-shaped bowl)
- Two counter-rotating rotors (usually tangential or intermeshing)
- Pneumatic or hydraulic ram (floating weight) to apply pressure
- Heating/cooling system (jacketed chamber for temperature control)
- Discharge door (bottom or side drop)
- Drive system (electric motor + gearbox, often 100–3000 kW)

Rotor Types:
- Tangential rotors (traditional Banbury style, high shear)
- Intermeshing rotors (higher mixing efficiency, better dispersion, used in high-performance compounds)

Mixing Process:
- Raw rubber + fillers (carbon black, silica) + oils + chemicals + vulcanizing agents are loaded
- Rotors rotate at different speeds (friction ratio 1:1.1–1:1.3)
- Ram applies downward pressure to force materials into the mixing zone
- High shear and kneading action breaks down rubber and disperses ingredients uniformly
- Temperature controlled (usually 120–180°C for rubber mixing)

FAQ for Rubber Kneader

What is a Rubber Compound Kneader?

A Rubber Compound Kneader, also known as a Dispersion Kneader, Banbury Mixer, or Internal Mixer, is a high-performance industrial machine designed to blend raw natural or synthetic rubber with additives such as carbon black, silica, fillers, vulcanizing agents, plasticizers, processing oils, and accelerators. It produces uniform, high-quality rubber compounds with superior elasticity, durability, tensile strength, and wear resistance.

What are the main applications of a Rubber Compound Kneader?

It is widely used in tire manufacturing, automotive rubber parts (seals, gaskets, hoses, O-rings), footwear production, conveyor belt manufacturing, and various technical rubber goods industries where consistent compound quality is essential.

How does a Rubber Compound Kneader work?

It uses tangential ‘Z’ (Sigma) shaped kneading blades that rotate at different speeds (typically 3:2 ratio) inside the trough. This creates intense shearing, kneading, folding, stretching, and recombining actions for thorough dispersion. The closed chamber and optional ram lid enhance mixing efficiency.

What materials of construction are available for the Rubber Compound Kneader?

It is available in Stainless Steel 316, Stainless Steel 304, and Mild Steel. Stainless Steel models can be finished to matt or mirror polish as per requirements, while Mild Steel versions feature red oxide primer and epoxy paint. PTFE shaft seals are provided for compatibility.

What capacities and power options does the Rubber Compound Kneader offer?

Models range from 50 liters working capacity (ASM-50) up to 3000 liters (ASM-3000), with corresponding gross capacities and motor options from 5 HP to 120 HP (general and heavy-duty variants). Custom voltages are available to suit customer requirements.

What temperature control features are available?

Jacketed troughs with mineral wool insulation and cladding support heating or cooling applications using steam, hot oil, or water. This prevents scorching and maintains optimal mixing conditions for temperature-sensitive rubber compounds.

What discharge options are provided?

Discharge can be manual (hand-wheel operated tilting) or automatic (hydraulic tilting). Additional options include bottom valves or an extrusion screw. The tilting design also facilitates easy cleaning and color changes.

What are the key advantages of using a Rubber Compound Kneader?

It delivers excellent uniformity and dispersion of fillers, short mixing cycles (typically 6-12 minutes per batch), energy efficiency for high-viscosity materials, reduced air incorporation, and better consistency compared to open mill mixing.

What blade design is used and why?

Tangential ‘Z’ blades are standard, ideal for high-viscosity rubber compounds. They rotate at different speeds and meet tangentially for superior shearing and uniform mixing with minimal product sticking due to the tight gap between blades and trough.

What optional features can enhance the Rubber Compound Kneader?

On-demand options include liquid spray systems for additives, vacuum systems for de-aeration, blade cooling, and more. These allow customization for specific rubber processing needs while maintaining high productivity and compound quality.
