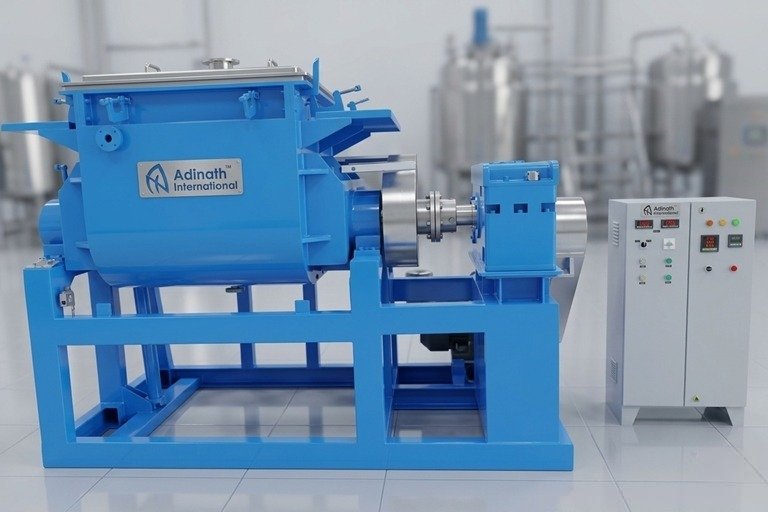

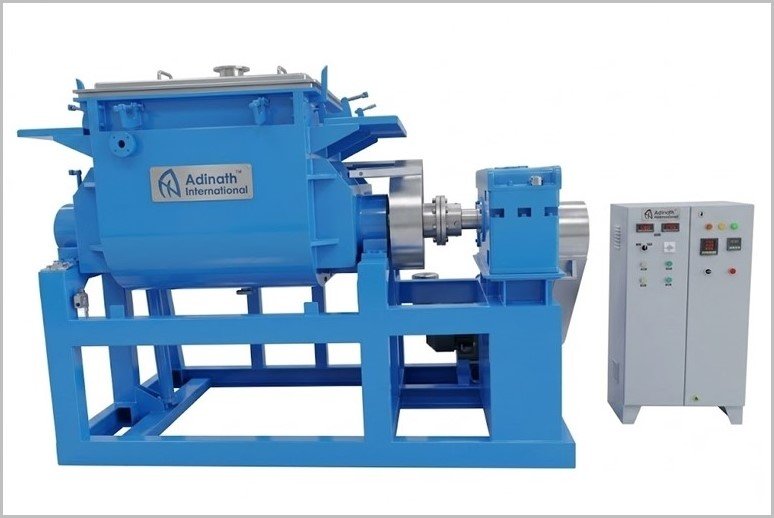

Soap Noodles Mixer

The mixer is fabricated from premium industrial metals including Mild Steel (MS), SS 304, and SS 316. Surfaces can be customized from refined matte to high-reflectivity mirror polish. Mild steel versions receive an anti-corrosive red oxide primer plus dual-layer epoxy paint protection, with PTFE shaft seals for hygienic, food-grade compatibility.

Counter-rotating differential-speed ‘Z’-profile (sigma) agitators create tangential kneading action that continuously moves material axially. This combines mass displacement, stretching, folding, splitting, and re-merging with intense shearing between the blades and trough walls, delivering streak-free uniformity while eliminating dead zones or product retention.

Tangential ‘Z’ blades (typically at a 3:2 speed ratio) suit high-viscosity, sticky materials like soap dough through intense kneading. Overlapping blades (running at the same speed) are better for lower-viscosity, free-flowing substances. Ultra-tight clearance between blades and the trough wall prevents buildup.

Models range from ASM-50 (approx. 50 L working / 80 L gross, 5–7.5 HP) to ASM-3000 (approx. 3000 L working / 3800 L gross, 100–120 HP), with intermediate sizes and general or heavy-duty motor variants. Power voltage can be customized to local requirements.

Discharge options include manual hand-wheel tilting, automated hydraulic tilting, bottom-mounted outlet valves, or a lateral extrusion screw positioned beside the mixing basin, allowing flexible handling of different viscosities and production setups.

Yes. Adaptable jackets support external heating or cooling. The trough is insulated with high-density mineral wool and protected by external cladding. Optional blade cooling and automated thermal cycling (heating cutoff followed by cooling) are available for temperature-sensitive formulations.

Optional systems include vacuum integration for de-aeration, controlled liquid/fluid spray mechanisms, blade cooling arrangements, screw/extrusion discharge, and automatic valve systems. Specialized modular configurations can be supplied on request.

It delivers superior homogeneity that basic mixers cannot match, shortens mixing time (often 10–30 minutes per batch), lowers labor costs, boosts daily output, supports translucent/opaque/medicated soaps, ensures batch-to-batch consistency, and uses stainless steel contact parts for hygiene and durability.

While optimized for toilet and laundry soap lines, it is widely used in pharmaceutical, nutraceutical, herbal, Ayurvedic, biotech, cosmetic, and chemical industries for high-viscosity mixing and kneading of dense, sticky, or dough-like materials requiring consistent uniformity.
