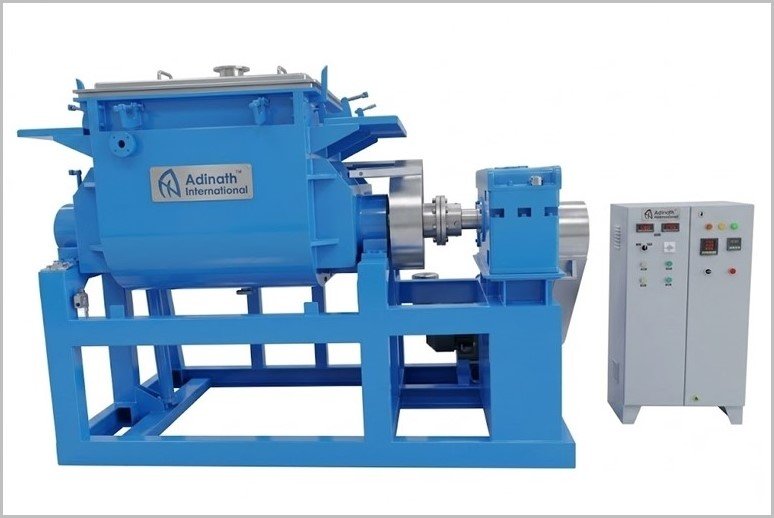

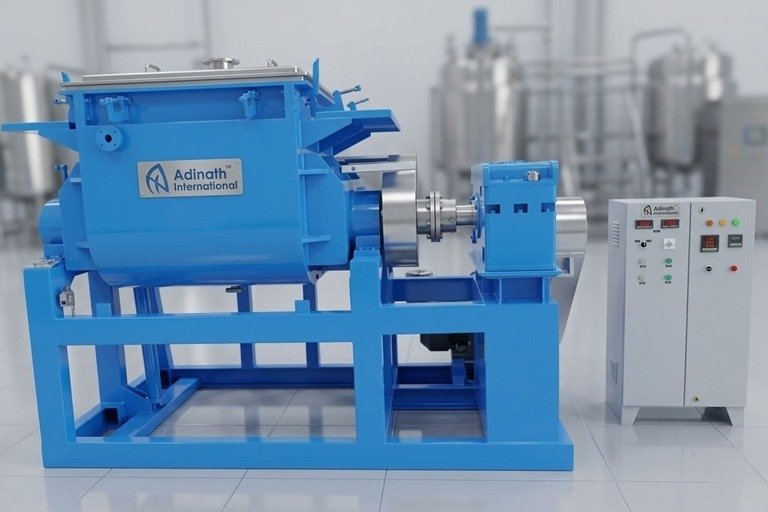

Stiff Pastes and Adhesives Mixer

Description

A Stiff Pastes and Adhesives Mixer, also known as Z-blade mixers, double-arm kneaders, or sigma blade mixers, is the primary industrial equipment designed specifically for mixing stiff pastes and adhesives. These heavy-duty machines are engineered to handle extremely viscous, sticky, and cohesive materials that standard mixers cannot process effectively.

The mixer features a robust trough with two counter-rotating sigma-shaped (Z-shaped) blades. These blades operate at different speeds in opposite directions, providing powerful kneading, folding, shearing, and stretching actions. This intensive mixing motion ensures thorough and homogeneous blending while minimizing excessive air incorporation — a critical requirement when producing high-quality adhesives and sealants.

These sigma blade mixers can efficiently process materials with viscosities reaching millions of centipoise, making them ideal for the most challenging formulations.

Salient Features of Stiff Pastes and Adhesives Mixer

Engineered using heavy-duty carbon steel (mild steel) or premium austenitic stainless steel variants, including SS 304 and SS 316.
Stainless components can be custom-finished to either a soft brushed satin matte look or a high-gloss reflective mirror sheen based on client preferences.
Carbon steel structures are treated with a foundational coat of anti-corrosive red oxide primer, followed by a dual-layer epoxy topcoat.
Batch extraction can be configured flexibly with either a manual hand-crank wheel mechanism or an automated, motorized hydraulic system.
Optional heating or cooling jackets can be seamlessly integrated to regulate exact internal batch temperatures.

Wrapped in high-density mineral wool insulation and securely enclosed within an outer protective metal cladding sheet.
Designed with precision tangential 'Z'-shaped blades to ensure complete, consistent, and uniform blending across the mixture.
Equipped with food-safe PTFE shaft packings to maintain rigorous hygiene compliance and prevent any cross-contamination.
Built with an ultra-narrow gap between the inner mixing trough wall and the rotating blades to completely eliminate residue buildup or dead zones.
Vacuum-sealed chamber packages and liquid atomizing spray assemblies are available upon request.

Working Principle of Stiff Pastes and Adhesives Mixer

Core Operating Principle: The machine utilizes a synchronized dual-paddle system featuring counter-rotating, high-precision ‘Z’-geometry elements that generate a continuous wiping and cross-transfer effect from one end of the vessel to the other.

Key Operational Systems

Multi-Port Discharge Architecture: Unloading the finalized batch is flexible and efficient, achievable through vessel tipping, opening bottom discharge valves, or forcing the mass out via a parallel lateral extrusion auger.

Complex Rheological Blending: The mixing sequence leverages macro-displacement, stretching, folding, splitting, and re-folding. Simultaneously, high-intensity shear and tearing forces developed between the blades and interior walls break down solid particle clusters.

Automated Thermal Cycling: Following the completion of the mandatory batch sterilization timeframe, the heating circuit automatically cuts out, the pneumatic exhaust vent opens, and the cooling phase kicks off.

Agitator Design Profiles

Tangential Configuration (High-Viscosity Processing):
- The agitators spin within the trough while meeting tangentially, with the front paddle typically driven at a 3:2 velocity ratio over the rear.
- Ideal for heavy, dense substances such as industrial adhesives, rubber polymers, pigment pastes, and dyes.

Overlapping Configuration (Low-Viscosity Processing):
- The paddles intersect directly over the center saddle ridge, requiring absolute phase lock and identical rotational speeds.
- Yields rapid material cross-flow and lower shear levels, making it optimal for free-flowing or creeping formulas like cosmetic creams, pharmaceutical ointments, clay coatings, and carbon pastes.

Technical Specification of Stiff Pastes and Adhesives Mixer

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Optional Features/Accessories of Stiff Pastes and Adhesives Mixer

Liquid Spray System

Vacuum System

Screw System

Blades Cooling Arrangement

Automatic Valve Discharge System

Key Features of Stiff Pastes and Adhesives Mixer

This is a heavy-duty double-arm kneader featuring two counter-rotating sigma-shaped (Z-shaped) blades in a trough-shaped vessel. The blades overlap or tangentally rotate at differential speeds, providing intense kneading, folding, and shearing action with close clearances to the vessel walls (typically 2-3 mm). This ensures thorough homogenization without dead zones, making it ideal for pasty, gritty, or ultra-high viscosity slurries.

- Common applications: Adhesives, butyl rubber, polyester compounds, fiberglass resin doughs, mastics, silicone rubber, hot-melt adhesives, and stiff pastes in chemicals, pharmaceuticals, and food industries.
- Advantages: Handles viscosities up to 10 million cP, excellent for batch processing, and can include options like extrusion, vacuum, or jacketing for heating/cooling.

These mixers are batch-type machines available in lab-scale to large production sizes (e.g., 5-1000+ liters), often constructed from stainless steel for sanitary or corrosive applications. For two-component adhesives, disposable static mixers (nozzles) are sometimes used for inline dispensing, but they are better for lower-volume or fluid systems rather than bulk stiff pastes.

FAQ for Stiff Pastes and Adhesives Mixer

What is a Stiff Pastes and Adhesives Mixer and what is it used for?

It is a heavy-duty industrial mixer (also known as a Z-blade mixer, double-arm kneader, or sigma blade mixer) specifically designed for extremely viscous, sticky, and cohesive materials such as stiff pastes and adhesives. It efficiently processes formulations that standard mixers cannot handle.

How do the sigma-shaped blades ensure thorough mixing of stiff pastes and adhesives?

Two counter-rotating sigma-shaped (Z-shaped) blades operate at different speeds (typically in a 3:2 ratio) inside a trough. This creates intensive kneading, folding, shearing, and stretching actions that deliver homogeneous blending while minimizing air incorporation—critical for high-quality adhesives and sealants.

What viscosity levels can this mixer handle?

The mixer is engineered to process materials with viscosities reaching millions of centipoise, making it suitable for the most challenging stiff pastes, adhesives, and similar high-viscosity formulations.

What construction materials and finishes are available?

The mixer is offered in Stainless Steel 316, Stainless Steel 304, and Mild Steel. Stainless steel versions can be polished to a matt or mirror finish as required, while Mild Steel models receive one coat of red oxide followed by two coats of epoxy paint.

What discharge options are provided for thick, sticky products?

Discharge can be manual (hand-wheel operated) or hydraulic (automatic). Additional options include bottom valves, tilting the container, or an extrusion screw system for efficient removal of ultra-viscous materials with minimal residue.

How is temperature controlled during the mixing process?

A jacket for heating or cooling can be fitted, complete with mineral wool insulation and cladding. Optional blade cooling arrangements further help manage temperature-sensitive formulations of pastes and adhesives.

What is the difference between tangential and overlapping blade designs?

In the tangential design (preferred for high-viscosity materials like adhesives), the blades meet tangentially with the front blade rotating faster, delivering strong kneading and shearing. Overlapping blades rotate at the same speed and are better suited to lighter viscosities, offering faster material interchange with lower shear.

What capacity and motor power options are available?

Models range from ASM-50 (approx. 50 L working / 80 L gross capacity, 5 HP general or 7.5 HP heavy duty) up to ASM-3000 (approx. 3000 L working / 3800 L gross capacity, 100 HP general or 120 HP heavy duty). Power voltage can be adjusted to local requirements.

Which industries commonly use the Stiff Pastes and Adhesives Mixer?

It is used in the pharmaceutical, nutraceutical, herbal, Ayurvedic, biotech, cosmetic, and chemical industries for high-viscosity pastes, adhesives, sealants, dyes, pigments, and similar products.

What optional features and accessories can be added?

Available options include a liquid spray system, vacuum system (for degassing or air removal), screw system for continuous discharge, blades cooling arrangement, and automatic valve discharge system. These enhance process control, hygiene, and handling of extremely thick materials.
