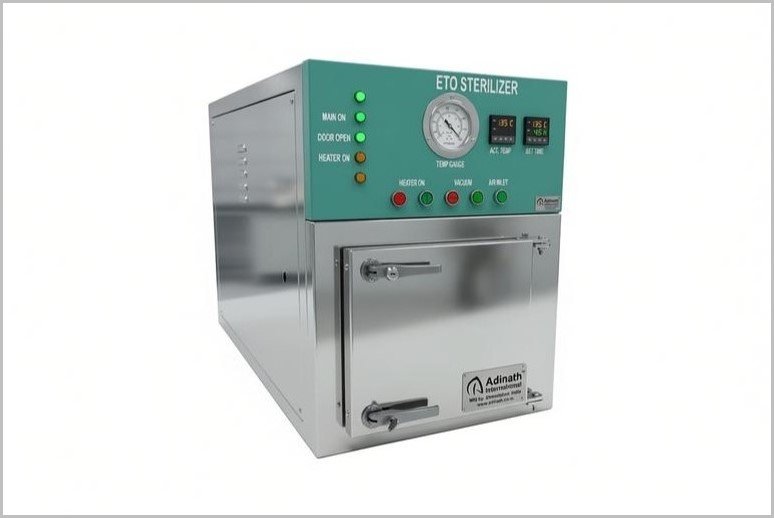

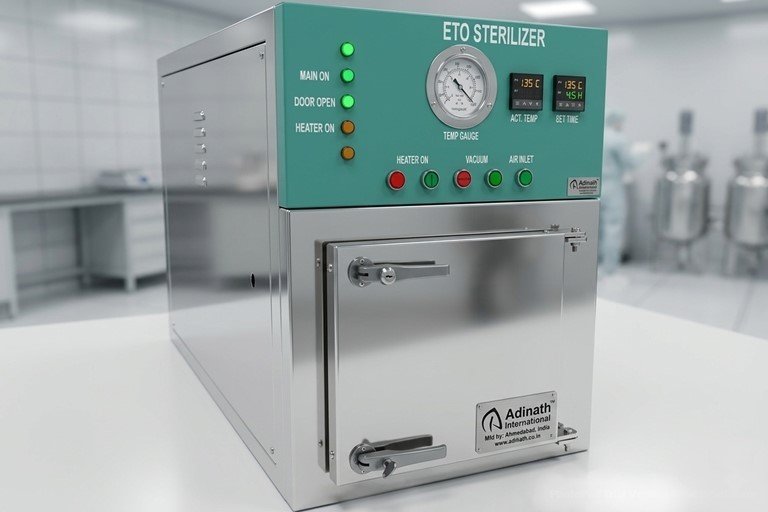

2 Cubic Feet EO Gas Sterilizer

A 2 Cubic Feet EO Gas Sterilizer is a compact, low-temperature sterilization device designed for heat- and moisture-sensitive medical equipment, supplies, and devices. It uses ethylene oxide gas—a colorless, flammable gas that penetrates packaging and kills microorganisms by alkylating their DNA—mixed with an inert gas like CO₂ or nitrogen to reduce explosion risks. This size is ideal for small-scale operations, such as clinics, laboratories, dental offices, or veterinary facilities, where space and load volume are limited.

EO Gas Sterilizer are FDA-cleared for terminal sterilization, achieving a sterility assurance level (SAL) of 10⁻⁶. Cycle times typically range from 3–5 hours, including preconditioning, gas exposure, and aeration to remove residual EO.

EO Gas Sterilizer Video

Key Features and Process

• Chamber Construction: Usually double-walled stainless steel with insulation for safety and efficiency. Includes controls for vacuum evacuation, gas injection, aeration, and exhaust.

• Typical Cycle Phases:

  1. Air Removal: Vacuum pump eliminates air to prevent flammability.

  2. Conditioning: Humidification and heating (around 30–60°C) to optimize EO penetration.

  3. EO Exposure: Gas injection (e.g., 10–20% EO mixture) for 1–2 hours dwell.

  4. Aeration/Purge: Fresh air flush to remove EO residues, often with active aeration for faster off-gassing.

• Safety Features: Explosion-proof design, leak detectors, automatic shutoffs, and compliance with standards like ATEX and ISO 11135.

• Load Capacity: Suitable for items like syringes, catheters, sutures, endoscopes, pacemakers, or small batches of plastics/bandages. Wrapped loads can have a shelf life of 3+ months.

Salient Features of ETO Sterilizer

• Machine is suitable to Sterilize Surgical Medical Device products like I.V. Sets, Disposable Syringes, Disposable Surgical Set, catheter, Urine Bag etc.

• ETO Sterilization reduce microbiological load and increase life span of material.

• Modular construction of chamber.

• Model is available from 0.5 Cubic Meters to 40 Cubic Metres.

• Easy to operate.

• Fully automatic operation based on PLC control.

• Semi Automatic (Pneumatically Operated Ball Valve) Control.

• Contact parts are SS 304 / 316.

• Process time about 8 hours.

• IQ/OQ/DQ documentation can be offered on demand. (OPTIONAL).

• It is useful for prevention of micro biological contamination useful for treatment of spices, dried nuts, Foods Packed cereals etc.

Process Operation of ETO Sterilizer

Ethylene Oxide Sterilization (Sterilisation) offers various distinct advantages over the conventional steam sterilizers (sterilisers), being a DRY & COLD (operates at 50ºC ) process proves very useful in sterilization of expensive items, also it has got a unique penetration ability, so it is very useful in sterilization (Sterilisation) of expensive and delicate items such as Cardiac catheters, Stents, IOL’s Tubings, various types of scopes, sharp surgical instruments etc., its unique mode of action, also enhances the life of several surgical accessories & disposables items thus making them perfectly reusable.

Types of EO Gas Sterilizers

We are one of the leading EO Gas Sterilizer manufacturer in India. We manufacture below two types of ETO sterilizers:

Semi Automatic Operation Mode EO Sterilizer: In this type of control mode there are analog type buttons onto control panel of the machine through which machine operation procedure will be done.

Fully Automatic Operation Mode EO Sterilizer: This is PLC HMI based fully automatic control mode equipment in which there is HMI mounted onto control panel of the machine through which operation procedure done.

Technical Specification of EO Gas Sterilizer

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
