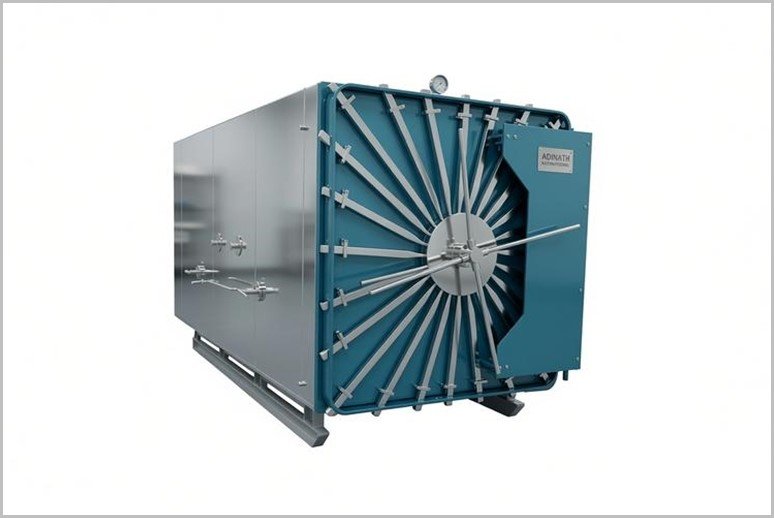

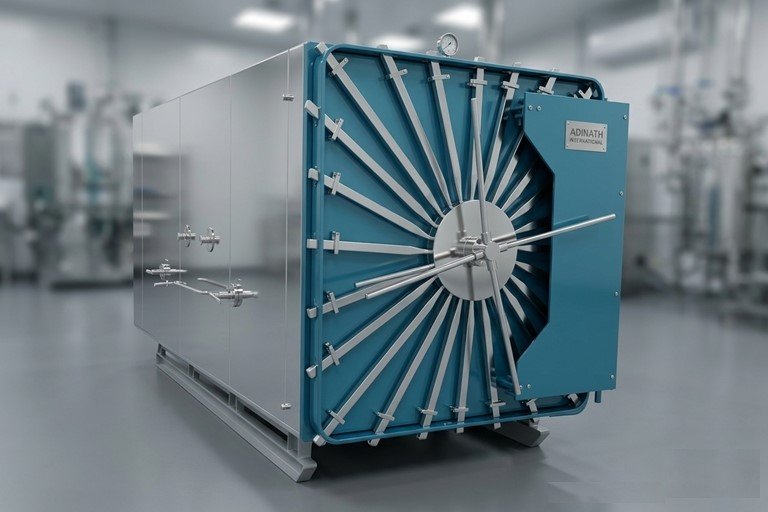

A Sliding Door ETO Sterilizer is a specialized industrial-grade sterilization chamber designed for low-temperature gas sterilization using ethylene oxide (EO or ETO) gas. Unlike traditional hinged-door autoclaves, these units feature pneumatic or motorized sliding doors (often vertical or horizontal) that open and close automatically, improving efficiency, safety, and space utilization in high-volume settings like hospitals, pharmaceutical manufacturing, and medical device production. The sliding mechanism typically uses inflatable seals for airtight closure, preventing gas leaks during the cycle, and is actuated by air or motors for hands-free operation.
ETO sterilization is ideal for heat- and moisture-sensitive items, such as plastics, electronics, spices, and complex medical devices, as it operates at around 30–60°C and achieves broad-spectrum microbial kill without damaging materials.
Sliding Door Eto Sterilizer Video
Key Features of Sliding Door ETO Sterilizers
-
Door Design: Pneumatic sliding doors with inflatable silicone or PTFE seals; options for single or double doors. Vertical rising or horizontal sliding variants reduce floor space needs compared to swing doors.
-
Capacity: Ranges from hospital-scale to industrial, with multi-chamber setups for continuous operation.
-
Automation: Computer-controlled cycles (e.g., Siemens PLC + industrial PC) with real-time monitoring, alarms, and safety interlocks.
-
Safety & Efficiency: EO gas scrubbers for emissions control (down to <1 mg/m³), energy recycling, and options like preconditioning/aeration rooms. Filtration accuracy often exceeds 99.99% for exhaust.
-
Materials: Chambers in stainless steel with corrosion-resistant components to handle ETO’s reactivity.
How It Works
-
Loading & Preconditioning: Items are loaded into the chamber; humidity and temperature are raised to optimize gas penetration.
-
Sterilization: ETO gas is injected (typically 400–700 mg/L concentration) for 2–12 hours, depending on load.
-
Aeration: Residual gas is purged with filtered air or nitrogen, often in a separate chamber, until safe levels.
-
Unloading: Sliding door unlocks only after cycle completion and pressure normalization.
The entire process is eco-friendly when paired with scrubbers, minimizing ETO emissions—a regulated carcinogen.
Applications
-
Healthcare: Sterilizing endoscopes, catheters, and implants.
-
Pharma & Biotech: Single-use plastics, biologics, and textiles.
-
Food & Spices: Herb/spice decontamination without flavor loss.
-
Other: Cosmetics, valuables, and hygiene products.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
