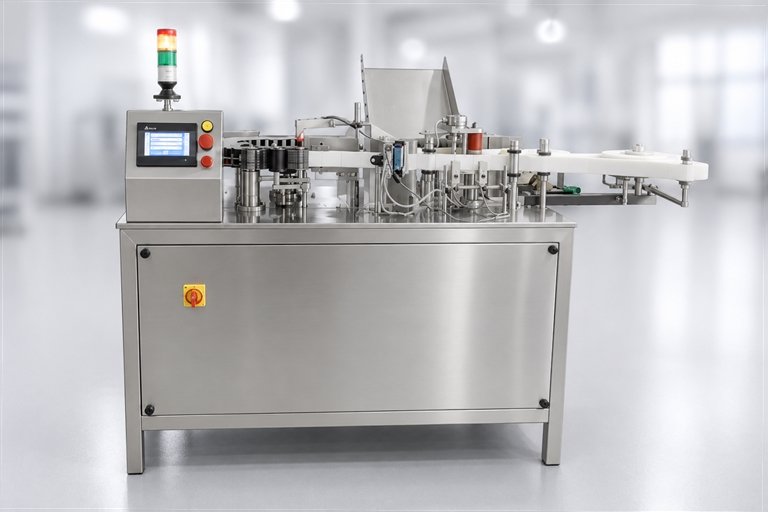

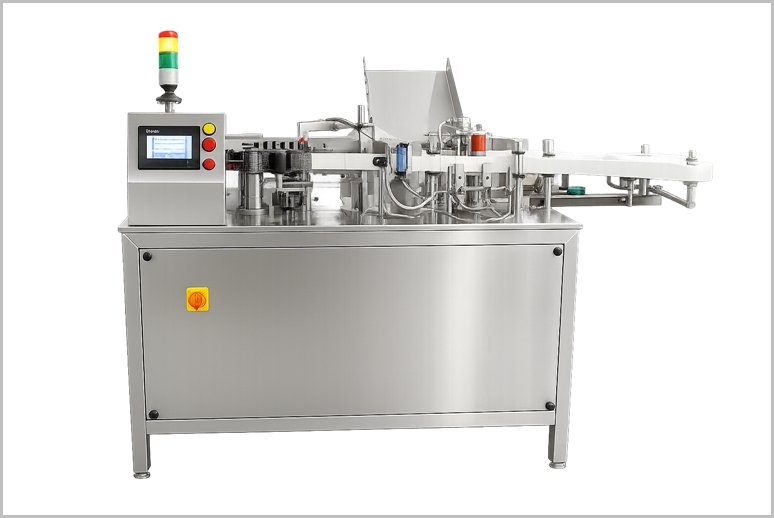

Automatic Ampoule Labeling Machine

Three models are available to suit different production scales:

• AASL-120: Up to 120 ampoules per minute (0.5 H.P.)
• AASL-300: Up to 300 ampoules per minute (1 H.P.)
• AASL-600: Up to 600 ampoules per minute (2 H.P.) This range supports both medium-volume and high-speed sterile injectable lines.

Ampoules are loaded into an infeed hopper or conveyor, transferred via a feed worm and starwheel (with matching-diameter rollers), picked up at the labeling station, and then pressed firmly with a rubber belt unit for wrinkle-free application. Labeled products are collected on an outfeed tray. Encoders ensure synchronized printing when the optional printing device is used.

Key features include the “No Ampoule – No Label” system, missing label sensors, label break/roll end alarms, imported sensors, and optional camera-based vision systems for print/barcode verification and OCR/OCV checks. Optional pneumatic rejection systems divert faulty products.

Yes. An optional inline printing device can be integrated to print batch numbers, manufacturing/expiry dates, and other variable data. Encoders detect label gaps and synchronize printing before application, ensuring regulatory compliance.

It offers flexible infeed via hopper for individual operation or wire mesh conveyor for fully automatic feeding. The compact GMP design, PLC with touchscreen HMI, variable AC frequency drive, and safety guards make it easy to integrate into complete packaging lines with fillers, cappers, or turntables.

It is widely used in the Pharmaceutical, Nutraceutical, Herbal, Ayurvedic, Biotech, Cosmetic, and Chemical industries. Its gentle handling, high accuracy, and GMP compliance make it ideal for labeling sterile injectables and other sensitive products.

• Ampoule Diameter: 10–18 mm
• Ampoule Height: 50–105 mm
• Label Length: 20–50 mm
• Label Width: 15–60 mm
• Label Roll Core: 75–76 mm Self-adhesive sticker labels are used across all models.

Automation significantly reduces human error, lowers breakage risk for fragile glass ampoules, increases throughput, improves efficiency, and ensures consistent, wrinkle-free, bubble-free labeling. It also cuts labor costs while supporting regulatory compliance and traceability.

The machine features high-quality stainless steel (304/316) construction, an inbuilt touchscreen HMI and PLC, variable speed control with AC frequency drive, speed indicator/counter, secondary pressing unit, and safety guards. Power requirements are 230V single phase (customizable), with servo motors for precision.
