Automatic Ampoule Self Adhesive Sticker Labeling Machine

Q: What ampoule and label sizes can the machine process?

It handles ampoules with: Diameter : 10mm to 18mm Height : 50mm to 105mm Label specifications include lengths of 20–50mm, widths of 15–60mm, and roll core diameters of 75–76mm. It is also suitable for other similar cylindrical containers.

Q: Which industries commonly use the Automatic Ampoule Self Adhesive Sticker Labeling Machine?

It is primarily used in the pharmaceutical industry for injectables and sterile products, but also serves: Nutraceutical Biotech Herbal/Ayurvedic Cosmetic Chemical industries handling similar containers.

Description

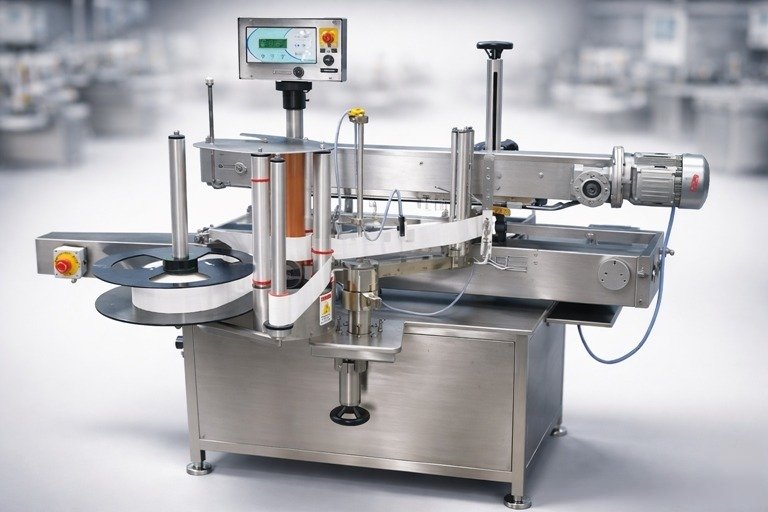

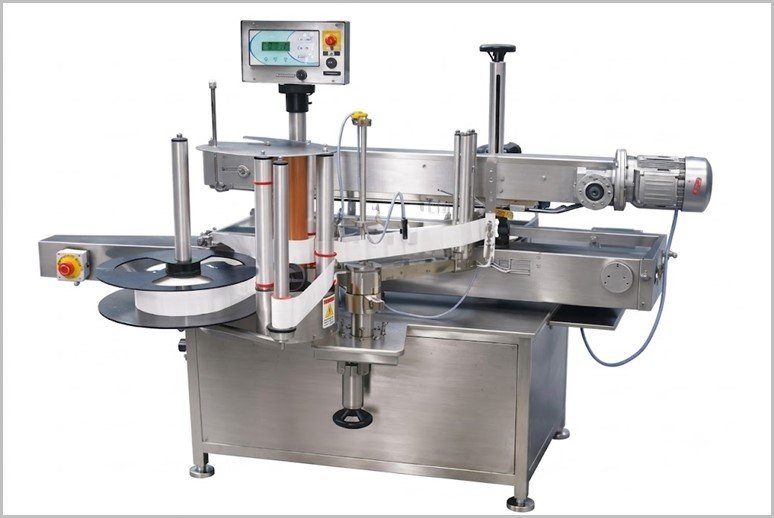

The Automatic Ampoule Self Adhesive Sticker Labeling Machine is a state-of-the-art pharmaceutical packaging equipment engineered for high-speed, accurate application of self-adhesive sticker labels on small cylindrical containers. Designed specifically for the pharma industry, this advanced system handles delicate glass ampoules, vials, eye drop bottles, and similar injectable packaging with unmatched precision and efficiency.

In today’s fast-paced pharmaceutical manufacturing environment, compliance with Good Manufacturing Practice (GMP) standards is non-negotiable. This automatic ampoule labeling machine delivers consistent, high-quality labeling while meeting stringent regulatory requirements for sterile products such as vaccines, injectables, and liquid medications. Its robust construction, typically using high-grade stainless steel (304/316), ensures easy cleaning, corrosion resistance, and long-term durability in cleanroom environments.

Technical Highlights

Model: AASL-120 / AASL-300 / AASL-600
Labeling Speed: Up to 600 ampoules per minute
Ampoule Size: Diameter 10mm – 18mm, Height 50mm – 105mm
Label Size: Length 20mm – 50mm, Width 15mm – 60mm
Power Requirement: 0.5 HP – 2 HP, Single/Three Phase
Machine Dimensions: Varies by model (Compact and space-efficient)
Optional Features: Safety enclosure, batch coding system, vision inspection system

In a nutshell, pharmaceutical manufacturers need an efficient labeling solution to maintain accuracy, speed, and compliance in high-volume production. The ampoule self adhesive sticker labeling machine meets these criteria, guaranteeing seamless operation, reducing errors, and improving efficiency. It can help boost production workflow and meet stringent industry standards with confidence. For more information, request a quote today.

Salient Features of Automatic Ampoule Self Adhesive Sticker Labeling Machine

Compact cGMP model.
Higher output up to 150 ampoules per minute.
S.S. 304 construction
Accurate label placement
“No Ampoule – No Label” syste
Servo based system.

Easy change over.
Easy for cleaning & maintenance.
Imported gear box with motor for machine
Variable A.C. Frequency drive for speed adjustment.
Imported sensor for container & label.
Inbuilt speed indicator & counter

Working Principle of Automatic Ampoule Self Adhesive Sticker Labeling Machine

The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.

The machine operates on a linear or rotary conveyor system:

Infeed: Ampoules are loaded via a hopper and fed into a worm screw or roller spacing device for precise orientation and spacing.
Label Dispensing: At the labeling station, a stepper motor or servo drive releases self-adhesive labels from a roll. Sensors detect the product and label gap, triggering precise application.
Application: Ampoules rotate via starwheel or rollers to wrap the label around the body. A rubber pressing belt or unit ensures flat, bubble-free adhesion.
Outfeed: Labeled ampoules are collected on a tray or conveyor for further packaging. Optional printing occurs during the stationary label phase.

Horizontal models are common for ampoules that can’t stand upright, using inclined conveyors to maintain stability.

Technical Specification of Automatic Ampoule Self Adhesive Sticker Labeling Machine

Model	AASL-120	AASL-300	AASL-600
Production Rate	Up to 120 Ampoules/Minute	Up to 300 Ampoules/Minute	Up to 600 Ampoules/Minute
Type of Labels	Self-adhesive sticker labels	Self-adhesive sticker labels	Self-adhesive sticker labels
Ampoule Diameter	10mm to 18mm	10mm to 18mm	10mm to 18mm
Ampoule Height	50mm to 105mm	50mm to 105mm	50mm to 105mm
Label Length	20mm to 50mm	20mm to 50mm	20mm to 50mm
Label Width	15mm to 60mm	15mm to 60mm	15mm to 60mm
Label Roll Core Diameter	75 to 76mm	75 to 76mm	75 to 76mm
Power Specification	0.5 H.P.	1 H.P.	2 H.P.
Electrical Characteristics	230 Volts, Single Phase 400/750W Servo Motor with encoder	230 Volts, Single Phase 400/750W Servo Motor with encoder	230 Volts, Single Phase 400/750W Servo Motor with encoder
Overall Dimension	1150mm (L) x 1100mm (W) x 1100mm (H) approx.	1250mm (L) x 1100mm (W) x 1100mm (H) approx.	1600mm (L) x 1400mm (W) x 1100mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sticker Labeling Machine

Automatic Vial & Bottle Sticker Labeling Machine

Test Tube Sticker Labeling Machine

Single Side Labeling Machine

Automatic Double Side Flat Bottle Sticker Labeling Machine

Automatic Carton or Pouch Labeler

Automatic Horizontal Sticker Labeling Machine

High Speed Sticker Labeling Machine

High Speed Vertical Ampoule Sticker Labeling Machine

Applications of Sticker Labeling Machine

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Advantages of Automatic Ampoule Self Adhesive Sticker Labeling Machine

High Speed and Exceptional Productivity

Superior Precision and Label Accuracy

Significant Labor and Cost Savings

Gentle Handling and Reduced Breakage

GMP Compliance and Enhanced Quality Control

Key Features of Automatic Ampoule Self Adhesive Sticker Labeling Machine

User-Friendly Design: Equipped with a single-point synchronized speed control system and automated label length detection, eliminating the need for manual data input or retrieval when changing label sizes. This reduces downtime and boosts efficiency.

No-Change Parts System: Roller spacing devices allow quick adjustments without replacing parts, suitable for various container diameters.

Advanced Sensing: Fiber optic sensors for labels and products, plus optional encoders for gap detection between labels. Voltage fluctuation protection ensures reliable operation.

Material Compatibility: Handles glass, plastic, PET, HDPE, PP, and other surfaces.

Optional Integrations: Batch printing for dates/manufacturing info, camera-based vision systems for OCR/OCV inspection, barcode verification, and pneumatic rejection for defective labels.

Safety and Maintenance: Fully stainless steel construction (SS 304/316) for corrosion resistance, with minimal maintenance requirements.

FAQ for Automatic Ampoule Self Adhesive Sticker Labeling Machine

What is an Automatic Ampoule Self Adhesive Sticker Labeling Machine?

The Automatic Ampoule Self Adhesive Sticker Labeling Machine is a high-precision, GMP-compliant pharmaceutical packaging system designed for fast and accurate application of self-adhesive labels on small cylindrical containers like glass ampoules, vials, eye drop bottles, and injectables. It ensures consistent labeling with critical details such as batch numbers, expiry dates, and barcodes while maintaining sterility and regulatory standards.

What models are available and what are their production capacities?

The machine is offered in three models to match various production needs:

AASL-120: Up to 120 ampoules per minute
AASL-300: Up to 300 ampoules per minute
AASL-600: Up to 600 ampoules per minute

These options support both medium and high-volume pharmaceutical manufacturing.

What ampoule and label sizes can the machine process?

It handles ampoules with:

Diameter: 10mm to 18mm
Height: 50mm to 105mm

Label specifications include lengths of 20–50mm, widths of 15–60mm, and roll core diameters of 75–76mm. It is also suitable for other similar cylindrical containers.

How does the Automatic Ampoule Self Adhesive Sticker Labeling Machine work?

Ampoules are loaded via hopper and transferred by a feed worm to a starwheel for precise spacing. At the labeling station, sensors trigger the dispensing of self-adhesive labels. A servo-driven system and rubber pressing belt ensure smooth, wrinkle-free application. Labeled products are collected on an outfeed tray. Optional batch printing can occur during the process.

What are the key features of this self-adhesive labeling machine?

Compact cGMP model with SS 304/316 construction
“No Ampoule – No Label” system
Servo-based operation with variable AC frequency drive
Inbuilt PLC, HMI touchscreen, speed indicator, and counter
Imported sensors and gear motors
Secondary pressing unit for secure adhesion
Easy changeover and low maintenance design

Is this machine suitable for high-speed pharmaceutical production?

Yes. With models reaching up to 600 ampoules per minute and advanced servo motors, precise sensors, and synchronized systems, it excels in fast-paced injectable lines while ensuring accuracy and full regulatory compliance.

Which industries commonly use the Automatic Ampoule Self Adhesive Sticker Labeling Machine?

It is primarily used in the pharmaceutical industry for injectables and sterile products, but also serves:

Nutraceutical
Biotech
Herbal/Ayurvedic
Cosmetic
Chemical industries handling similar containers.

What safety and compliance features does the machine include?

The machine meets cGMP and CE standards with high-quality stainless steel construction for hygiene and durability. It features safety guards, “No Ampoule – No Label” functionality, error alarms, and optional vision systems for barcode and print verification.

Can the machine be customized or integrated with other packaging equipment?

Absolutely. Options include different feeding systems (hopper/conveyor), voltage adjustments, batch printing (inkjet/laser), vision inspection, and servo enhancements. It integrates seamlessly with filling, capping, and inspection lines using turntables for complete automated workflows.

What are the main advantages of using an Automatic Ampoule Self Adhesive Sticker Labeling Machine?

High-speed operation with exceptional accuracy
Reduced labor costs and minimal product breakage
Superior GMP compliance and traceability
User-friendly controls with quick changeovers
Lower maintenance and long-term reliability
