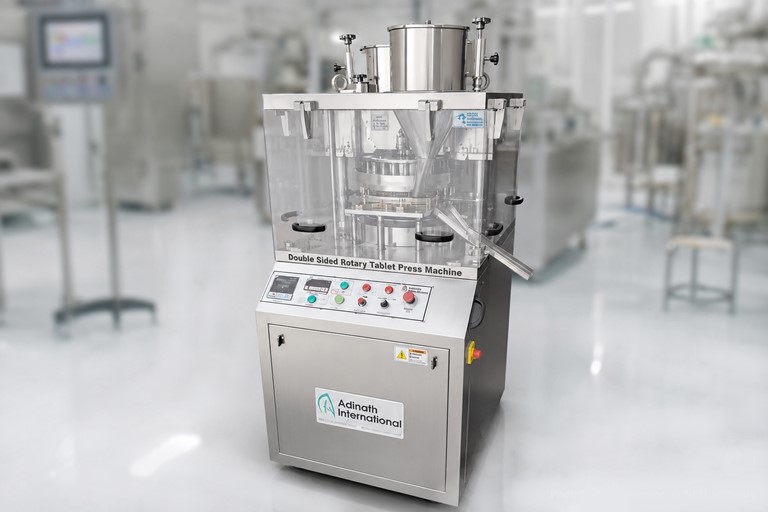

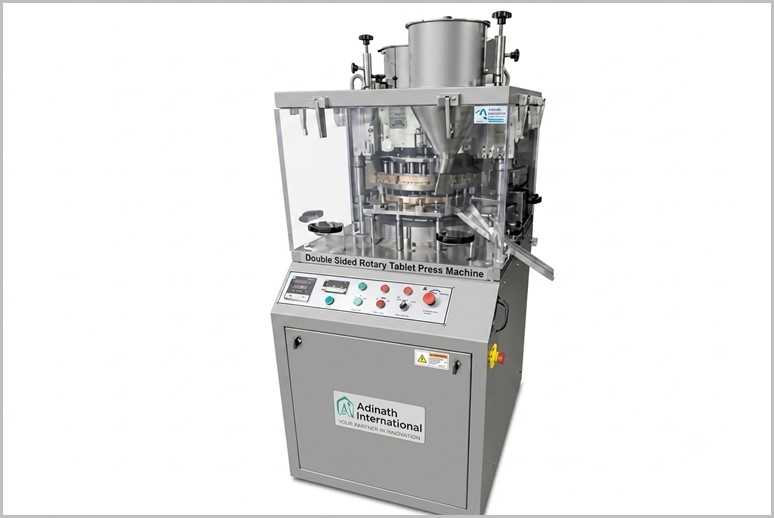

Vitamins Tablet Making Machine

Q: What are the production capacities and available models?

The machine is available in models such as 16D, 20D, 24D, and 37D . Output ranges from 13,440 to 222,000 tablets per hour . Supports maximum tablet diameter up to 25 mm and depth of fill up to 20.5 mm. Different models cater to varying production scales, from medium to high-volume manufacturing.

Description

Vitamins Tablet Making Machine, commonly known as a tablet press or pill press, is a specialized piece of equipment designed to compress powdered or granular vitamin formulations (such as minerals, herbal extracts, or nutritional supplements) into uniform, solid tablets. These machines are widely used in the nutraceutical industry to produce dietary supplements like multivitamins, vitamin C tablets, or effervescent vitamin effervescent tablets that dissolve quickly in water. They ensure consistent dosage, shape, and size, which is critical for quality control, safety, and consumer trust in supplement products. Unlike manual mixing, these machines automate the compression process, reducing human error and enabling scalable production—from small lab batches to high-volume manufacturing.

If you need details on specific models and pricing, let me know!

Salient Features of Vitamins Tablet Making Machine

Compact GMP Model.
Powerful Pre-Compression and Main Compression force.
Turret is driven by centrally fitted oil emerged gear box.
Available with Two Layer Tablet Compression Facility. (optional)
Maximum Speed of Turret up to 70 RPM.
100 KN Main Compression Force.
100 KN Pre-compression Force.
Available in tooling combination of D, B & BB (different models)
Pressure loading and overloading pressure release mechanism through Hydro-Pneumatic Power Pack System.

Pressure adjustment controls from outside area.
Main motor and force feeder motor driven through VFD.
Auto lubrication arrangements hence less maintenance.
Upper Punch Penetration, Anti-Vibration Mounts.
Electronic Digital Tablet Counter cum RPM indicator.
Interlock Switches to all upper guards.
Pneumatic powder loading system. (optional)
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered. (optional)

Working Principle of Vitamins Tablet Making Machine

The core mechanism involves compression within a die cavity:

Filling: Powdered vitamin mix is fed into a die via a hopper.

Compression: An upper and lower punch apply high pressure to compact the powder into a tablet shape.

Ejection: The lower punch rises to push the formed tablet out of the die, where it falls onto a discharge chute or vibrating belt to remove excess dust.

Optional Coating: Tablets may then pass to a coating station for a protective layer to improve swallowability or shelf life.

This process relies on precise adjustments for fill depth and pressure. Modern machines include electronic controls for monitoring and automation.

Technical Specification of Vitamins Tablet Making Machine

Model	16D	20D	24D	37D
Number of Stations	16	20	24	37
Type of Tooling Punch	D	D	DB	D
Output – Tablets / hour approx.	13,440 – 40,320	16,800 – 50,400	19,320 – 57,950	222000
Max. Operating Pressure	100 KN	100 KN	65 KN	100 KN
Max. Tablet Dia	25mm	25mm	16mm	25mm
Max. Depth of fill	20.5 mm	20.5 mm	17.5 mm	20mm
Upper Punch Penetration	1.5 – 8 mm	1.5 – 8 mm	1.5 – 8 mm	3 – 6mm
Main Electric Motor	3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.	3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.	3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.	9 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.
Overall Dimension (cm) approx.	98 x 102 x 182 H	98 x 102 x 182 H	98 x 102 x 182 H	167 x 183 x 215
Net Weight (Kgs) approx.	1150	1150	1150	2500

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Tablet Press Machine

Rotary Tablet Press Machine

Lab Scale Tablet Press Machine

Single Rotary Tablet Press Machine

Double Rotary Tablet Press Machine

Heavy Duty Salt Tablet Press Machine

Heavy Duty Bolus Tablet Press Machine

High Speed Tablet Press Machine

Bi Layer Tablet Making Machine

Applications of Tablet Press Machine

Advantages of Vitamins Tablet Making Machine

High Production Speed and Consistency

Uniform Tablet Weight, Hardness, and Thickness

Suitable for Large-Scale Manufacturing

Versatility in Tablet Shapes and Formulations

Key Features of Vitamins Tablet Making Machine

Materials: Typically stainless steel for hygiene and compliance with pharmaceutical standards.

Customization: Punches and dies can be tailored for shapes (round, oval), sizes, logos, or scoring lines for easy splitting.

Safety: Overload protection, emergency stops, and enclosed designs to prevent contamination.

Challenges: Requires dry, free-flowing powders to avoid issues like capping (cracking) or sticking; pre-formulation testing is essential.

FAQ for Vitamins Tablet Making Machine

What is a Vitamins Tablet Making Machine?

A Vitamins Tablet Making Machine, also known as a rotary tablet press or pill press, is a specialized high-speed machine designed to compress powdered or granular vitamin formulations (including minerals, herbal extracts, and nutritional supplements) into uniform, solid tablets. It is widely used in the nutraceutical industry for producing multivitamins, vitamin C tablets, effervescent tablets, and other dietary supplements with consistent dosage, shape, and quality.

What are the key salient features of the Vitamins Tablet Making Machine?

Compact GMP-compliant model with stainless steel contact parts.
Powerful pre-compression and main compression force (up to 100 kN).
Turret speed up to 70 RPM with centrally fitted oil-immersed gearbox.
VFD-driven motors, auto lubrication, and hydro-pneumatic pressure control.
Optional two-layer compression, PLC/HMI, pneumatic powder loading, and IQ/OQ documentation.
Available in D, B, and BB tooling configurations.

What are the production capacities and available models?

The machine is available in models such as 16D, 20D, 24D, and 37D.

Output ranges from 13,440 to 222,000 tablets per hour.
Supports maximum tablet diameter up to 25 mm and depth of fill up to 20.5 mm.
Different models cater to varying production scales, from medium to high-volume manufacturing.

What are the main advantages of using a Vitamins Tablet Making Machine?

High production speed with excellent consistency.
Uniform tablet weight, hardness, and thickness for reliable dosage.
Suitable for large-scale nutraceutical manufacturing.
Handles various tablet shapes (round, oval, capsule-shaped).
Low maintenance with automated controls, safety interlocks, and reduced defects.
cGMP compliance ensures quality and regulatory adherence.

Can the Vitamins Tablet Making Machine be customized?

Yes. The machine supports customization options including two-layer tablet compression, PLC with Graphical User Interface (HMI), pneumatic powder loading, different tooling (D/B/BB), and voltage adjustments as per customer requirements. It can be tailored for specific vitamin formulations, tablet sizes, and production needs while maintaining full cGMP standards.
