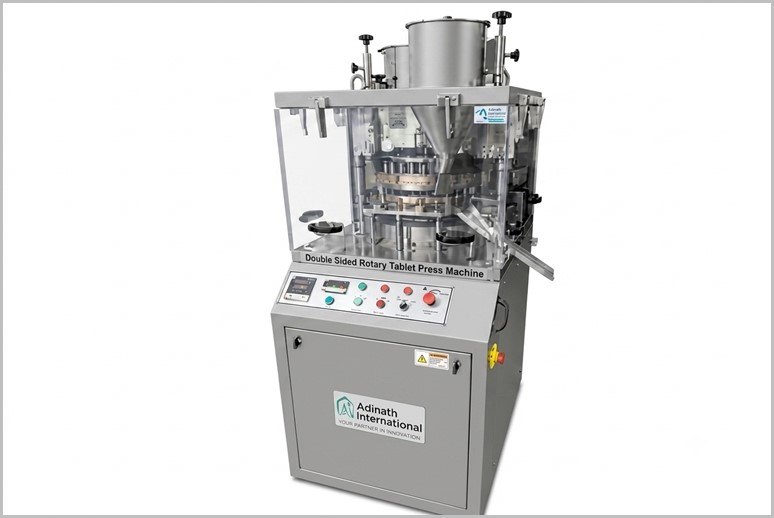

Chlorine Tablet Press Machine

Description

Chlorine Tablet Press Machine also known as a TCCA tablet press, chlorine tablet punching machine, or swimming pool bleach tablet press is a specialized industrial rotary or single-punch tablet compression machine designed to press granular or powdered chlorine-based chemicals—primarily Trichloroisocyanuric Acid (TCCA) or Sodium Dichloroisocyanuric Acid (SDIC)—into solid, compact tablets. These tablets typically weigh 100–350 grams (commonly 200g or 3-inch diameter) and are used for water disinfection in swimming pools, drinking water treatment, toilet cleaners, or industrial sanitization.

If you need details on specific models and pricing, let me know!

Salient Features of Chlorine Tablet Press Machine

Compact GMP Model.
Powerful Pre-Compression and Main Compression force.
Turret is driven by centrally fitted oil emerged gear box.
Available with Two Layer Tablet Compression Facility. (optional)
Maximum Speed of Turret up to 70 RPM.
100 KN Main Compression Force.
100 KN Pre-compression Force.
Available in tooling combination of D, B & BB (different models)
Pressure loading and overloading pressure release mechanism through Hydro-Pneumatic Power Pack System.

Pressure adjustment controls from outside area.
Main motor and force feeder motor driven through VFD.
Auto lubrication arrangements hence less maintenance.
Upper Punch Penetration, Anti-Vibration Mounts.
Electronic Digital Tablet Counter cum RPM indicator.
Interlock Switches to all upper guards.
Pneumatic powder loading system. (optional)
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered. (optional)

Working Principle of Chlorine Tablet Press Machine

Tablet compression machine basically works on hydraulic pressure. This pressure perform key role in any type of Tablet Machine. It transmitted unreduced through the static fluid. Any external applied pressure is transmitted through static fluid to all directions in the same proposition. which resulting make suitable to increase pressure. To form a tablet, the granulated powder material must be metered into a cavity formed by two punches and a die, and then the punches must be pressed together with great force to fuse the material together. There are two types of tablet presses called Single Station Tablet Press and Multi Station Tablet Press. Working of these machines differs in terms of production output and feature requirements.

Technical Specification of Chlorine Tablet Press Machine

Model	16D	20D	24D	37D
Number of Stations	16	20	24	37
Type of Tooling Punch	D	D	DB	D
Output – Tablets / hour approx.	13,440 – 40,320	16,800 – 50,400	19,320 – 57,950	222000
Max. Operating Pressure	100 KN	100 KN	65 KN	100 KN
Max. Tablet Dia	25mm	25mm	16mm	25mm
Max. Depth of fill	20.5 mm	20.5 mm	17.5 mm	20mm
Upper Punch Penetration	1.5 – 8 mm	1.5 – 8 mm	1.5 – 8 mm	3 – 6mm
Main Electric Motor	3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.	3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.	3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.	9 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz.
Overall Dimension (cm) approx.	98 x 102 x 182 H	98 x 102 x 182 H	98 x 102 x 182 H	167 x 183 x 215
Net Weight (Kgs) approx.	1150	1150	1150	2500

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Tablet Press Machine

Rotary Tablet Press Machine

Lab Scale Tablet Press Machine

Single Rotary Tablet Press Machine

Double Rotary Tablet Press Machine

Heavy Duty Salt Tablet Press Machine

Heavy Duty Bolus Tablet Press Machine

High Speed Tablet Press Machine

Bi Layer Tablet Making Machine

Applications of Tablet Press Machine

Advantages of Chlorine Tablet Press Machine

High Production Output & Scalability

Robust Construction for Corrosive Materials

Uniform Tablet Quality & Consistency

Enhanced Safety, Automation & Low Maintenance

Key Features of Chlorine Tablet Press Machine

High Pressure & Durability: Reinforced structure for 80–1000 tons force; pre-press wheels ensure tablet quality without air pockets.

Corrosion Resistance: Punches/dies in titanium alloy; contact parts in 304L stainless steel or titanium; sealed plexiglass/acrylic doors prevent powder escape and protect internals from chlorine fumes.

Safety & Automation: Overload protection (auto shut-off), frequency converters, touch-screen controls (optional Siemens), buffer devices to prevent punch damage.

Versatility: Custom dies for round, annular, or irregular shapes; some models support multi-layer/bilayer tablets.

Clean Operation: Sealed chamber, dust collection, easy-clean design (GMP-compliant).

FAQ for Chlorine Tablet Press Machine

What is a Chlorine Tablet Press Machine?

A Chlorine Tablet Press Machine, also known as TCCA Tablet Press, Chlorine Tablet Punching Machine, or Swimming Pool Bleach Tablet Press, is a specialized rotary tablet compression machine designed to compress granular or powdered chlorine-based chemicals like Trichloroisocyanuric Acid (TCCA) or Sodium Dichloroisocyanuric Acid (SDIC) into solid tablets. These tablets typically weigh 100–350 grams and are used for water disinfection in swimming pools, drinking water treatment, and industrial sanitization.

How does a Chlorine Tablet Press Machine work?

The machine works on the principle of hydraulic pressure. Powder or granules are metered into a die cavity formed by upper and lower punches. The punches apply powerful pre-compression and main compression forces to fuse the material into a solid tablet. Cam tracks guide the punches through filling, compression, and ejection stages as the multi-station turret rotates continuously for high-output production.

What are the key features of the Chlorine Tablet Press Machine?

Compact GMP model with powerful pre- and main compression forces (up to 100 KN).
Turret driven by a centrally fitted oil-immersed gearbox with speeds up to 70 RPM.
Corrosion-resistant design with titanium alloy punches/dies and stainless steel contact parts.
Features include hydro-pneumatic pressure control, auto lubrication, upper punch penetration, anti-vibration mounts, safety interlocks, and optional PLC/HMI controls.
Tooling options in D, B, and BB configurations.

What are the production capacities and technical specifications?

Available in models 16D, 20D, 24D, and 37D with outputs ranging from 13,440 to 222,000 tablets per hour. Key specs include max compression force up to 100 KN, max tablet diameter up to 25mm, and support for large tablets (100–350g). It is built for heavy-duty operation with corrosion-resistant components suitable for chlorine chemicals.

What are the main advantages and applications of a Chlorine Tablet Press Machine?

Advantages: High output & scalability, uniform tablet quality & density, excellent corrosion resistance, reduced material wastage, easy tooling changeover, low maintenance, and GMP-compliant design. Applications: Manufacturing swimming pool chlorine tablets (TCCA/SDIC), water treatment disinfectants, toilet cleaners, and industrial sanitizers.
