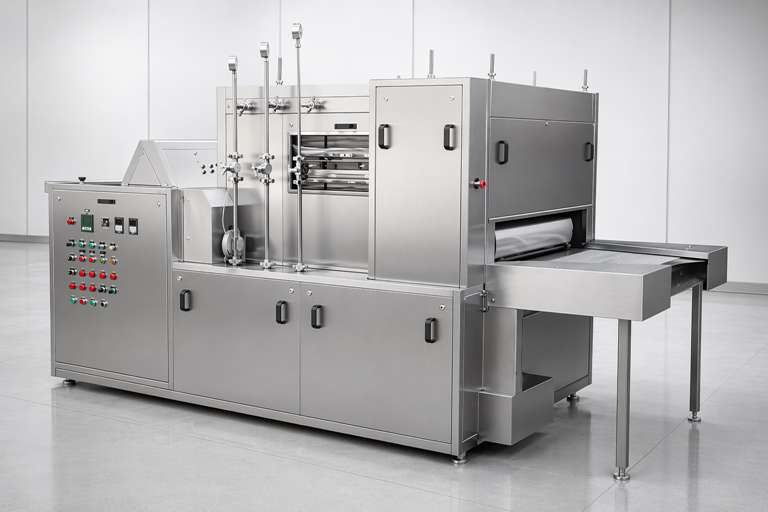

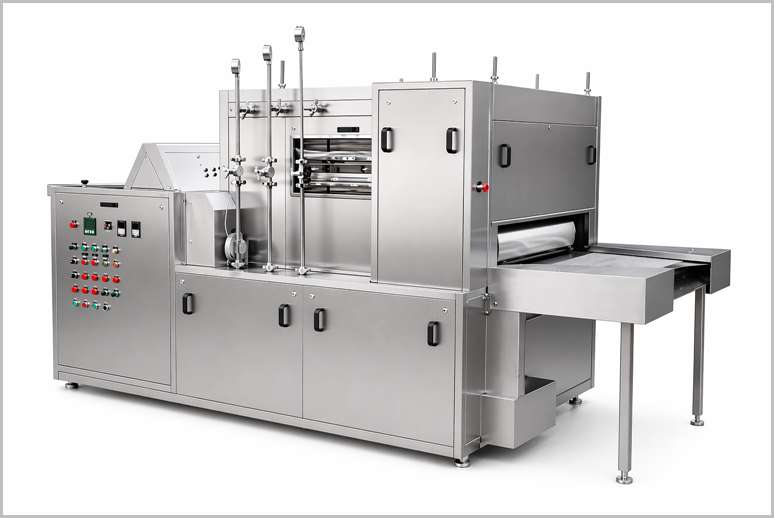

Linear Vial Washer

Q: What is the production capacity of the Linear Vial Washer?

We offer two main models: VW-120 : Up to 120 vials per minute AVW-250 : Up to 250 vials per minute These models are suitable for medium to high-volume sterile injectable manufacturing.

Q: What vial sizes can the Linear Vial Washer handle?

The machine can wash 2ml to 250ml vials. It requires no change parts from 5ml to 30ml, and uses a special pocket system for smooth handling of different vial sizes with minimum changeover time.

Q: How many washing cycles does the Linear Vial Washer perform?

It typically features 4–5 Water Washes + 2–3 Air Washes with independent circuits to prevent cross-contamination. The washing sequence is fully customizable as per customer requirements and usually includes DM Water, Purified Water, Water for Injection (WFI), and Compressed Air.

Description

Linear Vial Washer is an automated industrial machine designed for the thorough cleaning and decontamination of pharmaceutical glass vials (and sometimes plastic or oval containers) used in injectable drug production. It operates on a linear conveyor system, where vials are transported through a series of washing stations in a straight-line path, ensuring efficient, high-volume processing while adhering to cGMP (Current Good Manufacturing Practice) standards. This contrasts with rotary washers, which use a carousel mechanism. The machine is essential in pharmaceutical, biotechnology, and sterile product manufacturing to remove contaminants, particles, and pyrogens from vial interiors and exteriors before filling.

If you need details on specific models and pricing. let me know!

Salient Features of Linear Vial Washer

Compact cGMP model.
Provides production output up to 250 vials per minute.
All contact parts made from high quality stainless steel AISI SS 316L.
Machine structure & other parts made from AISI SS 304
SS Tanks & trays made from SS 316L by argon welded with round corner.
SS pump made from SS 316L with mechanical seal Monoblock pump.
SS filter housing made from SS 316L.
Machine is totally robust and withstands continues operation for long working hours without any trouble.
Special Pocket system ensures easy and trouble free washing of vials from outer and inner side.
No Change parts are required from 5 ml to 30 ml vial.

Washing cycles can be adjusted as per customer requirement.
User friendly machine, even semi-skilled operator can operate the machine very easily.
A Special clutch device is incorporated for Stoppage of Machine in the event; vial is over turned or over diameter.
Variable A.C. Frequency drive for Main drive and conveyor.
Pumps with tank (60 litres each) 2 nos.
In feed Wire Woven Belt for feeding of Vials.
HDPE material Vial pockets.
All Nozzles made from SS 316L.
Machine is equipped with PLC system & printing facility with passwords.
No Change parts are required.

Working Principle of Linear Vial Washer

Vials pushed from in feed tray and then move on wire woven conveyor belt, which align the vial in correct position, to enter in to the carrier pocket with help of oscillating guide rails. Oscillating arm deliver the vial inside pocket in mouth down position over spraying nozzles. Multijet sprayers fixed at the top cause the total external and internal surface to be washed. To avoid any possible cross contamination between two different waters, each washing station is provided with an independent circuit. Carrier pocket is moving with indexing motion. When the baskets have completed their motion the needles are lifted. They penetrate the vials, spraying jets of water or compressed air then return down. The baskets movement then advances by one station. Each station of vials passes through the washing cycles selected. The duly washed vials then delivered to the out feed tray with neck opening upward and then automatically re ordered to sterilizing tunnel with back pressure.

Technical Specification of Linear Vial Washer

Model	VW-120	AVW-250
Production Rate	Up to 120 vials per minute	Up to 250 vials per minute
Vial Size Compatibility	2ml to 250ml	2ml to 250ml
Machine Direction	Left to Right	Left to Right
Conveyor Height	Adjustable between 850mm to 900mm	Adjustable between 850mm to 900mm
Power Supply (Main Machine)	1 H.P.	1.5 H.P.
Power Supply (Pumps)	2 H.P.	2 H.P.
Power Supply (Conveyor)	0.5 H.P	0.5 H.P.
Electrical Requirements	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz
Air Requirement	20 CFM	20 CFM
Water Requirement	400 Liters per hour	600 Liters per hour

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Washing Machine

Automatic Vial Washing Machine

Rotary Vial Washing Machine

Multijet Vial Washing Machine

Linear Vial Washing Machine

Automatic External Vial Washing Machine

High Speed Vial Washing Machine

Applications of Vial Washing Machine

Advantages of Linear Vial Washer

Efficiency and Output

Safety and Durability

Customization

Space Optimization

Key Features of Liner Vial Washer

In-Feed and Transport: Vials are loaded mouth-down onto an in-feed turntable or conveyor belt, aligned by oscillating guide rails, and fed into carrier pockets or baskets. They move linearly through the machine via a wire-woven conveyor or indexing motion.

Washing Stations: Typically features 4-5 water wash zones and 2-3 air rinse zones. High-pressure spray nozzles penetrate the vial’s neck and interior, spraying jets of cleaning solutions or compressed air to ensure complete coverage without dripping contaminated water back onto the vials.

Out-Feed: Cleaned vials are positively discharged onto an out-feed conveyor, ready for subsequent filling or sterilization.

Pumping and Filtration: Includes independent pumps, tanks, filter housings, and cartridge filters for each washing circuit to prevent cross-contamination. Many models incorporate a recycled water loop to minimize WFI consumption while maintaining high cleaning efficacy.

FAQ for Linear Vial Washer

What is a Linear Vial Washer?

A Linear Vial Washer is a fully automatic, continuous-motion vial washing machine that uses a linear conveyor system to clean pharmaceutical glass and plastic vials. It transports vials in a straight line through multiple washing and rinsing stations for thorough internal and external cleaning, making it ideal for high-speed injectable production lines while ensuring full cGMP compliance.

What is the production capacity of the Linear Vial Washer?

We offer two main models:

VW-120: Up to 120 vials per minute
AVW-250: Up to 250 vials per minute

These models are suitable for medium to high-volume sterile injectable manufacturing.

What vial sizes can the Linear Vial Washer handle?

The machine can wash 2ml to 250ml vials. It requires no change parts from 5ml to 30ml, and uses a special pocket system for smooth handling of different vial sizes with minimum changeover time.

How many washing cycles does the Linear Vial Washer perform?

It typically features 4–5 Water Washes + 2–3 Air Washes with independent circuits to prevent cross-contamination. The washing sequence is fully customizable as per customer requirements and usually includes DM Water, Purified Water, Water for Injection (WFI), and Compressed Air.

What are the key advantages of the Linear Vial Washer?

High-speed continuous linear operation up to 250 vials/min
cGMP compliant with SS 316L contact parts
No vial-to-vial contact and special clutch mechanism to prevent breakage
Low water & air consumption with recycling options
PLC control with variable speed drive and password protection
Easy integration with depyrogenation tunnel and filling lines
Robust design for long continuous operation
