Multijet Vial Washer

Q: What is the production capacity of the Multijet Vial Washer?

The standard model (AAVW 340P) can achieve up to 100 vials/ampoules per minute (approximately 10,200 per hour with a 340-hole needle plate). Output depends on the needle plate used and operator efficiency. Smaller plates (e.g., 56-hole) deliver lower output of around 1,680 per hour.

Q: What sizes of vials and ampoules can the Multijet Vial Washer handle?

The machine can wash 1 ml to 20 ml ampoules and 2 ml to 100 ml vials . It offers high flexibility with interchangeable needle plates and combi trays for different container sizes.

Q: What washing cycles does the Multijet Vial Washer perform?

It performs 6 sequential washing cycles in one operation: De-Mineralized Water Purified Compressed Air De-Mineralized Water Purified Compressed Air Water for Injection (WFI) Purified Compressed Air Both internal and external surfaces are cleaned using positive pressurized jets.

Description

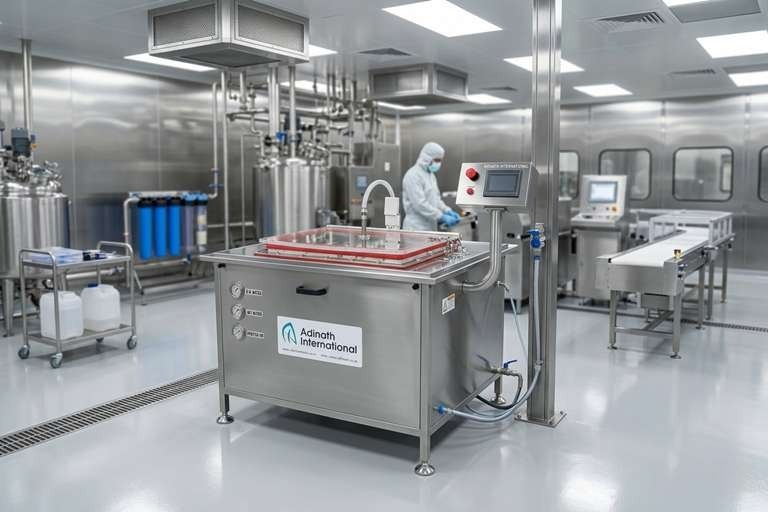

Multijet Vial Washer, also known as a Vial Jet Washer or Multijet Ampoule & Vial Washing Machine, is a semi-automatic, compact, versatile, and reliable pharmaceutical washing machine designed primarily for cleaning glass vials and ampoules used in injectable formulations. It complies with cGMP (Current Good Manufacturing Practice) standards and is widely used in small- to medium-scale injectable production facilities, R&D labs, and pilot-scale operations.

Positive and pressurized jets for efficient pressure cleaning with minimal media usage.

Low maintenance, easy-to-clean design.

Suitable for round-shaped vials; eliminates particles from previously filled/sealed vials.

Optional microprocessor-controlled timers for customized sequences.

If you need details on specific models and pricing. let me know!

Salient Features of Multijet Vial Washer

Complete cGMP model.
Solenoid valve system with timer operated mechanism controlled from HMI.
Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media. Sound design concept of pressure tank for reverse & continuous supply of wash Medias.
Acrylic top cover provided for clear view of washing during running of the machine.
On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 or 10 micron of water for best possible washing.
IQ/OQ documentation can be provided.

PLC HMI based touch screen control panel.
Suitable to wash 1ml to 20ml ampoules and 2ml to 100ml vials.
Both internal & external washing ensuring absolutely & continuous ampoule after sequential washing.
All contact parts of washing media & Compressed Air are made from Stainless Steel316 or Polycarbonate HDPE or P.P. or any other FDA approved material.
Machine automatically stop in case of acrylic top cover lifted during cycle operation and machine re-start from the point when cover is pushed down.
Easy to operate machine can be operated by even semi-skilled operator.

Working Principle of Multijet Vial Washer

Ampoules are loaded in bulk onto combi tray if received in ready to dump boxes, which will have exactly same number of Ampoules and the pitch, as loading tray. Alternatively, each Ampoule/Vial has to be arranged into the tray individually. The loading tray is placed directly into the machine & the handlebar is lowered for automatic centering of washing needles into the Ampoules neck. The top cover is lowered & switch is operated for automatic sequential washing. Washing is performed from inside and outside of each individual Ampoule. Machine automatically stops after one complete washing cycle with buzzer sound and red-light indication. For removal of tray, reverse procedure is to be observed. Depending on loading & operator’s efficiency one can achieve 30 loading trays in an hour.

Technical Specification of Multijet Vial Washer

Model	AAVW 340P
Loading & Unloading	Manually
Washing Process	Automatic through PLC
Input Specification	2ml to 100ml vials and 1ml to 20ml ampoules
Production Output	Up to 100 ampoules/vials per minute (depends upon needle plate and operator’s efficiency)
Power Supply:	0.25 H.P.
Electrical Characteristics:	220 Volts, Single Phase, 50 Hertz
Net Weight:	120 Kgs. Approx.
Gross Weight:	250 Kgs. Approx
Net Dimension:	1200 mm (L) X 1020 mm (W) X 1080 mm (H) approx.
Case Dimensions:	1350 mm (L) X 1200 mm (W) X 1280 mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Washing Machine

Automatic Vial Washing Machine

Rotary Vial Washing Machine

Multijet Vial Washing Machine

Linear Vial Washing Machine

Automatic External Vial Washing Machine

High Speed Vial Washing Machine

Applications of Vial Washing Machine

Advantages of Multijet Vial Washer

Superior Cleaning Efficiency

Both Internal & External Washing

Cost-Effective & Low Operating Cost

Flexibility for Small Batches

Low Maintenance & Reliability

Washing Cycle of Multijet Vial Washer

Internal/External Washing	Washing Media
1st Wash	De-Mineralized Water
2nd Wash	Purified Air
3rd Wash	De-Mineralized Water
4th Wash	Purified Air
5th Wash	Water for Injection
6th Wash	Purified Air

Key Features of Multijet Vial Washer

Construction and Materials: Built with stainless steel for durability and hygiene. All contact parts are made from FDA-approved materials to ensure safety and compliance.

Capacity and Compatibility: Handles glass vials from 2 ml to 100 ml and ampoules from 1 ml to 20 ml (up to 25 ml in some models). Adaptability is achieved through interchangeable change parts, such as combi trays made from cast nylon with varying hole configurations to match vial/ampoule diameters.

Washing Mechanism: Features a multi-jet system with pressurized water jets delivered through stainless steel needles for internal cleaning. It performs up to six sequential washing cycles in one operation, including pre-washing, internal washing, external rinsing, and air drying. The system uses a timer-operated solenoid valve or mechanical motorized cam for precise control, minimizing water and air usage while ensuring thorough cleaning.

Operation:
- Ampoules/vials are loaded in bulk onto a combi tray.
- The tray is placed into the machine, and a handlebar is lowered to automatically center the washing needles into the vial/ampoule necks.
- Positive pressurized jets clean the interior, while external sprays handle the outer surfaces. Some models include air jets for drying.

Production Performance of Multijet Vial Washer

Jet Needles	Production Output
56 Holes Plate	1680 per hour approx. (56 holes plate x 30 cycles)
99 Holes Plate	2970 per hour approx. (56 holes plate x 30 cycles)
189 Holes Plate	5670 per hour approx. (56 holes plate x 30 cycles)
240 Holes Plate	7200 per hour approx. (56 holes plate x 30 cycles)
340 Holes Plate	10200 per hour approx. (56 holes plate x 30 cycles)

FAQ for Multijet Vial Washer

What is a Multijet Vial Washer?

A Multijet Vial Washer is a compact, semi-automatic washing machine designed for efficient internal and external cleaning of glass vials and ampoules. It uses multiple pressurized jets through washing needles and supports up to 6 sequential washing cycles. It is widely used in small to medium-scale injectable production, R&D labs, and pilot plants due to its reliability and cGMP compliance.

What is the production capacity of the Multijet Vial Washer?

The standard model (AAVW 340P) can achieve up to 100 vials/ampoules per minute (approximately 10,200 per hour with a 340-hole needle plate). Output depends on the needle plate used and operator efficiency. Smaller plates (e.g., 56-hole) deliver lower output of around 1,680 per hour.

What sizes of vials and ampoules can the Multijet Vial Washer handle?

The machine can wash 1 ml to 20 ml ampoules and 2 ml to 100 ml vials. It offers high flexibility with interchangeable needle plates and combi trays for different container sizes.

What washing cycles does the Multijet Vial Washer perform?

It performs 6 sequential washing cycles in one operation:

De-Mineralized Water
Purified Compressed Air
De-Mineralized Water
Purified Compressed Air
Water for Injection (WFI)
Purified Compressed Air

Both internal and external surfaces are cleaned using positive pressurized jets.

What are the key advantages of the Multijet Vial Washer?

Compact design with low space requirement
cGMP compliant with SS 316 contact parts
Low water and air consumption
Safety interlock with acrylic top cover
Easy operation and low maintenance
Cost-effective for small to medium batch sizes
Suitable for R&D and pilot-scale production
