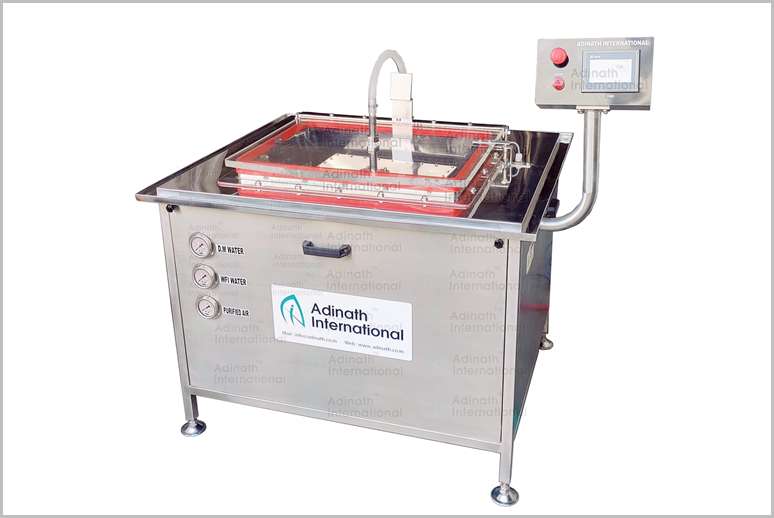

Multijet Vial Washing Machine

Q: What sizes of vials and ampoules can the Multijet Vial Washing Machine handle?

The machine can wash 1 ml to 20 ml ampoules and 2 ml to 100 ml vials using suitable change parts / needle plates. It is highly versatile and supports different tray configurations for various container sizes.

Q: What washing cycles are performed in the Multijet Vial Washing Machine?

It typically performs 6 sequential washes in one cycle: 1st & 3rd: DM Water / Purified Water 5th: Water for Injection (WFI) 2nd, 4th & 6th: Purified Compressed Air Both internal and external washing are done thoroughly using positive pressurized jets.

Description

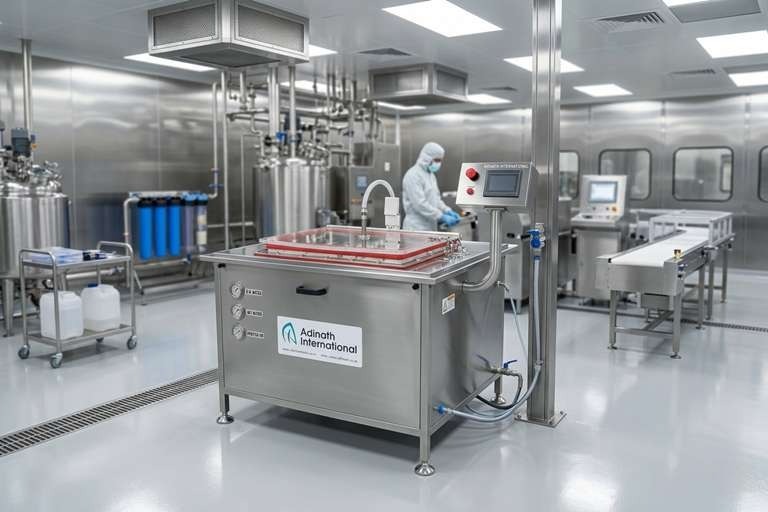

Multijet Vial Washing Machine (also known as a Multijet Ampoule & Vial Washing Machine) is a specialized piece of pharmaceutical equipment designed for the efficient cleaning of glass vials and ampoules used in injectable drug manufacturing. It is a semi-automatic, compact, versatile, and reliable washing machine that complies with current Good Manufacturing Practices (cGMP) standards, ensuring high hygiene and minimal contamination risks in medium- and small-scale injectable production facilities.

Loading: Vials or ampoules are placed in perforated trays and inserted into the chamber. The handle lowers to align washing needles precisely into each vial’s mouth.

Washing Cycle: Upon activation, the machine performs sequential washes—typically water jets for rinsing followed by air jets for drying—both internally and externally. Cycles are automated and can be observed through the transparent cover.

Unloading: After completion, the machine stops automatically. Trays are removed, and washed items are ready for further processing (e.g., sterilization).

If you need details on specific models and pricing. let me know!

Salient Features of Multijet Vial Washing Machine

Complete cGMP model.
Solenoid valve system with timer operated mechanism controlled from HMI.
Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media. Sound design concept of pressure tank for reverse & continuous supply of wash Medias.
Acrylic top cover provided for clear view of washing during running of the machine.
On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 or 10 micron of water for best possible washing.
IQ/OQ documentation can be provided.

PLC HMI based touch screen control panel.
Suitable to wash 1ml to 20ml ampoules and 2ml to 100ml vials.
Both internal & external washing ensuring absolutely & continuous ampoule after sequential washing.
All contact parts of washing media & Compressed Air are made from Stainless Steel316 or Polycarbonate HDPE or P.P. or any other FDA approved material.
Machine automatically stop in case of acrylic top cover lifted during cycle operation and machine re-start from the point when cover is pushed down.
Easy to operate machine can be operated by even semi-skilled operator.

Working Principle of Multijet Vial Washing Machine

Ampoules are loaded in bulk onto combi tray if received in ready to dump boxes, which will have exactly same number of Ampoules and the pitch, as loading tray. Alternatively, each Ampoule/Vial has to be arranged into the tray individually. The loading tray is placed directly into the machine & the handlebar is lowered for automatic centering of washing needles into the Ampoules neck. The top cover is lowered & switch is operated for automatic sequential washing. Washing is performed from inside and outside of each individual Ampoule. Machine automatically stops after one complete washing cycle with buzzer sound and red-light indication. For removal of tray, reverse procedure is to be observed. Depending on loading & operator’s efficiency one can achieve 30 loading trays in an hour.

Technical Specification of Multijet Vial Washing Machine

Model	AAVW 340P
Loading & Unloading	Manually
Washing Process	Automatic through PLC
Input Specification	2ml to 100ml vials and 1ml to 20ml ampoules
Production Output	Up to 100 ampoules/vials per minute (depends upon needle plate and operator’s efficiency)
Power Supply:	0.25 H.P.
Electrical Characteristics:	220 Volts, Single Phase, 50 Hertz
Net Weight:	120 Kgs. Approx.
Gross Weight:	250 Kgs. Approx
Net Dimension:	1200 mm (L) X 1020 mm (W) X 1080 mm (H) approx.
Case Dimensions:	1350 mm (L) X 1200 mm (W) X 1280 mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Washing Machine

Automatic Vial Washing Machine

Rotary Vial Washing Machine

Multijet Vial Washing Machine

Linear Vial Washing Machine

Automatic External Vial Washing Machine

High Speed Vial Washing Machine

Applications of Vial Washing Machine

Advantages of Multijet Vial Washing Machine

Superior Cleaning Efficiency

Versatility and Flexibility

Compact and Space-Saving Design

Compliance with Regulatory Standards

Cost-Effective and Reliable Operation

Washing Cycle of Multijet Vial Washing Machine

Internal/External Washing	Washing Media
1st Wash	De-Mineralized Water
2nd Wash	Purified Air
3rd Wash	De-Mineralized Water
4th Wash	Purified Air
5th Wash	Water for Injection
6th Wash	Purified Air

Key Features of Multijet Vial Washing Machine

Construction and Design: Built with durable stainless steel (often SS 316L for contact parts) for corrosion resistance and easy maintenance. It includes an acrylic top cover for clear visibility of the washing process and safety interlocks that halt operations if the cover is lifted mid-cycle.

Capacity and Compatibility: Handles glass vials from 2 ml to 100 ml and ampoules from 1 ml to 20-25 ml, using interchangeable change parts.

Washing Mechanism: Features a timer-operated solenoid valve or mechanical cam-operated system for up to six sequential wash cycles in one operation. It uses pressurized jets from stainless steel needles for both internal and external cleaning, minimizing water and air usage while ensuring thorough removal of particles.

Controls: Equipped with a PLC-based HMI touch screen for precise timer control and cycle management. Optional microprocessor integration allows for customized sequences.

Filtration: Includes inline polycarbonate housing with 5- or 10-micron PP filter cartridges for purified water, enhancing wash quality.

Loading Options: Supports manual loading via trays or dump loading from ready-to-dump boxes for efficiency.

Production Performance of Multijet Vial Washing Machine

Jet Needles	Production Output
56 Holes Plate	1680 per hour approx. (56 holes plate x 30 cycles)
99 Holes Plate	2970 per hour approx. (56 holes plate x 30 cycles)
189 Holes Plate	5670 per hour approx. (56 holes plate x 30 cycles)
240 Holes Plate	7200 per hour approx. (56 holes plate x 30 cycles)
340 Holes Plate	10200 per hour approx. (56 holes plate x 30 cycles)

FAQ for Multijet Vial Washing Machine

What is a Multijet Vial Washing Machine?

A Multijet Vial Washing Machine is a compact, semi-automatic pharmaceutical machine designed for efficient internal and external washing of glass vials and ampoules. It uses multiple pressurized jets/needles and supports up to 6 sequential washing cycles (water + air) in one operation. It is ideal for small to medium-scale injectable production and R&D laboratories.

What sizes of vials and ampoules can the Multijet Vial Washing Machine handle?

The machine can wash 1 ml to 20 ml ampoules and 2 ml to 100 ml vials using suitable change parts / needle plates. It is highly versatile and supports different tray configurations for various container sizes.

What is the production capacity of the Multijet Vial Washing Machine?

The output depends on the needle plate used and operator efficiency. With a 340-hole plate, it can achieve approximately 10,200 vials/ampoules per hour (around 170 per minute). Smaller plates deliver lower outputs (e.g., 56-hole plate ≈ 1,680 per hour).

What washing cycles are performed in the Multijet Vial Washing Machine?

It typically performs 6 sequential washes in one cycle:

1st & 3rd: DM Water / Purified Water
5th: Water for Injection (WFI)
2nd, 4th & 6th: Purified Compressed Air Both internal and external washing are done thoroughly using positive pressurized jets.

What are the key advantages of using a Multijet Vial Washing Machine?

Compact design and low space requirement
cGMP compliant with SS 316 contact parts
Low water & air consumption
Easy operation and maintenance
Suitable for small to medium batch sizes
Safety interlock with acrylic cover
Cost-effective compared to fully automatic tunnel washers
