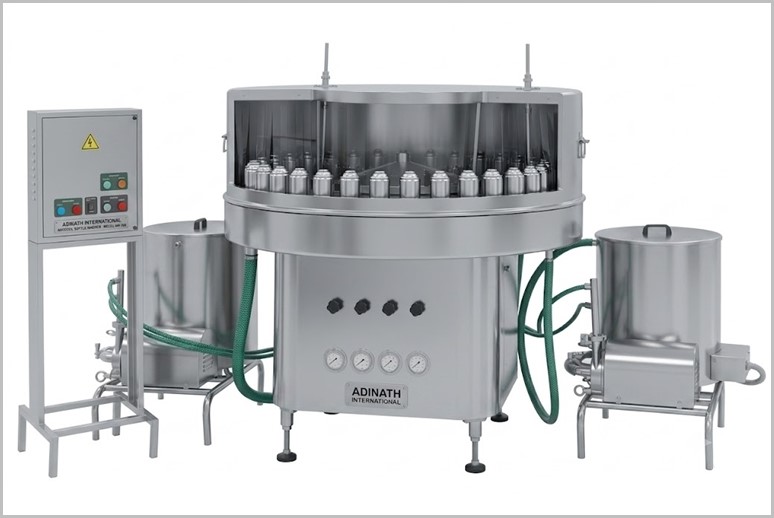

An Aerosol Bottle Washing Machine is an industrial cleaning equipment designed specifically for the pre-production preparation of empty aerosol cans or bottles (often made of aluminum or tinplate). Bottle Washing Machine are essential in manufacturing lines for products like sprays, deodorants, paints, and pharmaceuticals, where hygiene and residue removal are critical to ensure product safety and quality. Unlike general bottle washers, they focus on handling the unique shape and material of aerosol containers, which may include valves or necks that require targeted cleaning.
Aerosol Bottle Washing Machine Video
Key Features and Operation
-
Structure and Build: Typically constructed from food-grade 304 stainless steel for corrosion resistance and durability. The machine includes a conveyor system, rotating drums or baskets, high-pressure water jets, and air blowers for drying.
- Cleaning Process:
-
Loading: Empty aerosol bottles are automatically fed via a conveyor or manual loading into the machine’s rotating mechanism.
-
Washing: High-pressure sprays (often 360° coverage) rinse the interior and exterior with warm water or cleaning solutions, removing dust, oil, metal shavings, or manufacturing residues. Some models incorporate ultrasonic or brush mechanisms for stubborn contaminants.
-
Rinsing and Drying: Followed by pure water rinse and hot air drying to prevent water spots or corrosion, ensuring bottles are ready for filling without contamination.
-
-
Controls: Equipped with PLC systems for adjustable programs based on bottle size, material, and cleaning intensity. Safety features include emergency stops and sensors to detect jams.
Applications
-
Primarily used in aerosol production lines for cleaning blank cans before labeling, filling, or sealing.
-
Suitable for industries like cosmetics (hairspray bottles), household chemicals (cleaners), automotive (paint sprays), and food/beverage.
-
Integrates with other equipment like aerosol filling machines, labeling systems, or shrink wrappers.
Benefits
-
Efficiency: Automates cleaning to minimize labor and errors, with minimal downtime for maintenance.
-
Hygiene Compliance: Meets standards like GMP for pharmaceutical and food-grade packaging.
-
Customization: Available in semi-automatic or fully automatic versions; some include label removal or sterilization options.
Process Operation of Bottle Washing Machine
The bottles are loaded on the subsequent indexing part of rotating platform and are cleared in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water and sequence of various washing media to suit specific requirement.
Technical Specification of Bottle Washer Machine
|
Model No |
ARBW – 64 | ARBW – 100 |
| Production Output | Up to 60 Bottles / Minute (Depending on Bottle Size) |
Up to 100 Bottles / Minute (Depending on Bottle Size) |
|
Input Specification |
Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts) |
Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts) |
| Power Supply | Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz
Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W. |
Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W. |
|
Overall Dimension |
1550 mm (L) x 1700 mm (W) x 1300 mm (H) approx. | 1800 mm (L) x 1700 mm (W) x 1300 mm (H) approx. |
| Air Consumption | 30 CFM @ 5 bar |
30 CFM @ 5 bar |
|
Net Weight |
650 kgs. approx. |
750 kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
