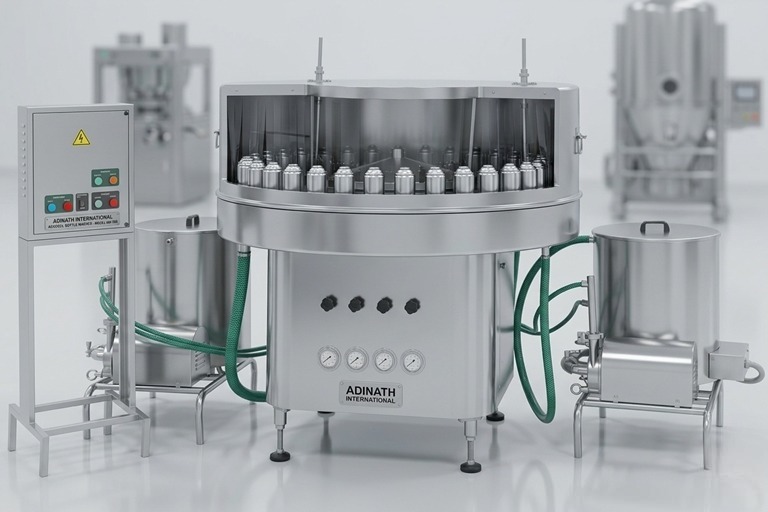

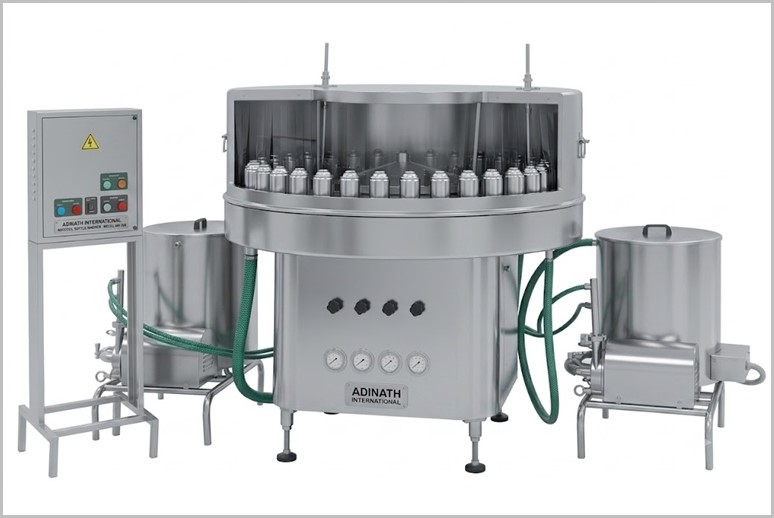

Automatic Soda Bottle Washing Machine

An Automatic Soda Bottle Washing Machine is an industrial-grade equipment designed specifically for high-volume cleaning of reusable or recyclable soda/soft drink bottles. These machines are essential in beverage production lines, recycling facilities, and bottling plants to ensure bottles are thoroughly sanitized, removing residues, dust, and contaminants without manual intervention. This reduces labor costs, minimizes health risks from improper washing, and maintains hygiene standards for refilling. Unlike manual or semi-automatic systems, fully automatic models integrate conveyor belts, jets, and controls for seamless operation, processing up to 36-48 bottles per minute depending on the model.

Automatic Soda Bottle Washing Machine Video

Key Features

• Construction: Typically made from robust stainless steel (SS 304/316) for durability, corrosion resistance, and easy cleaning. Compartmentalized design with multiple stages to prevent cross-contamination.

• Power and Controls: Operated via 220V AC or 230V single-phase power, with PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) touch screens for fault detection, speed regulation (via Variable Frequency Drive), and programmable settings. Some models include pneumatic or hydraulic systems for tray advancement.

• Maintenance: Low-maintenance with features like self-draining tanks, reusable filters (SS mesh for debris), and quick-change parts. Water recycling systems reduce consumption.

Working Principle and Process

Bottle Washing Machine operates on a multi-stage cycle to mimic a thorough hand wash but at scale:

1. Loading: Bottles are placed on trays, PVC cups, or a conveyor belt (manual or automatic feed). Trays hold 6-12 bottles and are pushed into the machine via hydraulic/pneumatic systems at timed intervals.

2. Pre-Rinse/Air Wash: High-pressure air jets (up to 8-20 nozzles) evacuate dust and particles from the interior and exterior. This dry stage prevents water waste.

3. Caustic Soda/Hot Water Wash: Bottles are inverted and exposed to soapy (caustic soda) solution or hot water jets (bottom-up for inside, top-down for outside). Brushes or rotating shafts (powered by AC/DC motors) scrub necks and interiors. This stage tackles sticky residues from soda syrups.

4. Rinse Cycles: 2-3 plain or RO (reverse osmosis) water rinses follow, with filtered water recirculated. Spray jets ensure 360° coverage, flipping bottles if needed via steel grippers.

5. Sterilization/Drying (Optional): UV lamps or steam for germ-killing (99.9% efficacy), followed by HEPA-filtered hot air drying to prevent moisture buildup.

6. Unloading: Clean bottles exit via conveyor for inspection or filling. Rinse water drains or recycles into lower tanks.

The entire cycle takes seconds per bottle, with adjustable timing for dirt levels. For example, in a 4-stage rinser, water from later stages feeds earlier ones for efficiency.

Applications

• Primarily for soda/soft drink bottling (e.g., Coca-Cola, Pepsi lines) but adaptable for liquor, milk, or water jars.

• Ideal for pharmaceuticals, food/beverage factories, and recycling centers requiring contamination-free processes.

• Portable models suit small-scale operations; rotary or linear types for large plants.

Benefits

• Efficiency: Automates tedious tasks, boosting throughput (e.g., 48 bottles/min vs. manual 8-12).

• Hygiene: Eliminates human error, ensuring FDA/pharma-grade cleanliness.

• Cost Savings: Reduces water/chemical use via recycling; low energy (2-4 HP motors).

• Versatility: Customizable for bottle types/sizes; integrates with filling/capping lines.

Salient Features of Bottle Washing Machine

• Geneva mechanism.

• Four inner, one outer and one air wash.

• Sequence of washes of washes to customer’s choice

• Stationary nozzles eliminate contamination of water cycles.

• Easy loading and unloading with two rows.

• Individual solenoid valve for each washing sequence.

• Pumps and tanks are mounted on parable stand for easy maintenance.

• Easy operation.

• Higher capacity centrifugal pumps to wash bigger bottles.

• The stationary nozzles avoid chipping of bottle necks.

• Bottle guide system especially for lightweight bottle.

• Pumps and Tanks are mounted on portable stand for easy maintenance.

• Separate panel control to avoid any short circuit due to spraying of water.

• S.S. glycerin fill pressure meter.

Process Operation of Automatic Bottle Washer

The bottles are loaded on the subsequent indexing part of rotating platform and are cleared in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water and sequence of various washing media to suit specific requirement.

Technical Specification of Bottle Washer Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
