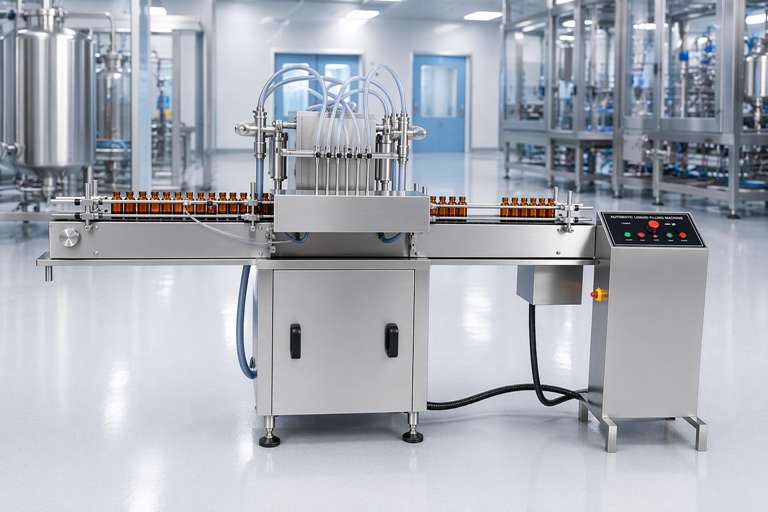

Automatic Shampoo Filling Machine

Q: What models, capacities, and filling ranges are available?

The machine is available in three main models: AI-BFM 4 : Up to 60 bottles per minute (2 H.P.) AI-BFM 8 : Up to 120 bottles per minute (3 H.P.) AI-BFM 12 : Up to 180 bottles per minute (5 H.P.) It supports bottle diameters up to 90 mm and filling volumes from 10 ml to 1000 ml (with suitable change parts/syringes). Syringe ranges include 10-50 ml, 50-100 ml, 100-250 ml, and 250-500 ml, with ±1% filling accuracy depending on the liquid.

Q: What are the key features that ensure efficiency and hygiene?

Key features include: “No Bottle – No Fill” system with pneumatic bottle stopper for precise centering. Diving nozzles for foam-free filling and reciprocating motion to minimize spillage and foaming. Machine structure in SS 304 ; all product contact parts in SS 316 with easy removal for cleaning/sterilization. Unique free-spinning bottle separator, built-in AC Variable Frequency Drive, automatic in-feed/exit, and minimum change-over time. Hygienic design suitable for shampoo and cosmetic-grade production.

Q: Which industries use this machine and what are the main benefits?

It is primarily used in the Cosmetic, Personal Care, Pharmaceutical, Chemical , and related industries. Main benefits include: Precision & reduced waste — ±1% accuracy and “No Bottle – No Fill” system. High efficiency — Automation boosts output (up to 180 BPM) while lowering labor costs. Foam control & hygiene — Diving nozzles and SS 316 contact parts handle viscous, foamy shampoos effectively. Versatility — Handles various bottle shapes, sizes, and formulations with fast changeovers. Seamless integration into complete production lines.

Description

Automatic Shampoo Filling Machine is a specialized piece of equipment designed to efficiently and accurately fill shampoo and other liquid or viscous hair care products into containers such as bottles, jars, or pouches. These machines are widely used in industries like cosmetics, personal care, pharmaceuticals, and chemicals, offering high precision, automation, and scalability to meet varying production demands. Below is a detailed description of its features, components, operation, and benefits, based on current industry standards and available information. Automatic Shampoo Filling Machines combine precision, efficiency, and hygiene to streamline the production of shampoo and similar products. With advanced features like servo-driven pistons, PLC controls, and stainless steel construction, they cater to diverse production needs while ensuring high-quality output. Manufacturers can choose from manual, semi-automatic, or fully automatic models based on their scale, budget, and product requirements.

Viscosity: Choose piston fillers for high-viscosity shampoos or overflow fillers for thinner ones.

Production Volume: Select semi-automatic for small batches or fully automatic for large-scale operations.

Cap Type: Ensure compatibility with screw-on, flip-top, or pump caps, which may require specific cappers.

Foaming: Anti-foam nozzles or overflow fillers are critical for foamy shampoos.

Budget: Manual or semi-automatic machines are more affordable, while automatic systems have higher upfront costs but greater efficiency.

If you need details on specific models and pricing, let me know!

Salient Features of Automatic Shampoo Filling Machine

“No Bottle – No Fill” system.
Automatic In-feed and Exit of Bottles.
Machine construction in SS 304 material.
Diving Nozzle for Foam free filling.
Minimum Change Over time.

Very High Fill Accuracy.
All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.
Unique Free Spinning Bottle Separator- No pneumatic operation.
Built-in A.C. Variable Frequency Drive System.

Working Principle of Automatic Shampoo Filling Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation. Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time. After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.

Container Loading: Bottles are manually or automatically loaded onto a conveyor belt, aligned, and fed to the filling station. Advanced machines use sensors to ensure proper positioning.

Pre-Filling Checks: The machine verifies container presence and calibrates filling parameters (volume, speed) via the control panel.

Filling: Shampoo is drawn from a storage tank or hopper (often with a liquid level controller) and dispensed through nozzles. Servo-driven pistons or pumps ensure precise volumes, with anti-drip and anti-foam mechanisms maintaining cleanliness.

Post-Filling: Filled bottles move to capping, labeling, or sealing stations. Some machines integrate these processes for a seamless production line.

Monitoring and Adjustment: The PLC and HMI allow operators to monitor fill levels, adjust settings, and troubleshoot issues in real time.

Filling Volume: Typically 50–1000ml, adjustable via the control panel. Larger ranges are customizable.

Speed: Varies by model (e.g., 15–100 bottles per minute, depending on the number of filling heads and bottle size). For example:
- 2 heads: 20–40 bottles/min
- 6 heads: 60–80 bottles/min
- 12 heads: 100–120 bottles/min

Accuracy: ±0.5% or higher, ensuring consistent fill levels.

Power: Typically 110V/60Hz or 220V/50Hz, with pneumatic systems requiring air pressure of 0.4–0.9 MPa.

Production Capacity: Suited for small-scale (semi-automatic) to high-volume (fully automatic) production.

Technical Specification of Automatic Shampoo Filling Machine

Model No.	AI-BFM 4	AI-BFM 8	AI-BFM 12
Bottle Diameter	Up to 90 mm*	Up to 90 mm*	Up to 90 mm*
Filling Range	10 ml to 1000 ml with help of suitable change parts / Syringe	10 ml to 1000 ml with help of suitable change parts / Syringe	10 ml to 1000 ml with help of suitable change parts / Syringe
Accuracy	+/- 1% Depending on Liquid with Single Dose	+/- 1% Depending on Liquid with Single Dose	+/- 1% Depending on Liquid with Single Dose
Electrical	440 Volts, 3 Phase Power Supply (50 Hz)	440 Volts, 3 Phase Power Supply (50 Hz)	440 Volts, 3 Phase Power Supply (50 Hz)
Power	2 H.P.	3 H.P.	5 H.P.
Production Output	Up to 60 Bottles per minute	Up to 120 Bottles per minute	Up to 180 Bottles per minute
Syringe Filling Range	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml
Conveyor Height	850 to 950 mm	850 to 950 mm	850 to 950 mm
Overall Dimensions	1500 mm (L) x 90 mm (W) x 1550 mm(H)	2000 mm (L) x 900 mm (W) x 1550 mm(H)	2800 mm (L) x 950 mm (W) x 1550 mm(H)
Net Weight	350 kgs. approx.	500 kgs. approx.	700 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Bottle Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Bottle Filling Machine

Advantages of Automatic Shampoo Filling Machine

Precision: Ensures consistent fill volumes, reducing product waste.

Efficiency: High-speed filling (up to 120 bottles/min) boosts productivity and reduces labor costs.

Versatility: Handles various viscosities, bottle shapes, and sizes, adaptable to shampoos, conditioners, gels, and other liquids.

Scalability: Suitable for small startups to large-scale manufacturers, with customizable options.

Cost-Effectiveness: Automated systems reduce labor and material waste, offering a quick return on investment for high-volume production.

Key Features of Automatic Shampoo Filling Machine

Filling Mechanism:
- Piston Filling: Commonly used for shampoos due to their high viscosity (typically 1,000–20,000 cP). Piston fillers, often servo motor-driven, measure and dispense precise volumes of shampoo into containers. They are ideal for thick, gel-like, or creamy formulations.
- Pump or Overflow Filling: For low- to medium-viscosity shampoos, pump fillers (e.g., gear or lobe pumps) or overflow fillers are used to ensure consistent fill levels, especially for thinner or foamy liquids.
- Filling Nozzles: Adjustable, anti-drip nozzles prevent spillage and foaming. Nozzles may move upward during filling (from the bottle’s base to the neck) to minimize foam, especially for frothy shampoos. Nozzles can range from 1 to 16, depending on the machine’s capacity.

Automation and Control:
- Equipped with a Programmable Logic Controller (PLC) and a touch-screen interface (often Siemens or similar) for easy operation, parameter adjustment (e.g., fill volume, speed), and real-time monitoring.
- Features like “no bottle, no fill” sensors ensure the machine only dispenses when a container is present, reducing waste.
- Servo motors provide high filling accuracy and allow quick adjustments via the Human-Machine Interface (HMI).

Construction and Materials:
- Made of stainless steel for durability, corrosion resistance, and compliance with hygiene standards. Parts in contact with shampoo are often food-grade or use materials like Teflon or POM to prevent contamination.
- Smooth surfaces and quick-disassembly designs facilitate easy cleaning and prevent cross-contamination. Some machines include a CIP (Clean-in-Place) system for automated cleaning.

Container Handling:
- Compatible with various container types (round, irregular, plastic, or glass) and sizes (50ml to 1000ml or more). Bottles are fed via a conveyor belt with adjustable guides and pneumatic stoppers to ensure precise alignment under nozzles.
- Some machines include a star wheel or bottle-clamping system to secure bottles during filling, preventing spills.

Additional Features:
- Integrated Systems: Many machines are part of a complete packaging line, including rinsing, filling, capping, labeling, and sealing stations.
- Safety Features: Emergency stop buttons, safety guards, and compliance with industry safety standards protect operators.
- Customizability: Options for 2 to 16 filling heads, adjustable filling volumes, and compatibility with different cap types (screw-on, flip-top, pump tops).
- Explosion-Proof Options: For shampoos with alcohol-based fragrances, explosion-proof models are available.

FAQ for Automatic Shampoo Filling Machine

What is an Automatic Shampoo Filling Machine and what is its purpose?

An Automatic Shampoo Filling Machine is a high-precision, hygienic volumetric filling system designed to efficiently fill shampoo and other viscous hair care products (such as conditioners, gels, and lotions) into bottles, jars, or containers. It handles foaming and viscosity challenges using piston/syringe-based filling with diving nozzles, ensuring accurate dosing, minimal waste, foam-free operation, and product integrity. It is ideal for the cosmetic, personal care, pharmaceutical, and chemical industries.

What models, capacities, and filling ranges are available?

The machine is available in three main models:

AI-BFM 4: Up to 60 bottles per minute (2 H.P.)
AI-BFM 8: Up to 120 bottles per minute (3 H.P.)
AI-BFM 12: Up to 180 bottles per minute (5 H.P.)

It supports bottle diameters up to 90 mm and filling volumes from 10 ml to 1000 ml (with suitable change parts/syringes). Syringe ranges include 10-50 ml, 50-100 ml, 100-250 ml, and 250-500 ml, with ±1% filling accuracy depending on the liquid.

What are the key features that ensure efficiency and hygiene?

Key features include:

“No Bottle – No Fill” system with pneumatic bottle stopper for precise centering.
Diving nozzles for foam-free filling and reciprocating motion to minimize spillage and foaming.
Machine structure in SS 304; all product contact parts in SS 316 with easy removal for cleaning/sterilization.
Unique free-spinning bottle separator, built-in AC Variable Frequency Drive, automatic in-feed/exit, and minimum change-over time.
Hygienic design suitable for shampoo and cosmetic-grade production.

How does the Automatic Shampoo Filling Machine work?

Bottles are loaded onto the infeed turntable and transferred to the SS conveyor belt. A pneumatic stopper centers each bottle under the filling nozzles. The diving nozzles descend into the bottle, move upward during filling to reduce foaming, and deliver the precise volume via the dosing block with a hexagonal bolt for quick adjustments. Filled bottles then proceed to capping or labeling stations.

Which industries use this machine and what are the main benefits?

It is primarily used in the Cosmetic, Personal Care, Pharmaceutical, Chemical, and related industries. Main benefits include:

Precision & reduced waste — ±1% accuracy and “No Bottle – No Fill” system.
High efficiency — Automation boosts output (up to 180 BPM) while lowering labor costs.
Foam control & hygiene — Diving nozzles and SS 316 contact parts handle viscous, foamy shampoos effectively.
Versatility — Handles various bottle shapes, sizes, and formulations with fast changeovers.
Seamless integration into complete production lines.
