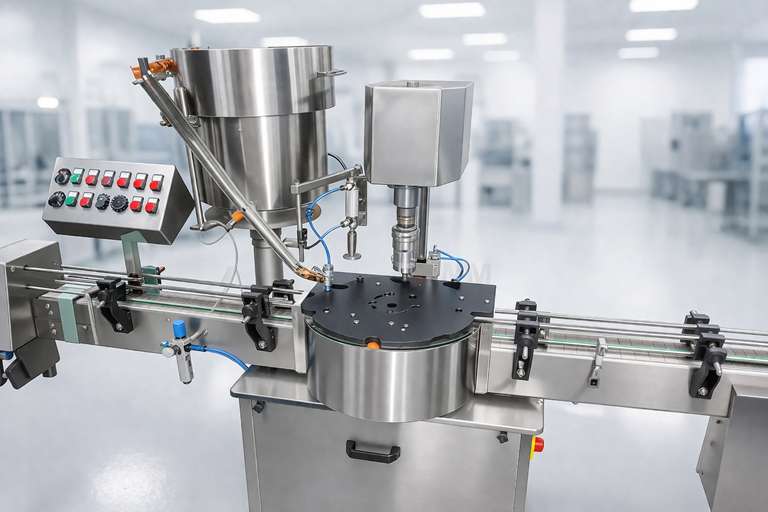

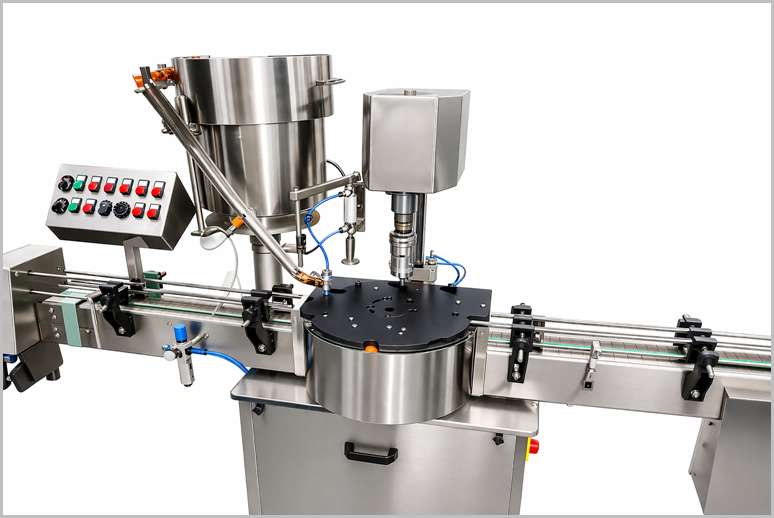

Single Head Screw Capping Machine

Q: What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats: Bottle Diameter : 24 mm to 85 mm Bottle Height : 50 mm to 250 mm Cap Diameter : 20 mm, 25 mm, and 28 mm (with suitable change parts) It can handle plastic screw caps, metal screw caps, lug caps, and child-resistant caps on both glass and plastic bottles.

Description

Single Head Screw Capping Machine is an automated or semi-automated device designed to apply and tighten screw caps or Roll-On Pilfer Proof (ROPP) caps onto containers, such as bottles, jars, or cans, with precision and efficiency. It is widely used across industries like pharmaceuticals, food and beverages, cosmetics, chemicals, and more for sealing containers made of materials like PET, PP, PVC, HDPE, LDPE, or glass. The Single Head Screw Capping Machine is a versatile, efficient, and reliable solution for applying screw caps to a wide range of containers. Its robust design, precise torque control, and automation features make it ideal for small to medium production lines across multiple industries. By integrating smart features like “No Bottle, No Cap” systems and quick changeovers, it enhances productivity while maintaining high-quality sealing standards.

Container Feeding: Bottles are transported on a conveyor belt and guided into the in-feed star wheel.

Cap Placement: The bottle picks up a cap from the delivery chute, fed by an automatic cap feeder.

Capping: The single capping head rotates and applies the cap with precise torque, sealing the container.

Output: Sealed containers are transferred to the outfeed conveyor for further processing.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Single Head Screw Capping Machine

“Container Overturn – Machine Stop” mechanism.
Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.
IQ/OQ documentation can be provided.
Various safety features including Clutch system to avoid Bottle Breakage or Jamming
PLC system with Graphical User Interface can be offered.

Machine construction in Stainless Steel Finish
Compact GMP model.
Cap Feeder with Variable Speed System for feeding control of caps. (optional)
“No Bottle – No Cap” system.
Hopper can be completely dismantling for easy cleaning
Digital counter for counting production output.
Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.

Working Principle of Single Head Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Single Head Screw Capping Machine

Model	AI-BSCM 1
Bottle Diameter	Up to 85 mm *
Bottle Height	150 mm *
Plastic Screw or CRC Cap Size	Applicable for 22mm, 25mm, 28mm or 32mm and 38mm*
Power Supply	220-240VAC 50/60Hz
Power Specification	1.0 H.P.
Conveyor Height	815-850 mm.
Overall Dimensions	1500 mm (L) x 735 mm (W) x 1800mm (H)
Processing Speed	Hundreds to thousands of bottles an hour (model dependent)
Custom Torque Settings	Used for individual product specifications.
Minimized Footprint	Integrated into existing production lines with minimized footprint.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Single Head Screw Capping Machine

High precision and repeatable torque accuracy for secure sealing without leaks.

Easy to operate and maintain, with minimal downtime during changeovers.

Durable construction ensures long-term reliability and compliance with industry standards.

Cost-effective for small to medium-scale production lines due to its compact design and automation.

Key Features of Single Head Screw Capping Machine

Design and Construction:
- Built on a sturdy welded stainless steel frame, often enclosed with stainless steel sheets and doors for easy maintenance and compliance with cGMP standards.
- Adjustable height conveyor system to align with other production line equipment.
- Contact parts are made of durable materials like SS 304, Delrin, aluminum, or silicon to ensure hygiene and longevity.
- Compact and versatile, with some models featuring a matte finish for aesthetic appeal and corrosion resistance.

Operation:
- Containers are fed via a conveyor belt into an in-feed star wheel, which positions them precisely under the single capping head.
- Caps are automatically sorted and fed from a cap feeder through a delivery chute. The bottle picks up the cap, and the rotating capping head applies it with pre-set torque.
- Features a “No Bottle, No Cap” system to prevent cap wastage and ensure efficient operation.
- The capping head uses a magnetic clutch or servo motor for adjustable torque control, ensuring consistent sealing without damaging caps or containers.

Versatility:
- Compatible with a wide range of cap types, including flat caps, flip-top caps, child-proof caps, sport caps, and ROPP caps, with diameters typically ranging from 10–130 mm.
- Handles various container shapes and sizes with minimal or no changeover parts required.
- Suitable for industries like pharmaceuticals, food, beverages, cosmetics, chemicals, and lubricants.

Performance:
- Output typically ranges from 40–60 bottles per minute, depending on bottle and cap size. Some high-speed models can achieve up to 300 containers per minute.
- Equipped with a single motor that synchronizes the conveyor, star wheel, and platform turret for smooth operation.
- Includes safety features like a clutch on the star wheel to stop the machine if a bottle jams or overturns, and a photoelectric sensor to halt operation if no caps are detected in the chute.

Additional Features:
- PLC control with human-machine interface for intuitive operation and torque adjustment via a touchscreen.
- Quick format changeovers for different bottle or cap sizes, often taking less than 2 minutes.
- Optional features include toughened glass or acrylic safety cabinets, servo-controlled capping heads, and integration with filling or labeling machines for a complete production line.

FAQ for Single Head Screw Capping Machine

What is a Single Head Screw Capping Machine?

The Single Head Screw Capping Machine is a compact, fully automatic capping machine designed to accurately place and tighten screw caps on bottles with precise torque. It is ideal for low to medium volume production and is widely used in the pharmaceutical, cosmetic, chemical, and food industries for sealing oral liquids, syrups, tonics, and other liquid products.

What is the production capacity of the Single Head Screw Capping Machine?

The Single Head Screw Capping Machine has a production capacity of up to 50 bottles per minute. It is best suited for small batch production, pilot plants, and companies with moderate production requirements.

What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats:

Bottle Diameter: 24 mm to 85 mm
Bottle Height: 50 mm to 250 mm
Cap Diameter: 20 mm, 25 mm, and 28 mm (with suitable change parts)

It can handle plastic screw caps, metal screw caps, lug caps, and child-resistant caps on both glass and plastic bottles.

What safety features does the Single Head Screw Capping Machine include?

The machine is equipped with essential safety interlocks such as:

No Bottle – No Cap system
Container Overturn – Machine Stop
Safety clutch mechanism to prevent bottle breakage
Overload protection

These features ensure safe operation and minimize product wastage.

What are the key benefits and optional features?

Key benefits include compact GMP design, easy operation, quick size changeover, low maintenance, low power consumption, and consistent torque control for leak-proof sealing. Optional features include:

PLC with HMI and touchscreen
Laminar Air Flow (LAF) unit
Full safety cabinet enclosure
IQ/OQ documentation
