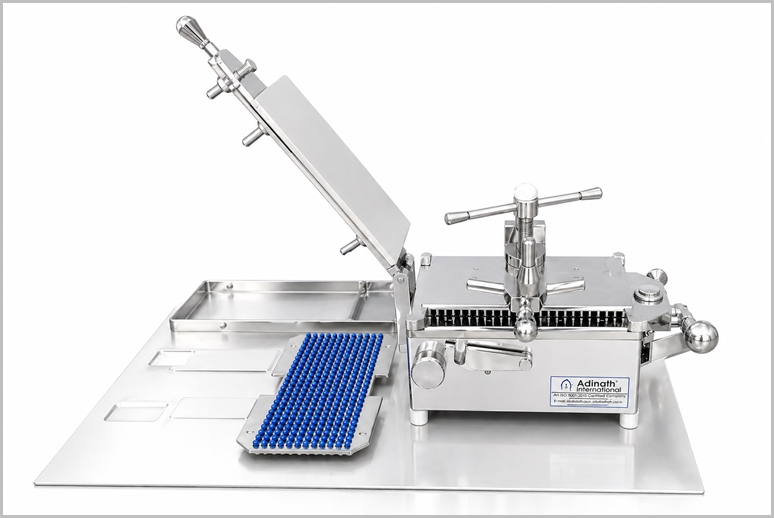

300 Holes Manual Capsule Filling Machine

Description

300 Holes Manual Capsule Filling Machine is a compact, benchtop device designed for manually filling hard gelatin, vegetarian (HPMC), or other capsules with powders, pellets, or granules. It’s particularly suited for small-scale production, research and development (R&D) labs, pilot batches, herbal/Ayurvedic preparations, nutraceutical manufacturing, and educational institutions. This machine is popular in pharmaceutical, cosmetic, food, veterinary, and biotech industries due to its affordability, ease of use, and compliance with Good Manufacturing Practices (GMP). It processes up to 300 capsules per cycle, with an overall output of 3,000 to 6,000 capsules per hour depending on operator skill and material type. Unlike fully automatic machines, this model relies on manual operations but incorporates precision-engineered components for efficiency and accuracy. It’s fully disassemblable for cleaning, making it ideal for sterile environments.

The process is straightforward and typically takes 1-2 minutes per 300-capsule cycle. Here’s a general guide based on standard models:

Load Empty Capsules: Place empty capsule halves (bodies) into the 300-hole loading tray. Use an optional capsule loader to separate and orient them quickly.

Position Tray: Secure the tray on the machine’s base.

Fill with Powder: Pour the powder (or pellets) into the tray using a spreader. Distribute evenly across the holes.

Tamp/Compress: Use the tamper tool to press the powder into the capsule bodies multiple times for uniform fill weight. The machine’s design ensures even pressure.

Remove Excess Powder: Scrape off any overflow with a powder scraper.

Cap the Capsules: Align the cap tray over the filled bodies. Lock the assembly and use the machine’s lever or knob to push the bodies into the caps, sealing them.

Eject and Collect: Release the filled capsules from the tray.

If you need details on specific models and pricing, let me know!

Salient Features of 300 Holes Manual Capsule Filling Machine

Compact Model.
Option of Stainless Steel 304 and 316 materials constructions.
Option of Manual Capsule Loader as well as Auto Capsule Loader for loading empty capsules onto loading tray.
Powder tray provided for spillage free filling of powder.
Interchangeability to different capsule size format parts.

Machine suitable for hard gelatin capsules, veg capsules and HPMC capsules.
Power with different bulk density can be filled easy through multiple press option.
Universal design hence easy to operate and easily service available.
Tablet Filling Attachment can be offered optionally to fill tablets into capsules.
IQ/OQ documentation can be provided.

Working Principle of 300 Holes Manual Capsule Filling Machine

Adinath is one of the leading manual capsule filling machine manufacturer in India. We are giving here below step by step process guide of Capsule Filling Machine:

Place empty capsules onto the loading tray and place tray onto the machine. Check the front knob it should be turned to the right.

Pull locking lever forward. Push down long handle which will lifts the caps off all the bodies. Set aside the tray containing all the caps.

Push locking lever back, by which capsule bodies will drop down and become level with filling surface.

Place powder tray on filler: keeps powder from spilling.

Pour & spread the pre-measured powder. Move extra powder onto powder tray’s shelf. Lower tamper and lock.

Turn handle to compress powder: this allows you to fill more powder in each capsule.

Raise tamper & spread extra powder from shelf into capsules: ensures uniform fill weights.

Return the tray containing caps to filler. Turn front knob to the left and lower locking plate. Engage lock for locking plate.

Hold tamper handle and push down on long handle. Bodies are pushed up into caps: all the capsules are now locked in one step.

Disengage lock for locking plate. Lift locking plate and turn front knob to the right.

Push down long handle and remove tray of completed capsules.

Capsules are filled now. You can turn tray and all the capsules will get out from the tray.

Technical Specification of 300 Holes Manual Capsule Filling Machine

Model	CFM 300
Production Output	Up to 6000 Capsules/hour
Capsule Combinations	Size 00, 0, 1, 2, 3, 4 and 5

	(through different machines & parts)
Sequence of holes	25 x 12 = 300
No. of Loading Trays	Three nos.
Overall Dimension	405mm X 300mm X 455mm approx.
Net Weight	43 Kgs. approx.
Gross Weight	50 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Advantages of 300 Holes Manual Capsule Filling Machine

Low cost and no ongoing power/ maintenance expenses.

Precise fill control to minimize waste.

GMP compliance ensures product safety and regulatory adherence.

Versatile for custom formulations in nutraceuticals, vitamins, or herbal products.

Key Features of 300 Holes Manual Capsule Filling Machine

Capacity and Layout: Features a 300-hole tray arranged in a 25 x 12 grid for simultaneous filling. Supports capsule sizes from #000 to #5.

Construction: Made primarily from stainless steel to meet GMP and cGMP standards. GMP models are fully stainless steel, while standard models may use hard chrome-plated mild steel for non-contact parts like the base.

Versatility: Handles various powder densities through multiple tamping options. Compatible with both gelatin and vegetarian capsules.

Optional Accessories: Often includes or pairs with a manual or automatic capsule loader/orienter to speed up empty capsule placement. Some models come with multiple trays for higher throughput.

Portability: Lightweight and table-top design, easy to transport and store.

Maintenance: All parts are washable and tool-free for disassembly. No electricity required, as it’s fully manual.

FAQ for 300 Holes Manual Capsule Filling Machine

What is a 300 Holes Manual Capsule Filling Machine?

The 300 Holes Manual Capsule Filling Machine (Model CFM 300) is a compact, benchtop, hand-operated machine designed to fill hard gelatin, vegetarian (HPMC), or pullulan capsules with powders, pellets, or granules. It is ideal for small-scale production, R&D labs, pilot batches, pharmacies, Ayurvedic/herbal manufacturers, and nutraceutical companies. It fills 300 capsules per cycle and requires no electricity.

What is the production capacity of the 300 Holes Manual Capsule Filling Machine?

The machine features a 300-hole tray (25 x 12 arrangement) and can produce up to 6,000 capsules per hour, depending on operator skill, powder flow, and capsule size. It comes with three loading trays as standard, allowing the operator to prepare one tray while another is in use for better productivity.

Which capsule sizes can the 300 Holes Manual Capsule Filling Machine handle?

It supports capsule sizes 00, 0, 1, 2, 3, 4, and 5 with interchangeable change parts. This versatility makes it suitable for a wide range of pharmaceutical, nutraceutical, herbal, and veterinary formulations.

What are the key features of the 300 Holes Manual Capsule Filling Machine?

Key features include:

Compact GMP-compliant design with SS 304 / SS 316 contact parts
Powder tray for spillage-free filling
Multiple tamping/compression options for different powder densities
Easy dismantling and cleaning
Optional manual or automatic capsule loader and tablet filling attachment
No power requirement for basic operation
IQ/OQ documentation available
Lightweight (approx. 43 kg net weight) and portable

How does the 300 Holes Manual Capsule Filling Machine work?

The process is simple and manual:

Load empty capsules into the 300-hole tray.
Separate caps and bodies using the locking lever.
Spread powder, tamp/compress it for uniform fill weight.
Remove excess powder and align the cap tray.
Lock the capsules in one stroke and eject the filled capsules.

Each cycle of 300 capsules typically takes 1–2 minutes.
