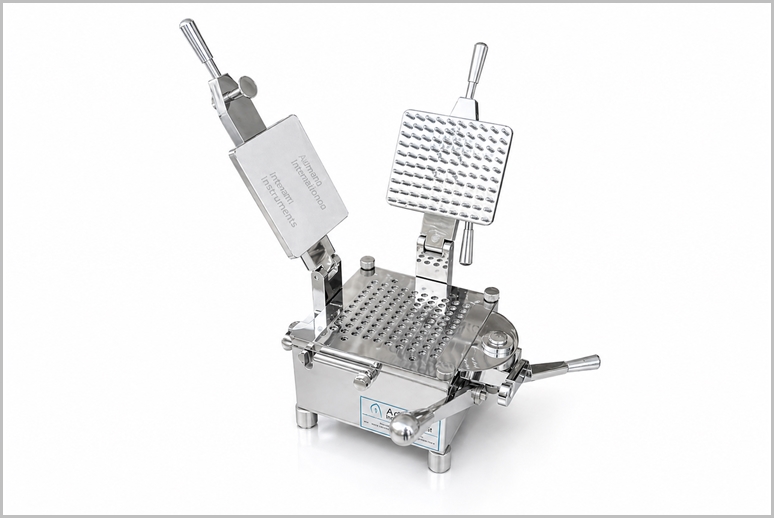

100 Holes Capsule Filling Machine

Description

100 Holes Capsule Filling Machine is a popular manual device designed for filling empty capsules with powders, pellets, or granules, such as vitamins, supplements, herbs, or pharmaceuticals. It’s a compact, benchtop tool ideal for small-scale production, research and development (R&D) labs, home use, or pilot batches. The “100 holes” refers to its capacity to hold and fill up to 100 capsules simultaneously in a 10×10 grid, making it efficient for batch processing without requiring electricity or complex machinery. 100 Holes Capsule Filling Machine is particularly suited for industries like nutraceuticals, herbal medicines, Ayurveda, Unani, biotech, cosmetics, and food supplements. It’s compatible with hard gelatin, HPMC, and veg capsules in sizes ranging from 000 to 5, though most models are size-specific and require separate trays or kits for different sizes.

If you need details on specific models and pricing, let me know!

Salient Features of 100 Holes Capsule Filling Machine

Small table-top model ideal for R&D laboratories
10 × 10 hole arrangement for filling 100 capsules per cycle.
GMP-compliant design with contact parts in SS 304 (optional SS 316).
Supports capsule sizes 00, 0, 1, 2, 3, 4 & 5 with interchangeable change parts.

Includes powder tray and scrapper for accurate filling with minimal wastage.
Fully manual hand-operated mechanism.
Comes with one loading tray (additional trays available).
Fills hard gelatin capsules, vegetarian (HPMC), and pullulan capsules with powders, pellets, granules, or tablets (with optional attachment).

Working Principle of 100 Holes Capsule Filling Machine

Preparation: Separate empty capsules into halves. Place the bodies into the 100-hole tray.

Loading: Pour powder into the tray and use a spreader card to distribute evenly over the holes.

Tamping: Use the tamper tool to compress the powder into each capsule body, repeating for multiple layers if needed for higher fill weights.

Capping: Place the cap tray over the filled bodies and press down to join them securely.

Cleanup: Remove filled capsules and clean the trays with a brush or mild soap.

For professional or bulk needs, contact exporter Adinath International for custom GMP versions. Always verify capsule size compatibility before purchase, and check for local regulations if producing for sale. If you’re looking for a specific model, size, or pricing, provide more details for tailored recommendations!

Technical Specification of 100 Holes Capsule Filling Machine

Production Output	Up to 2000 Capsules/hour
Capsule Combinations	Size 00, 0, 1, 2, 3, 4 and 5 (through different machines & parts)
Sequence of holes	10 x 10 = 100
No. of Loading Trays	One no.
Overall Dimension	375mm X 280mm X 400mm approx.
Net Weight	20 Kgs. Approx.
Gross Weight	28 Kgs. Approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Advantages of 100 Holes Capsule Filling Machine

Ideal for Small Batch & R&D Production

Cost-Effective & Low Investment

Easy Operation & Minimal Training:

High Filling Accuracy & Low Wastage

Key Features of 100 Holes Capsule Filling Machine

Manual Operation: All steps—loading capsules, filling, tamping, and joining caps—are done by hand, ensuring full control and no need for power sources. This makes it beginner-friendly and portable.

Construction: Typically made from food-grade ABS plastic, stainless steel, or acrylic. These materials are chemical-resistant, lightweight, durable, and easy to clean, meeting Good Manufacturing Practices (GMP) standards where applicable.

Capacity and Efficiency: Fills 100 capsules per cycle, with output rates of 400–2,000 capsules per hour depending on operator skill and material. It includes accessories like loading trays, tamping sticks, powder spreaders, and sometimes a powder block plate to prevent spills.

Precision and Success Rate: Features precision-machined holes for even filling and high assembly success. The design minimizes powder waste and ensures consistent fill levels.

Sizes and Compatibility:
- Common sizes: 000, 00, 0, 1, 2, 3.
- Not interchangeable between sizes without buying a dedicated model or add-on plates.

FAQ for 100 Holes Capsule Filling Machine

What is a 100 Holes Capsule Filling Machine?

The 100 Holes Capsule Filling Machine is a compact, manual, benchtop device designed for filling empty hard gelatin, HPMC (vegetarian), or pullulan capsules with powders, pellets, or granules. It features a 10 × 10 hole arrangement (100 capsules per cycle) and is ideal for R&D labs, pilot batches, small-scale production, pharmacies, Ayurvedic/herbal manufacturers, and nutraceutical companies. No electricity is required.

What is the production capacity of the 100 Holes Capsule Filling Machine?

The machine can fill 100 capsules per cycle with an output of up to 2,000 capsules per hour (depending on operator skill, powder characteristics, and capsule size). It comes with one loading tray as standard (additional trays available) and is perfect for small to medium batch production.

Which capsule sizes can the 100 Holes Capsule Filling Machine handle?

It supports capsule sizes 00, 0, 1, 2, 3, 4 & 5 (and sometimes 000) through interchangeable change parts or dedicated trays. This makes it highly versatile for pharmaceutical, nutraceutical, herbal, and dietary supplement formulations.

What are the key features of the 100 Holes Capsule Filling Machine?

Key features include:

Small table-top GMP-compliant design
Contact parts in SS 304 (optional SS 316)
Powder tray and scrapper for spillage-free, accurate filling
Fully manual hand-operated mechanism
Multiple tamping options for uniform fill weight
Easy dismantling and cleaning
Lightweight (~20 kg net weight) and portable
Optional tablet filling attachment and extra loading trays

How does the 100 Holes Capsule Filling Machine work?

The process is simple and manual:

Separate empty capsules and load bodies into the 100-hole tray.
Spread powder evenly using the spreader and tamp/compress it into the bodies.
Place the cap tray and press to join caps and bodies.
Eject the filled capsules.

Each cycle typically takes a few minutes and ensures precise, consistent filling with minimal wastage.
