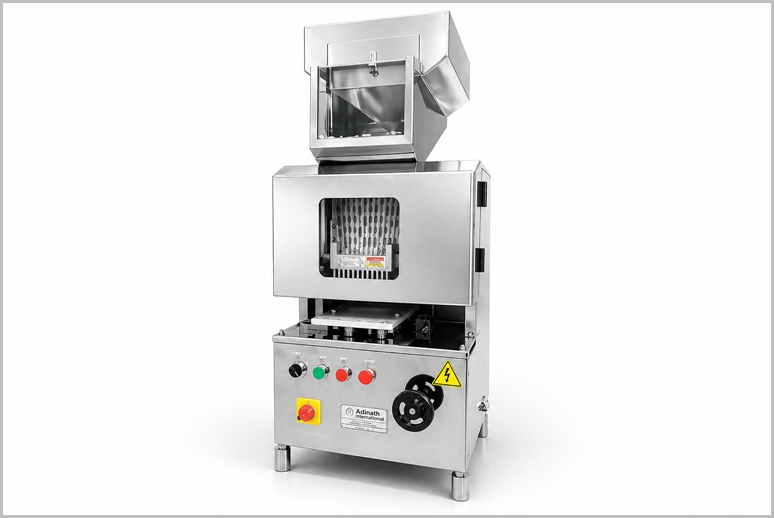

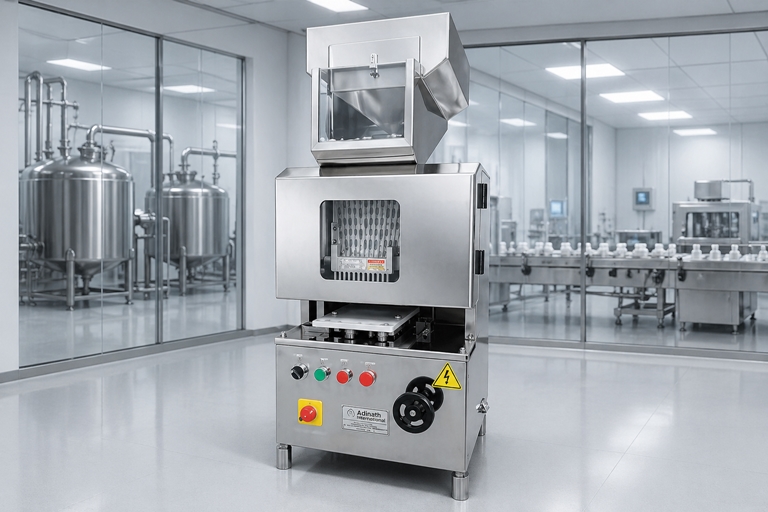

Capsule Orienter

Description

Capsule Orienter also known as a capsule loader, arranger, or inserter is a specialized piece of equipment used primarily in the pharmaceutical, nutraceutical, and compounding industries to automate the loading and orientation of empty hard gelatin or vegetarian capsules into trays or plates for filling machines. It ensures capsules are positioned correctly—typically with the cap end up or in a specific alignment—to streamline the encapsulation process, reduce manual labor, and minimize errors like misorientation or spillage.

If you need details on specific models and pricing, let me know!

Salient Features of Capsule Orienter

Compact-Sized Equipment.
Working numerous filling machines with a single capsule loader will maximize manufacturing output.
Appropriate for GMP productions, Documentation on IQ, OQ, and DQ is available.
When the third tray in the capsule filling machine is in operation, two loading trays can be filled in the loader machine.

Both devices are capable of handling capsules of various sizes.
Since the loader has a single-phase power source, even domestic electricity functions.
Machines capable of processing HPMC, veg, and hard gelatin capsules.
Even a semi-skilled individual can run the machine thanks to its simplicity.

Working Principle of Capsule Orienter

Adinath is one of the leading capsule filling machine manufacturers in India. We are giving here below step-by-step process guide of Capsule Filling Machine with Loader:

By pulling the lever, slide the rail further.
Place the loading tray from the capsule filling machine onto the loading area of the capsule loader automatically.
Attach the guiding plate to the loading tray’s four top legs.
Slide rail is pushed within.
Launch the device.
Once the machine is running, the loader will automatically fill the rows one at a time.
It will fill 12 capsules in the loading tray with each stroke.
The machine will automatically stop once all 300 holes have been filled with capsules.
Now remove the loading tray and the guide plate.
Add the properly filled loading tray to the capsule filling machine.
Verify that the front knob is turned to the right.
Now further steps will be performed in the manual capsule filling machine.

Technical Specification of Capsule Orienter

Model	ACL 300
Production Output	Up to 20000 Capsules/hour (depends upon operator’s efficiency)
Capsule Combinations	Size 00, 0, 1, 2, 3 and 4 (through format parts)
Sequence of holes	25 x 12 = 300
Power Voltage	220 Volts, Single Phase, 50 Hertz
Overall Dimension	630mm X 430mm X 780mm approx.
Net Weight	80 Kgs. approx.
Gross Weight	120 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Benefits of Capsule Orienter

Increases efficiency: Reduces manual handling time by 80-90%.

Improves accuracy: Ensures consistent orientation for better filling, sealing, and quality control.

Compact design: Fits small spaces in labs or production areas.

Cost-effective: Entry-level manual models start for small operations; automatic versions suit high-volume pharma lines.

Key Advantages of Capsule Orienter

Purpose: Empty capsules arrive in bulk in random orientations. The orienter sorts them, aligns them, and loads them into a multi-hole tray for a capsule filling machine. This can cut loading time from several minutes to seconds.

Types:
- Manual Capsule Orienter: Hand-operated or semi-automated. It uses a simple hopper and alignment mechanism to load capsules into trays. Ideal for small-scale production or labs.
- Automatic Capsule Orienter: Fully automated, often vibratory or rotary-based, handling up to 36,000 capsules per hour. Uses centrifugal force, air, or belts to orient and feed capsules into trays or directly into filling lines.

Compatibility: Works with standard capsule sizes (e.g., #000, #00, #0, #1, #2, #3, #4). Size change parts are available for versatility.

FAQ for Capsule Orienter

What is a Capsule Orienter and what is it used for?

A Capsule Orienter, also known as a Capsule Loader or Automatic Capsule Loader (Model ACL 300), is a compact auxiliary machine that automatically orients and loads empty hard gelatin, HPMC (vegetarian), or pullulan capsules into the loading trays of manual or semi-automatic capsule filling machines. It ensures correct alignment (typically cap up/body down) to streamline the filling process, reduce manual labor, minimize errors, and increase overall productivity in pharmaceutical, nutraceutical, Ayurvedic, and herbal industries.

What is the production capacity of the Capsule Orienter?

The ACL 300 model can load up to 20,000 capsules per hour (depending on operator efficiency). It handles a 300-hole tray (25 × 12 arrangement) and fills one complete tray in approximately 28–30 seconds. One loader can support multiple filling machines simultaneously, as it allows loading two trays while the third is in use on the filler.

Which capsule sizes and materials does the Capsule Orienter support?

It supports standard capsule sizes 00, 0, 1, 2, 3, and 4 through interchangeable format/change parts. The machine is compatible with hard gelatin capsules, HPMC (vegetarian), and veg capsules, making it highly versatile for different formulations and industries.

Does the Capsule Orienter require electricity? What are its key features?

Yes, it uses a single-phase 220V power supply (works on domestic electricity; voltage can be adjusted per customer requirements). Key features include its compact design (approx. 630mm × 430mm × 780mm, net weight ~80 kg), GMP-compliant construction with SS contact parts, fast and automatic row-by-row loading, simple operation (semi-skilled operators can run it), low maintenance, easy cleaning, and availability of IQ/OQ/DQ documentation.

How does the Capsule Orienter work and what are its main benefits?

The working process is straightforward: Place the empty loading tray and guiding plate on the loader, feed capsules into the hopper, start the machine (it automatically orients and loads 12 capsules per stroke), and remove the filled tray once all 300 holes are loaded. Main benefits include reducing manual handling time by 80-90%, improving accuracy and consistency, minimizing operator fatigue, increasing overall production output, and enabling one loader to serve multiple filling machines efficiently.
