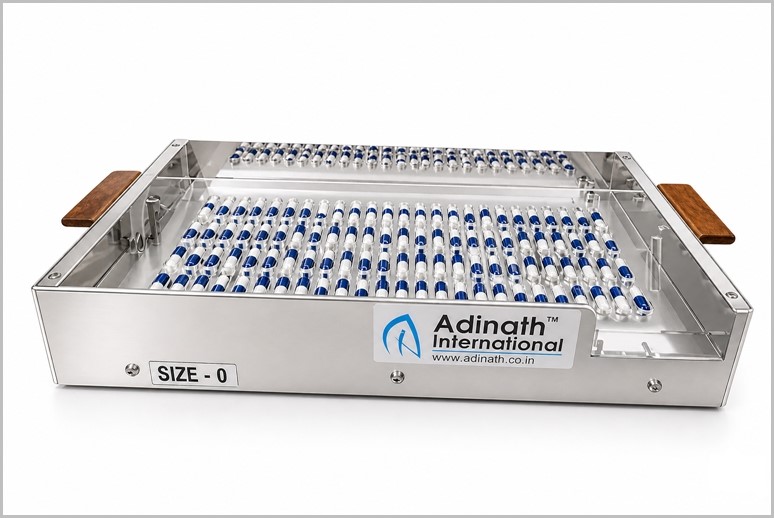

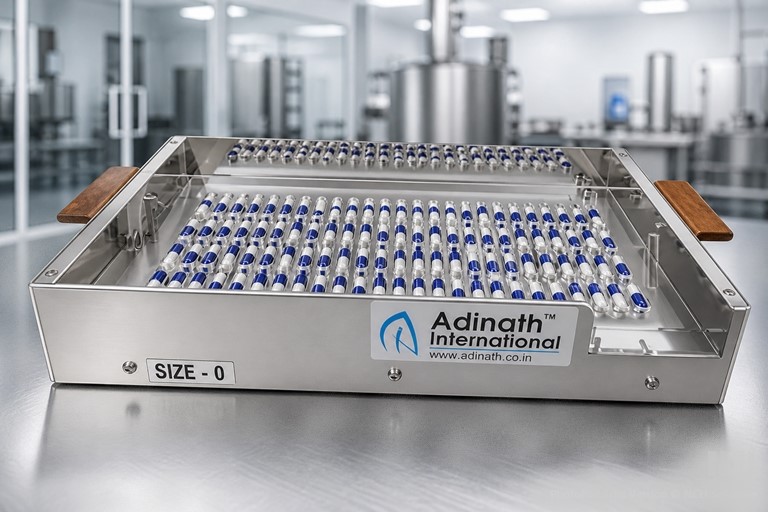

Manual Capsule Loader

Description

Manual Capsule Loader also known as a Manual Capsule Orienter or Inserter is a compact, benchtop device used in pharmaceutical, nutraceutical, and herbal manufacturing to efficiently load empty capsules into the trays of manual capsule filling machines. It automates the orientation and placement of capsules to speed up the preparation process, reducing manual handling time from about 5 minutes to just 30-80 seconds per tray of 300 capsules. This makes it ideal for small-scale production, R&D labs, pilot batches, and facilities producing up to 6,500 capsules per hour when paired with a filling machine.

If you need details on specific models and pricing, let me know!

Salient Features of Manual Capsule Loader

Easy to move, store, and use in limited spaces like R&D labs, pilot plants, or small production areas.
Made with high-quality materials such as Acrylic with Stainless Steel cover or SS 304/316 contact parts.
Ensures hygiene, durability, and compliance with pharmaceutical standards. Easy to clean and maintain.
Supports standard sizes 00, 0, 1, 2, 3, 4, and 5 (through interchangeable parts or separate orienters).

Fully manual operation — simple to use with no power dependency.
Ideal for any location, including areas without reliable electricity.
Affordable solution that offers significant time savings and better output for manual capsule filling setups.
Low maintenance and negligible rejection rate.

Working Principle of Manual Capsule Loader

Pour empty capsules into the loader’s hopper or magazine.

The device orients the capsules automatically and dispenses them into the loading tray.

Transfer the filled tray to a manual capsule filling machine for powder/granule loading, tamping, and capping.

Clean the loader after use—most models disassemble easily.

Technical Specification of Manual Capsule Loader

The manual capsule loader has the following tech specifications:

Comes with a production output of upto 6000 capsules per hour

Supports sizes 00, 0, 1, 2, 3, 4, and 5.

Features 25×12 whole sequencing. Hence, it supports up to 300 capsules filled at a time.

3 loading trays

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Benefits of Manual Capsule Loader

High output abilities

Ability to manage versatile capsule sizes

Compact design (405mm/300mm/455mm)

Lightweight construction (weighs only 43kgs)

Key Features of Manual Capsule Loader

Compatibility: Works with hard gelatin, HPMC, and veg capsules in sizes 00, 0, 1, 2, 3, 4, and 5.

Construction: Typically made from high-quality stainless steel for durability, GMP compliance, and easy cleaning. Some models are lightweight and portable for reduced shipping costs.

Operation: Fully manual control—no electricity required—making it simple to use with minimal training. It loads capsules into a 300-hole tray, which can then be transferred directly to a capsule filler.

Efficiency: Boosts productivity by minimizing errors in orientation and handling, suitable for independent operators, doctors, researchers, and small industries.

Optional Accessories: Often sold with related tools like capsule orienters, tampers, powder spreaders, and cleaning brushes for complete filling kits.

FAQ for Manual Capsule Loader

What is a Manual Capsule Loader and who is it suitable for?

A Manual Capsule Loader (also called Manual Capsule Orienter or Arranger) is a compact, hand-operated device designed to quickly load empty hard gelatin, HPMC (vegetarian), or pullulan capsules onto the loading trays of manual capsule filling machines. It is ideal for small to medium-scale production in pharmaceutical, nutraceutical, Ayurvedic, herbal, and R&D labs, significantly reducing manual loading time and boosting productivity.

What is the capacity and output of the Manual Capsule Loader?

The standard model features a 100-hole configuration (typically 25 x 4 arrangement). It can load up to 10,000 capsules per hour (operator-dependent). For a 300-hole manual capsule filler, it fills one tray in three cycles, enabling continuous operation and higher overall throughput when paired with the filler.

Which capsule sizes does the Manual Capsule Loader support?

It supports a wide range of standard capsule sizes: 00, 0, 1, 2, 3, 4, and 5. Interchangeable parts or dedicated models are available for different sizes. It works efficiently with hard gelatin, vegetarian (HPMC), and other compatible empty capsules.

What materials is the Manual Capsule Loader made from and how easy is it to use?

The loader is typically constructed with high-quality Acrylic tray + Stainless Steel (SS 304/316) support/cover for durability, hygiene, and GMP compliance. It features a compact, lightweight design that is very easy to operate — even semi-skilled operators can use it with minimal training. No electricity is required.

What are the main advantages of using a Manual Capsule Loader?

Key advantages include dramatic time savings (loading a tray in 30–60 seconds vs. several minutes manually), reduced labor and errors, spillage-free operation, easy cleaning and maintenance, portability, low cost, and improved consistency. It is an excellent accessory that enhances the efficiency of manual capsule filling machines while maintaining flexibility for small-batch production.
