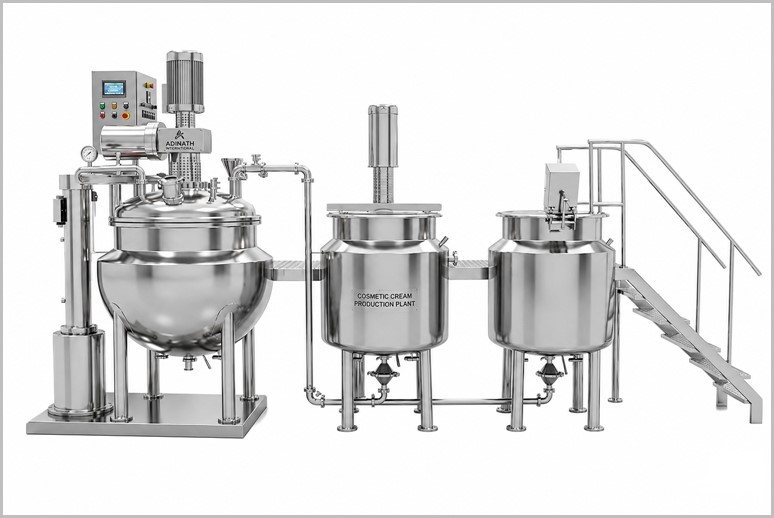

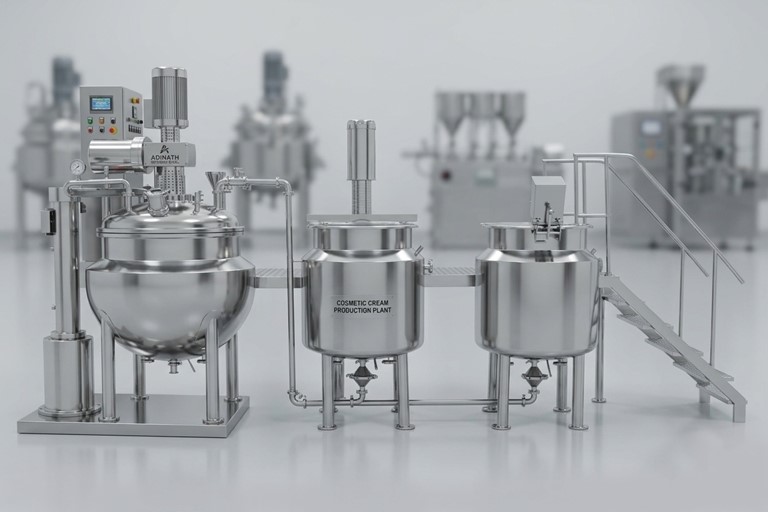

Lotion Preparation Plant

A Lotion Preparation Plant is specialized industrial equipment used in the pharmaceutical, cosmetic, and consumer care industries for manufacturing semi-viscous products like lotions, creams, gels, ointments, toothpastes, and shampoos. These plants handle key processes such as emulsification, homogenization, and blending to produce high-quality, consistent batches. They are designed for efficiency, often requiring just one operator and a helper, and comply with sanitary standards like CIP and SIP for easy cleaning.

Lotion Preparation Plant Video

Key Components and Features

Typical lotion preparation plants include:

• Preparation Vessels: Jacketed tanks for heating and mixing oil and water phases separately.

• Inline High-Speed Homogenizer: Ensures smooth blending and reduces particle size for a uniform texture.

• Mixing Systems: High-shear mixers for thorough incorporation of emulsifiers, stabilizers, and active ingredients.

• Storage and Transfer Systems: Pumps and pipelines for transferring the final product to filling lines.

These plants are built from stainless steel to meet GMP standards and can process medicated, herbal, or synthetic formulations.

Manufacturing Process in a Lotion Preparation Plant

The production follows a standard emulsion-based workflow:

1. Oil Phase Preparation: Add powder or flake ingredients to the oil base and heat/mix.

2. Water Phase Preparation: Combine water-soluble components like emulsifiers and stabilizers.

3. Emulsification: Blend the oil and water phases under controlled temperature to form the emulsion.

4. Homogenization and Cooling: Use the homogenizer to refine the mixture, then cool while stirring to achieve desired viscosity.

5. Final Mixing: Incorporate active ingredients until uniform.

This process ensures lotions are non-comedogenic and suitable for skin application via hands, brushes, or cloths.

Applications

• Pharmaceuticals: Medicated lotions for skin conditions.

• Cosmetics: Moisturizing body lotions, face creams, and hair gels.

• Personal Care: Toothpastes, face washes, and scrubs.

Processing Options

A comprehensive range of additional features can be provided to increase the flexibility of the Mixer Each option is supplied fully integrated in to the control system of the unit with appropriate safety features.

• Heating / cooling and insulated jackets complete with temperature control and safety equipment

• Semi Contra Rotary agitator with open slot scraper design

• Short loop product Re-Circulation for smaller batch sizes

• Hydraulic lifting of manufacturing vessel top dish to facilitate product recovery

• Separate pre – mix vessels for wax and water phase

• Process piping with transfer panel design for automated plants

• Leaning In place cycles with validation protocols

Lotion Preparation Plant Layout (GA Drawing)

Salient Features of Lotion Preparation Plant

• The Plant is designed to be operated only by one operator and one helper.

• All material transfers are done by vacuum or by transfer pumps.

• All the vessels are cGMP (paint free construction).

• The gaskets used are of silicon (food grade).

• All contact parts are of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free.

• The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier.

• All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.

• All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.

• The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.

• All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.

• A microprocessor based automatic operating plant can be designed as per requirement.

• All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Applications of Lotion Preparation Plant

Pharmaceuticals: Ointments, Lotions, Creams and Gels

Cosmetics: Cold Creams, Emulsions, Lotions, Gels, Hair Gels, Mascara Make Up, Shampoo and  Toothpaste

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.

* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
