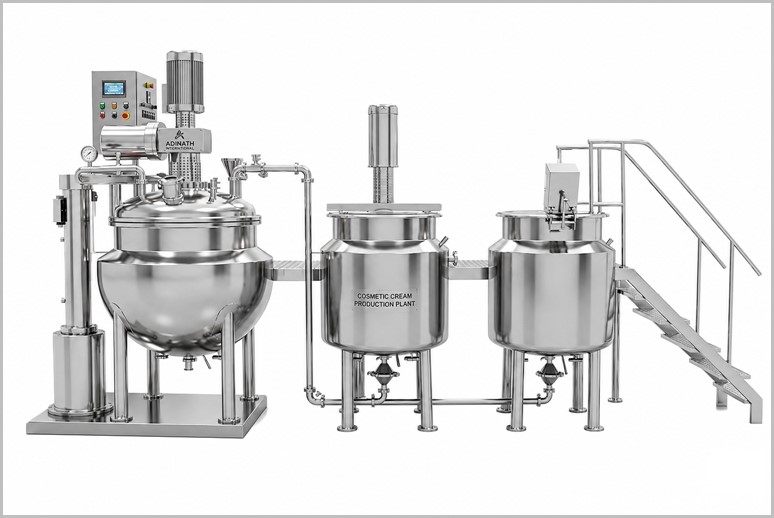

Lotion Toothpaste Manufacturing Plant

Q: What are the key features of this plant?

Operated by just one operator and one helper . cGMP-compliant design with SS 304/SS 316 mirror-polished contact parts. Jacketed vessels with heating/cooling and digital/PLC control panel. High-speed emulsifier/homogenizer and contra-rotary agitators. Vacuum transfer, CIP/SIP capability, and tri-clover joints for easy cleaning. Closed-loop system to minimize contamination and aeration.

Description

Lotion and Toothpaste Manufacturing Plant are specialized facilities used primarily in the pharmaceutical, cosmetic, and personal care industries. These plants are designed for producing semi-solid products like lotions, creams, ointments, gels, and toothpastes through processes involving mixing, emulsification, homogenization, and deaeration. They ensure high-quality output while adhering to cGMP standards for hygiene and safety. Such plants are versatile, handling multiple product types in a single setup, and are available in capacities ranging from small-scale to industrial-scale. These systems typically feature closed-loop designs to minimize contamination, vacuum mixing to reduce aeration, and automation options like PLC/SCADA controls for precision. Manufacturers often provide customizable setups with load cells for weighing, high-shear mixers for uniformity, and CIP/SIP connections for easy cleaning.

If you need details on specific models and pricing, let me know!

Salient Features of Lotion Toothpaste Manufacturing Plant

The Plant is designed to be operated only by one operator and one helper.
All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.
All the vessels are cGMP (paint free construction).
The gaskets used are of silicon (food grade).
All contact parts are of S.S. 304 quality material & finished to class 4B (Mirror) finish and are crevice free.
The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice).

All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
All material transfers are done by vacuum or by transfer pumps.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
A microprocessor based automatic operating plant can be designed as per requirement.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Working Principle of Lotion Toothpaste Manufacturing Plant

The production process for lotions and toothpastes follows a similar multi-phase approach, adapted for viscosity and ingredients. Here’s a step-by-step outline:

Preparation of Phases:
- Water phase: Heat and dissolve water-soluble ingredients.
- Wax/oil phase: Melt fats, emulsifiers, or abrasives.

Emulsification and Mixing:
- Transfer phases to the main vessel.
- Use high-shear mixing under vacuum to combine into a homogeneous emulsion. For toothpastes, this addresses abrasives’ high viscosity; for lotions, it ensures silky texture.

Homogenization and Deaeration:
- High-speed homogenization breaks particles for uniformity.
- Vacuum removes entrained air, preventing bubbles in the final product.

Cooling and Quality Check:
- Cool the batch in storage vessels while stirring.
- Test for pH, viscosity, and microbial safety.

Filling and Packaging:
- Pump to filling machines for tubes, bottles, or jars.
- Seal and label under sterile conditions.

Lotion Toothpaste Manufacturing Plant Layout (GA Drawing)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Manufacturing Plant

Oral Suspension Production Plant

Cosmetic Manufacturing Plant

Oral Liquid Production Plant

Shampoo Manufacturing Plant

Syrup Preparation Plant

Toothpaste Preparation Plant

Applications of Manufacturing Plant

Why Choose Our Toothpaste Production Plant?

There are myriads of reasons to choose our toothpaste production plant and some of those are mentioned below:

Vessel design for high productivity

The impeccable vessel design includes a conical construction with proper geometric ratios that facilitate seamless product flow. Owing to its angled surface, you can clean the vessel with superlative ease.

Integrated vacuum system for low operational costs

The integrated vacuum system with easy to use vacuum modification settings put you in control. It is highly environment friendly and sought after due to low operational costs. The vacuum line is easy to clean too.

User Friendly Interface

Achieve simple and fast set-up owing to an ultra-modern mixer processor package that is capable of process parameter storage in a jiffy. You also have optionally PLC based and touch screen MMI with SCADA packages to make the entire process a cake-walk for you. With plenty of packages at your disposal for specific requirements and configuration flexibility, this machine is certainly a cut above the rest.

Key Components of Lotion Toothpaste Manufacturing Plant

A standard lotion/toothpaste manufacturing plant includes the following core elements:

Water Phase Vessel: Jacketed tank for heating and mixing water-based ingredients.

Wax/Oil Phase Vessel: Insulated vessel for melting and blending oils, waxes, or abrasives.

Main Manufacturing Vessel: Central mixer with anchor stirrer, high-speed homogenizer, and vacuum pump. Often includes lid-lifting for cleaning.

Storage/Buffer Vessel: Intermediate tank for holding processed batches.

Homogenizer/Emulsifier: High-shear rotor/stator mixer for breaking down particles.

Vacuum Pump & Piping: System to remove air and volatiles.

Control Panel: PLC-based with touch-screen interface.

Filling & Sealing Machine: Integrated or separate unit for tubes/jars.

FAQ for Lotion Toothpaste Manufacturing Plant

What is a Lotion Toothpaste Manufacturing Plant?

A Lotion Toothpaste Manufacturing Plant is a versatile semi-solid processing system designed for producing lotions, creams, ointments, gels, and toothpastes. It is widely used in pharmaceutical, cosmetic, and personal care industries. The plant combines mixing, emulsification, homogenization, and deaeration under vacuum to ensure high-quality, stable, and uniform products while complying with cGMP standards.

What are the key features of this plant?

Operated by just one operator and one helper.
cGMP-compliant design with SS 304/SS 316 mirror-polished contact parts.
Jacketed vessels with heating/cooling and digital/PLC control panel.
High-speed emulsifier/homogenizer and contra-rotary agitators.
Vacuum transfer, CIP/SIP capability, and tri-clover joints for easy cleaning.
Closed-loop system to minimize contamination and aeration.

How does the Lotion Toothpaste Manufacturing Plant work?

The process involves preparing water and oil/wax (or abrasive) phases separately, then transferring them under vacuum into the main vessel. High-shear mixing and homogenization combine the phases into a stable emulsion or paste. The batch is cooled, deaerated, and tested for quality before being transferred to storage or filling machines. This ensures smooth texture and consistent viscosity.

What products can be manufactured in this plant?

It is suitable for a wide range of semi-solid products, including:

Lotions and creams
Toothpastes and gels
Ointments and medicated pastes
Hair gels, body washes, and other personal care formulations

The plant is highly versatile for both pharmaceutical and cosmetic applications.

What are the main advantages of the Lotion Toothpaste Manufacturing Plant?

High efficiency with low manpower requirement.
Excellent product uniformity and stability with vacuum deaeration.
Easy cleaning and quick changeover (CIP/SIP).
Flexible batch sizes and optional full automation.
Robust, corrosion-resistant design suitable for various viscosities and regulatory compliance.
