Syrup Preparation Plant

Description

Syrup Preparation Plant also known as a Syrup Manufacturing Plant or Liquid Oral Manufacturing Plant is a specialized industrial system primarily used in the pharmaceutical industry for the efficient and hygienic production of oral liquid formulations, such as cough syrups, expectorants, antacid suspensions, and other medicinal syrups. It ensures compliance with current Good Manufacturing Practices (cGMP) by minimizing manual handling, preventing contamination, and maintaining precise control over temperature, mixing, and filtration processes. These plants are also adaptable for food and beverage applications, like soft drink syrups or flavor concentrates, but pharmaceutical-grade designs emphasize sterility and FDA-approved materials.

Optional Features of Syrup Manufacturing Plant

Parts made of SS304/SS316/SS316L/as per customers’ requirements.

Top entry or Bottom entry Stirrer & Emulsifier can be provided.

Fittings and valves can be offered SS304 / SS316.

CIP & SIP connections for cleaning after each batch with control from the Panel Board.

Connections with tri clover joints for easy cleaning & replacement.

If you need details on specific models and pricing, let me know!

Salient Features of Syrup Preparation Plant

The Plant is designed to be operated only by one operator and one helper.
All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.
All the vessels are cGMP (paint free construction).
The gaskets used are of silicon (food grade).
All contact parts are of S.S. 304 quality material & finished to class 4B (Mirror) finish and are crevice free.
The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice).

All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
All material transfers are done by vacuum or by transfer pumps.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
A microprocessor based automatic operating plant can be designed as per requirement.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Working Principle of Syrup Preparation Plant

This system consist of a closed circuit manufacturing facility feeding of Sugar/Water Phase to loading the Volumetric Liquid Filling Machine.

The Sugar and Water, are load with vacuum system or by mechanical system or manually.

The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating (In small model) / steam heating facility (in bigger size model). The sugar syrup is prepared at required temperature & are transferred to Manufacturing Vessel by vacuum or by transfer pump.

The product during emulsion formation is recirculated through In-Line Homoginizer or Liquid Transfer Pump. (Optional Facility)

The Pump also discharges the product in the Storage Vessel.

The Storage Vessel is then taken to the filling area (if it is small capacity) and is connected to again Liquid Transfer pump. Or Storage Vessel remain fixed (in bigger size) & pump transfer the Liquids in the float tank which is connected with filling machine.

The entire plant can be operated by centralized operating panel by one operator

The plant is equipped with an electrical control panel with digital temperature indicators / controllers and digital timers.

Minimum two batches per shift of the same product can be assured in this plant.

This plant conforms to CGMP standards (paint free Construction).

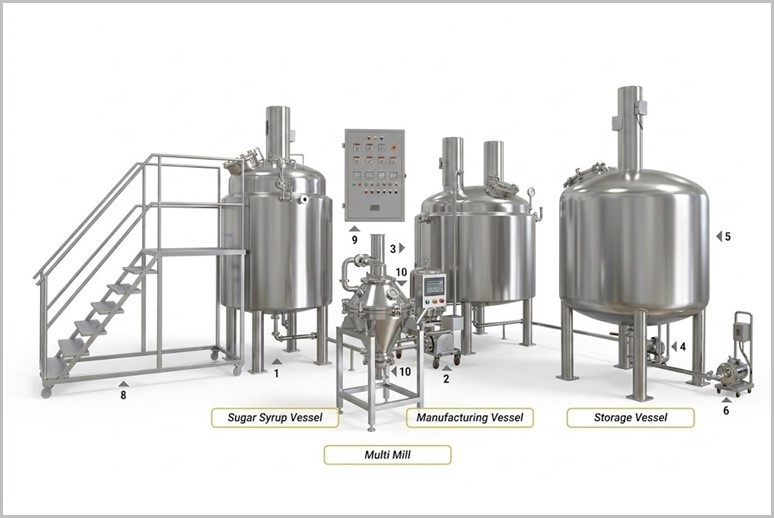

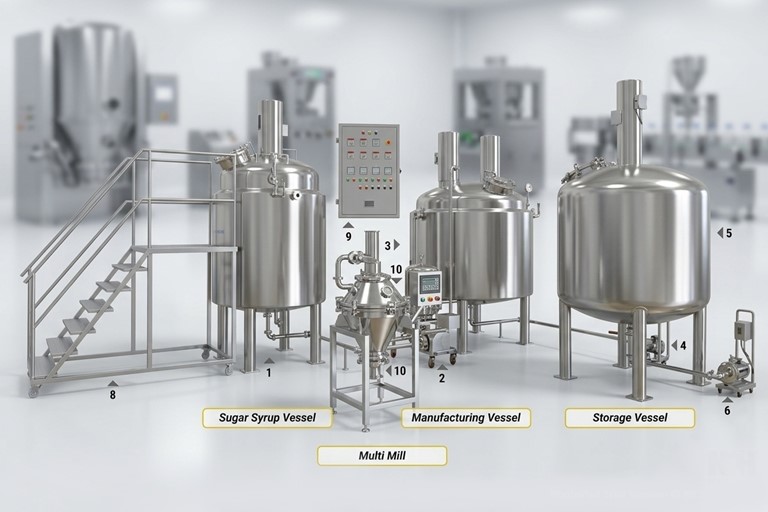

Accessories of Syrup Preparation Plant

Sugar syrup vessel
Filters press
Manufacturing vessel
Transfer pump
Storage vessel
Transfer pump
Piping to connect all above equipment’s.
Working platform.
Control panel

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Manufacturing Plant

Oral Suspension Production Plant

Cosmetic Manufacturing Plant

Oral Liquid Production Plant

Shampoo Manufacturing Plant

Syrup Preparation Plant

Toothpaste Preparation Plant

Applications of Manufacturing Plant

Advantages of Syrup Preparation Plant

Hygienic and efficient, with easy CIP (Clean-In-Place) systems.

Scalable for small labs to large factories.

Energy-efficient options like ambient-temperature mixing to avoid heating costs.

Customizable with add-ons like colloid mills for suspensions or vacuum systems for degassing.

Key Features of Syrup Preparation Plant

A typical Syrup Preparation Plant consists of interconnected modules designed for a closed-circuit operation. The main components include:

Sugar Syrup Vessel:
- Prepares the initial sugar-water base by dissolving sugar in water at controlled temperatures.
- High-speed stirrer, electrical or steam heating, vacuum loading for sugar/water. Capacities from 50–5,000 liters.

Manufacturing Vessel:

- Main mixing and formulation tank where active ingredients, flavors, preservatives, stabilizers, and emulsifiers are added to the syrup base.
- Propeller agitator or homogenizer for uniform blending, jacketed for heating/cooling, recirculation loop for emulsification.

Storage Vessel:
- Holds the finished syrup temporarily before filtration or filling to allow settling and quality checks.
- Insulated to maintain temperature, with outlets for transfer pumps.

Filter Press (e.g., Zero Hold Filter):
- Removes impurities, undissolved particles, and achieves clarity in the final product.
- Stainless steel plates, tri-clover joints for easy cleaning.

Transfer Pumps & Homogenizer:
- Moves syrup between vessels; optional inline homogenizer breaks down particles for smooth texture.
- Centrifugal or positive displacement pumps, sanitary design.

Control Panel:
- Centralized automation for monitoring temperature, timers, and operations.
- Digital indicators, optional SCADA for microprocessor-based control.

FAQ for Syrup Preparation Plant

What is a Syrup Preparation Plant?

A Syrup Preparation Plant (also known as Syrup Manufacturing Plant or Liquid Oral Manufacturing Plant) is a specialized closed-circuit system used primarily in the pharmaceutical industry to produce oral liquid formulations such as cough syrups, suspensions, elixirs, and antacids. It ensures hygienic, efficient production with precise control over sugar dissolution, mixing, and filtration while complying with cGMP standards.

What are the key features of the Syrup Preparation Plant?

Key features include low manpower operation (one operator + one helper), SS 304/316 contact parts with mirror finish and tri-clover joints, cGMP-compliant vessels, food-grade gaskets, CIP/SIP capability, vacuum or pump transfers, jacketed vessels with heating, high-speed stirrers/emulsifiers, digital/PLC controls, and sterilizable equipment. Batch capacities range from small lab to large-scale (up to 10,000 liters).

How does the Syrup Preparation process work?

Sugar and water are loaded into a jacketed Sugar Syrup Vessel with high-speed stirring and heating. The syrup is filtered and transferred to the Manufacturing Vessel (with optional homogenization), then to a Storage Vessel via pumps. The closed system feeds directly into filling machines, supporting multiple batches per shift with minimal contamination.

What industries and applications does it support?

It is widely used in the Pharmaceutical, Biotech, Ayurvedic, Herbal, Nutraceutical, and Cosmetic industries. Applications include production of medicinal syrups, oral suspensions, flavor concentrates, and other liquid oral products requiring consistent quality and hygiene.

What are the main components and benefits?

Main components include Sugar Syrup Vessel, Filter Press, Manufacturing Vessel, Storage Vessel, Transfer Pumps, Piping, Working Platform, and Control Panel. Benefits include high efficiency, easy cleaning/validation, reduced contamination, scalability, regulatory compliance, and customizable options for different formulations.
