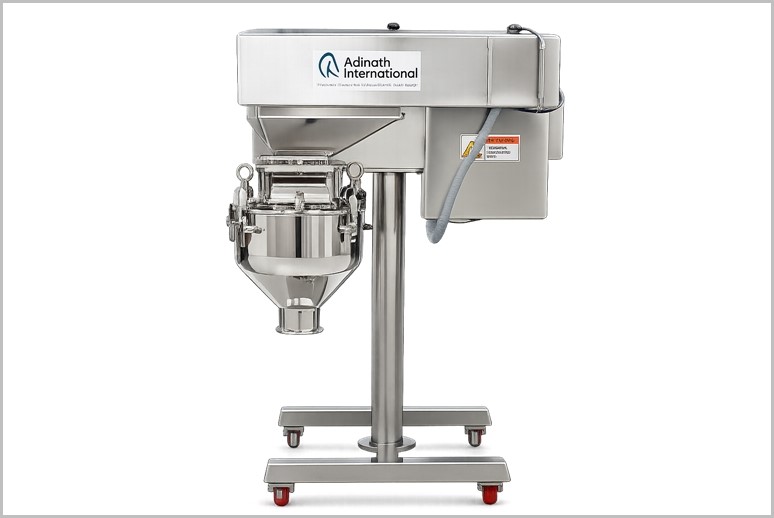

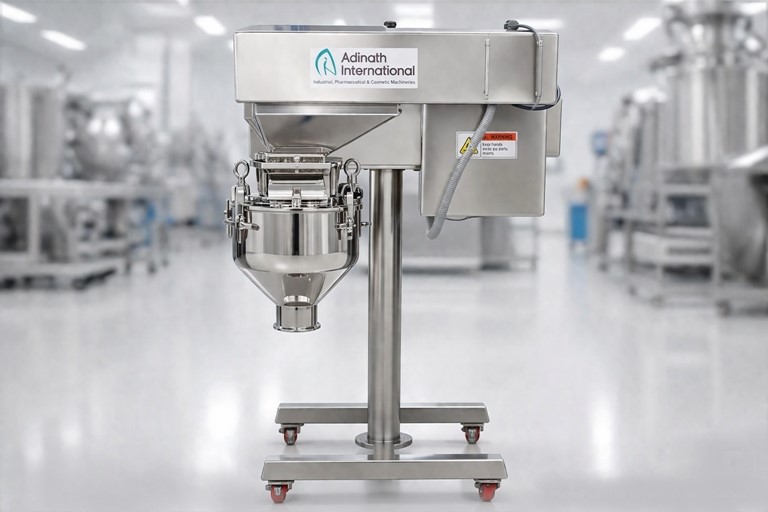

Small Scale Multi Mill

Q: What is a Small Scale Multi Mill and what is it used for?

The Small Scale Multi Mill is a compact, versatile, high-speed size reduction machine designed for R&D labs, pilot plants, and small production batches. It is used for granulating, pulverizing, milling, shredding, and sieving both wet and dry materials. It is ideal for Pharmaceutical, Ayurvedic, Herbal, Nutraceutical, Biotech, Cosmetic, Food, and Chemical industries to achieve uniform particle size distribution (PSD) for APIs, excipients, and herbal powders in small batches (typically 1–50 kg).

Q: How does the Small Scale Multi Mill work?

Material is fed through the stainless steel hopper into the milling chamber. A high-speed rotor (750–3000 RPM) with 12 beaters (knife & impact edges) and 2 scrapper blades subjects the material to impact, shearing, cutting, and attrition forces. The processed particles pass through interchangeable perforated screens (0.5 mm to 12 mm). Oversized particles continue to be milled until they achieve the desired size. The rotor direction is reversible for optimized performance.

Q: What are the key features and advantages of the Small Scale Multi Mill?

Compact GMP model with SS 304 contact parts Portable design on castor wheels for easy mobility Suitable for both dry and wet granulation Higher output with excellent process uniformity Reversible blade rotation and variable speeds Easy disassembly and cleaning for quick product changeover Low power consumption and minimal heat generation — perfect for lab and pilot scale use.

Q: What is the capacity and technical specifications of the Small Scale Multi Mill?

The standard model MM 75 offers: Production Output : Up to 75 kg/hour Motor : 1 HP, 1440 RPM, 3 Phase Rotor Speed : 750 / 1500 / 2300 / 3000 RPM Beaters : 12 knife & impact edges + 2 scrapper blades Screen : 0.5 mm to 12 mm perforated screens It is ideal for small batch sizes from 1 to 50 kg.

Q: How easy is it to clean and maintain the Small Scale Multi Mill?

The machine is designed for easy cleaning and GMP compliance. All contact parts (hopper, screen, beaters, and discharge) can be quickly dismantled without tools. Mirror-polished stainless steel surfaces and the absence of dead corners minimize residue. This allows fast, thorough cleaning and supports frequent product changeovers in laboratory and pilot-scale environments.

Description

Small Scale Multi Mill is a compact, versatile machine designed for particle size reduction, pulverization, granulation, and sieving of dry or wet materials, primarily used in pharmaceuticals, food, chemicals, and cosmetics. Tailored for R&D, pilot plants, or small production runs, it handles batch sizes typically ranging from 1 to 50 kg. The machine employs high-speed rotating blades and interchangeable screens to mill coarse materials into finer, uniform particles, enhancing flowability, dissolution, and formulation consistency. Its sieving capability ensures precise particle size distribution (PSD) for downstream processes like tableting.

If you need details on specific models and pricing, let me know!

Salient Features of Small Scale Multi Mill

Compact GMP Model.
Suitable for dry and wet granules.
All contact parts are made out of SS304 quality material.
Castor wheel provided for the ease of mobility.
Sieves available in sizes of 0.5 to 12mm hole diameter.
10 numbers of beaters with knife edges & impact edges & 02 nos. scrapper blades.
In GMP Model complete body cladded with SS304 and polished to the matt finish & in Standard Model excluding product contact parts, all other parts made out of C.I. or M.S. and colored.

Machine rated for continuous operation.
Higher output with process uniformity.
All contact parts can easily be dismantled and cleaned for change of product.
Wide range of SS perforated screens available
Machine portable on castor wheels.
Reversible direction of blade rotation.
Different size of screen / speed / number of blade / directions of rotation of blade can be selected.

Working Principle of Small Scale Multi Mill

The Small Scale Multi Mill combines impact, shear, and sieving in a single unit. Material is fed into the hopper, entering the milling chamber where high-speed blades strike and shear it against the chamber walls and screen. Smaller particles pass through the screen’s apertures, while larger ones are recirculated for further milling. This top-down process ensures a uniform PSD, controlled by blade type, rotor speed, and screen size. The cycle typically takes 5-10 minutes per batch.

Technical Specification of Small Scale Multi Mill

Model	MM 75
Production Output	Up to 75 kgs. /Hour
Rotor assembly diameter	150 mm (approx.)
Rotor Speed	750 / 1500 / 2300 / 3000 RPM
Beaters	12 knife & impact edges & 2 scrapper blades
Screen dimensions approx.	Inner diameter – 260 mm, Height – 135 mm
Drive Motor	1 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.
Starter	DOL Starter with reversible switch
Material Charging Height	1250 mm approx.
Net Weight	150 Kgs. approx.
Gross weight	275 kgs. approx.
Overall Dimensions approx. (LXWXH)	870mm x 965mm x 1630mm approx.
Case Dimensions approx. (LXWXH)	1200mm x 1550mm x 1860mm approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of Small Scale Multi Mill

Versatility: Handles wet/dry materials, supporting milling, granulation, shredding, and sieving in one unit.

Precision: Interchangeable screens (0.2-10 mm) ensure tight PSD control, reducing segregation in blends.

Compact Design: Small footprint (e.g., 1-2 m²) fits labs or cleanrooms; mobile for flexibility.

High Throughput: Processes 10-200 kg/h for small-scale models, faster than manual sieving.

GMP Compliance: Smooth SS surfaces, easy disassembly, and optional CIP systems ensure hygiene.

Low Maintenance: Minimal heat generation, low noise (<85 dB), and durable blades reduce downtime.

Key Features of Small Scale Multi Mill

Hopper/Infeed: Stainless steel (SS316) funnel for loading materials, with capacities of 5-50 liters for small-scale models.

Milling Chamber: Cylindrical housing with 10-12 fixed or detachable blades and scraper blades to prevent clogging.

Rotor/Impeller: High-speed shaft driven by a motor, delivering impact, shear, and attrition forces.

Sieves/Screens: Interchangeable perforated screens or wire meshes for size classification, mounted around the chamber.

Discharge Chute: Bottom or side outlet for collecting milled/sieved product, often with a swivel mechanism for easy container alignment.

Drive System: Electric motor with variable frequency drive (VFD) for speed control, paired with a gearbox for stability.

Control Panel: Features speed adjustment, timers, and safety interlocks.

Frame: Compact, mobile SS or mild steel stand, often with lockable wheels.

All contact parts are GMP-compliant stainless steel for hygiene and ease of cleaning.

FAQ for Small Scale Multi Mill

What is a Small Scale Multi Mill and what is it used for?

The Small Scale Multi Mill is a compact, versatile, high-speed size reduction machine designed for R&D labs, pilot plants, and small production batches. It is used for granulating, pulverizing, milling, shredding, and sieving both wet and dry materials. It is ideal for Pharmaceutical, Ayurvedic, Herbal, Nutraceutical, Biotech, Cosmetic, Food, and Chemical industries to achieve uniform particle size distribution (PSD) for APIs, excipients, and herbal powders in small batches (typically 1–50 kg).

How does the Small Scale Multi Mill work?

Material is fed through the stainless steel hopper into the milling chamber. A high-speed rotor (750–3000 RPM) with 12 beaters (knife & impact edges) and 2 scrapper blades subjects the material to impact, shearing, cutting, and attrition forces. The processed particles pass through interchangeable perforated screens (0.5 mm to 12 mm). Oversized particles continue to be milled until they achieve the desired size. The rotor direction is reversible for optimized performance.

What are the key features and advantages of the Small Scale Multi Mill?

Compact GMP model with SS 304 contact parts
Portable design on castor wheels for easy mobility
Suitable for both dry and wet granulation
Higher output with excellent process uniformity
Reversible blade rotation and variable speeds
Easy disassembly and cleaning for quick product changeover
Low power consumption and minimal heat generation — perfect for lab and pilot scale use.

What is the capacity and technical specifications of the Small Scale Multi Mill?

The standard model MM 75 offers:

Production Output: Up to 75 kg/hour
Motor: 1 HP, 1440 RPM, 3 Phase
Rotor Speed: 750 / 1500 / 2300 / 3000 RPM
Beaters: 12 knife & impact edges + 2 scrapper blades
Screen: 0.5 mm to 12 mm perforated screens

It is ideal for small batch sizes from 1 to 50 kg.

How easy is it to clean and maintain the Small Scale Multi Mill?
