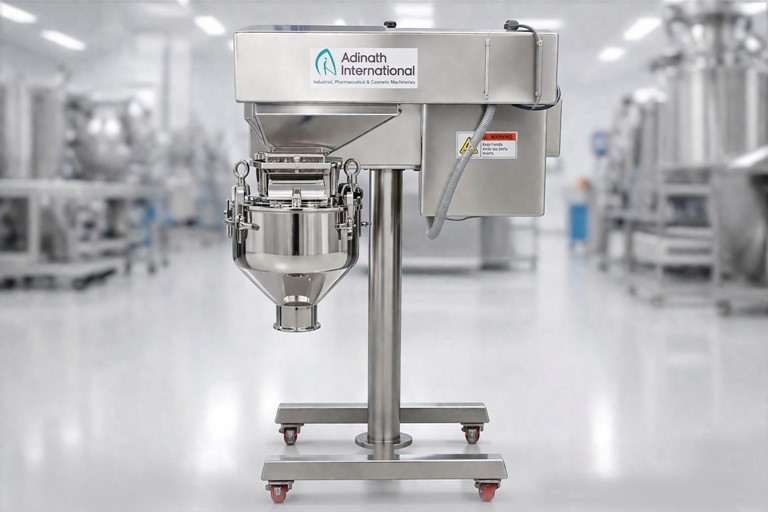

GMP Multi Mill

Q: What capacities and models are available for the GMP Multi Mill?

We offer three main models: MM-100 : Up to 100 kg/hour (1 HP) MM-200 : Up to 200 kg/hour (3 HP) MM-500 : Up to 500 kg/hour (5 HP) Rotor speeds range from 750 to 3000 RPM. Lab-scale to production-scale models are available with customizable options.

Description

GMP Multi Mill is a versatile, portable pharmaceutical machine designed for high-speed size reduction, granulation, pulverization, mixing, shredding, and chopping of wet and dry materials without specialized attachments. It adheres to Good Manufacturing Practices (GMP) standards, ensuring compliance with regulatory requirements like US-FDA, WHO-GMP, and EMA. GMP Multi Mill is ideal for industries requiring precise particle size reduction while maintaining hygiene and efficiency.

If you need details on specific models and pricing, let me know!

Salient Features of GMP Multi Mill

Compact GMP Model.
Suitable for dry and wet granules.
All contact parts are made out of SS304 quality material.
Castor wheel provided for the ease of mobility.
Sieves available in sizes of 0.5 to 12mm hole diameter.
12 numbers of beaters with knife edges & impact edges & 02 nos. scrapper blades.
In GMP Model complete body cladded with SS304 and polished to the matt finish & in Standard Model excluding product contact parts, all other parts made out of C.I. or M.S. and colored.

Machine rated for continuous operation.
Higher output with process uniformity.
All contact parts can easily be dismantled and cleaned for change of product.
Wide range of SS perforated screens available
Machine portable on castor wheels.
Reversible direction of blade rotation.
Different size of screen / speed / number of blade / directions of rotation of blade can be selected.

Working Principle of GMP Multi Mill

The GMP Multi Mill operates on the principle of variable force swing beaters with both knife and impact edges rotating at high speed within a selected perforated screen. This enables efficient size reduction, granulation, pulverization, mixing, shredding, and chopping of a wide range of wet and dry materials.

Step-by-Step Process:

Material Feeding The raw material is fed through the stainless steel hopper (with slide plate for feed rate control) into the milling/processing chamber.

Size Reduction Inside the chamber, a high-speed rotor fitted with 12 beaters (knife/impact edges) and 2 scrapper blades rotates rapidly (typically 750 to 3000 RPM). The swinging beaters subject the material to impact, shearing, cutting, and attrition forces.
- Knife edges are used for cutting and slicing.
- Impact edges (hammer action) are used for crushing and pulverizing.

Screening & Particle Separation The processed material is thrown towards the periphery and passes through the interchangeable perforated screen (available in sizes from 0.5 mm to 12 mm). Only particles that reach the desired size exit the screen radially and tangentially. Oversized particles continue to be processed until they pass through.

Discharge The finely reduced material is collected in a container or bin placed below the discharge hopper.

Technical Specification of GMP Multi Mill

Model	MM 200
Production Output	Up to 200 kgs. /Hour
Rotor assembly diameter	250 mm (approx.)
Rotor Speed	750 / 1500 / 2300 / 3000 RPM
Beaters	12 knife & impact edges & 2 scrapper blades
Screen dimensions approx.	Inner diameter – 260 mm, Height – 135 mm
Drive Motor	3 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.
Starter	DOL Starter with reversible switch
Material Charging Height	1445 mm approx.
Net Weight	250 Kgs. approx.
Gross weight	400 kgs. approx.
Overall Dimensions approx. (LXWXH)	870mm x 965mm x 1630mm
Case Dimensions approx. (LXWXH)	1200mm x 1550mm x 1860mm

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of GMP Multi Mill

High-speed processing with minimal dust.

Continuous operation suitable for production lines.

Versatile screen and blade options for varied applications.

GMP-compliant design ensures regulatory adherence and product safety.

Key Features of GMP Multi Mill

Operation: Utilizes variable force swing beaters with knife and impact edges rotating within a cylindrical screen to control particle size, producing a narrow particle size distribution with minimal heat generation, ideal for heat-sensitive materials.

Material: All product-contact parts are made of stainless steel for corrosion resistance and easy sterilization, preventing cross-contamination.

Design: Compact, noiseless, low-maintenance, with safety interlocks, emergency stops, and castor wheels for mobility. Easy disassembly ensures thorough cleaning.

Capacity: Output ranges from 50-200 kg/hour, depending on the model, with screen sizes from 0.5-12 mm hole diameters.

FAQ for GMP Multi Mill

What is a GMP Multi Mill and what is it used for?

The GMP Multi Mill is a versatile, high-speed size reduction machine designed for granulating, pulverizing, mixing, shredding, and chopping of both wet and dry materials. It is widely used in the Pharmaceutical, Ayurvedic, Herbal, Nutraceutical, Biotech, and Cosmetic industries for achieving uniform particle size distribution of APIs, excipients, granules, and herbal powders. It helps improve flowability, dissolution rate, and blend uniformity while meeting strict cGMP, US-FDA, and WHO-GMP standards.

How does the GMP Multi Mill work?

Material is fed through the stainless steel hopper into the milling chamber. A high-speed rotor with swing-type beaters (knife and impact edges) and scraper blades subjects the material to impact, shearing, cutting, and attrition forces. The processed particles pass through interchangeable perforated screens (0.5 mm to 12 mm). Oversized particles continue to be milled until they achieve the desired size. The rotor direction is reversible for optimized performance.

What are the key advantages of the GMP Multi Mill?

High output with excellent process uniformity
Versatile for wet and dry granulation with minimal heat generation
Easy cleaning and quick product changeover
Compact, portable design on castor wheels
Full cGMP compliance with SS 304/SS 316 contact parts
Reversible blade rotation and variable speed for precise control
Low maintenance and suitable for heat-sensitive materials.

What capacities and models are available for the GMP Multi Mill?

We offer three main models:

MM-100: Up to 100 kg/hour (1 HP)
MM-200: Up to 200 kg/hour (3 HP)
MM-500: Up to 500 kg/hour (5 HP)

Rotor speeds range from 750 to 3000 RPM. Lab-scale to production-scale models are available with customizable options.

How easy is it to clean and maintain the GMP Multi Mill?

The machine is designed for easy disassembly — all contact parts (hopper, screen, beaters, and discharge) can be quickly removed without tools. Mirror-polished stainless steel surfaces and the absence of dead corners minimize residue. This supports fast cleaning, sterilization, and frequent product changeovers while ensuring full GMP compliance.
