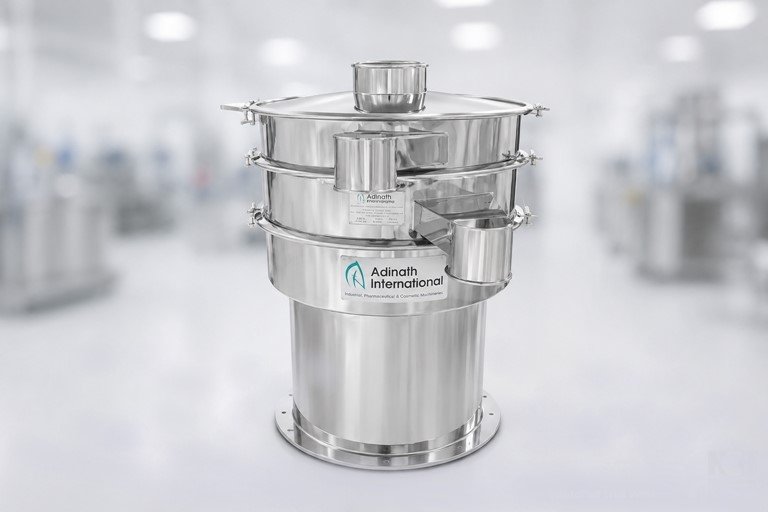

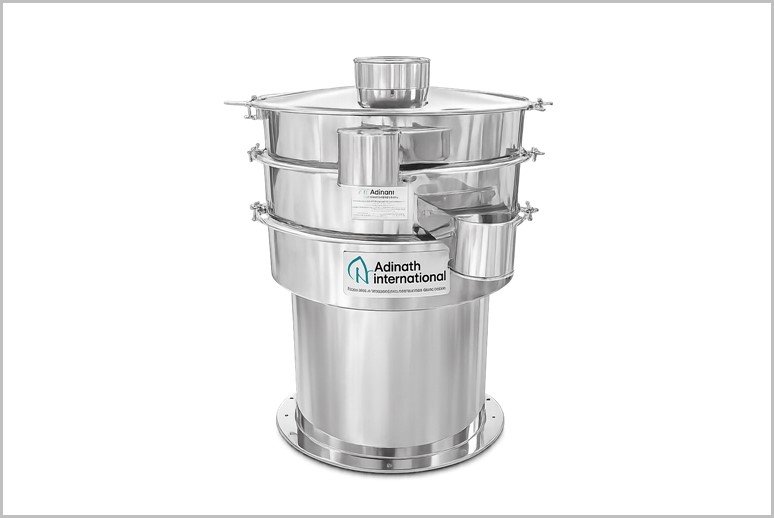

A Vibro Sifter (also known as a vibro screen, vibrating sifter, vibratory sieve, or gyro screen) is a circular gyratory screening machine used to separate materials based on particle size. It efficiently grades, sieves, and removes impurities from powders, granules, liquids, or slurries.
It is widely used in industries requiring precise particle separation, such as pharmaceuticals (GMP-compliant models), food processing, chemicals, ceramics, plastics, and minerals.
Vibro Sifter Video
Key Applications
-
Pharmaceuticals: Sieving powders/granules for tablet/capsule production, ensuring uniform particle size and removing lumps/contaminants.
-
Food & Beverages: Grading flour, sugar, spices, tea, or dairy products; de-dusting and separating.
-
Chemicals: Screening pigments, fertilizers, or resins.
-
Other Industries: Ceramics, minerals, plastics, and recycling.
It handles capacities from 100–5000 kg/hour, mesh sizes from 4–500 (down to 36 microns), and is often made of stainless steel for hygiene.
Features and Advantages
-
Portable, compact, and low-maintenance.
-
Noiseless with dust-tight covers.
-
Easy screen changes and cleaning (GMP-compliant models available).
-
Higher efficiency than conventional sieves due to multi-plane vibration.
Salient Features of Vibro Sifter
-
Compact GMP Model.
-
Stainless steel GMP construction with SS 304/SS 316 contact parts
-
Fitted with Vibro Motor
-
Provided lid for dust free operation.
-
Easy to clean and movable machine.
-
Provided sieve with silicon sealing.
-
Low operating and maintenance cost.
-
Long screen life.
-
Easy for assembly & de-assembly for cleaning & changeover of screens.
-
Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost.
-
Available in 20″ Dia, 30″ Dia, 36 dia. 48″ dia., 60″ Dia size sieve model
-
IQ/OQ documentation can be provided.
-
PLC system with Graphical User Interface can be offered.
Process Operation of Vibro Sifter Vibratory Sieve
This vibrating energy screen is unit consisting of circular pre-tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.
Technical Specification of Vibro Sifter
|
Model |
AVS-20 | AVS-24 | AVS-30 | AVS-36 | AVS-48 |
| Output kgs. /Hour approx. | 20 to 70 kg | 20 to 140 kg | 30 to 250 kg | 80 to 300 kg |
200 to 400 kg |
|
Screens MOC |
SS 316 / 304 | SS 316 / 304 | SS 316 / 304 | SS 316 / 304 | SS 316 / 304 |
| Screen Diameter approx. | 335mm | 520mm | 750mm | 950mm |
1220mm |
|
Charging Height approx. |
1080 mm | 1200 mm | 1200 mm | 1200 mm | 1050 mm |
| Discharging Height approx. | 625 mm | 750 mm | 750 mm | 750 mm |
500 mm |
|
Electric Motor |
0.25 H.P. | 0.25 H.P. | 0.5 H.P. | 0.5 H.P. | 1.5 H.P. |
| Net Weight approx. | 70 Kgs. | 150 Kgs. | 170 Kgs. | 200 Kgs. |
225 Kgs. |
|
Machine Dimension approx. (LxWxH) |
750x750x1080 | 1120x1120X1200 | 1360x1360x1200 | 1550x1550X1200 | 1950x1950X1050 |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
